1430-16 Series

Manufacturer: CNC Tech

Catalog

HOOK-UP STRND 16AWG BLU 250'

Part	Conductor Material	Jacket (Insulation) Material	Length	Length	Ratings	Conductor Strand	Conductor Strand [custom]	Jacket Color	Features	Voltage	Wire Gauge	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]

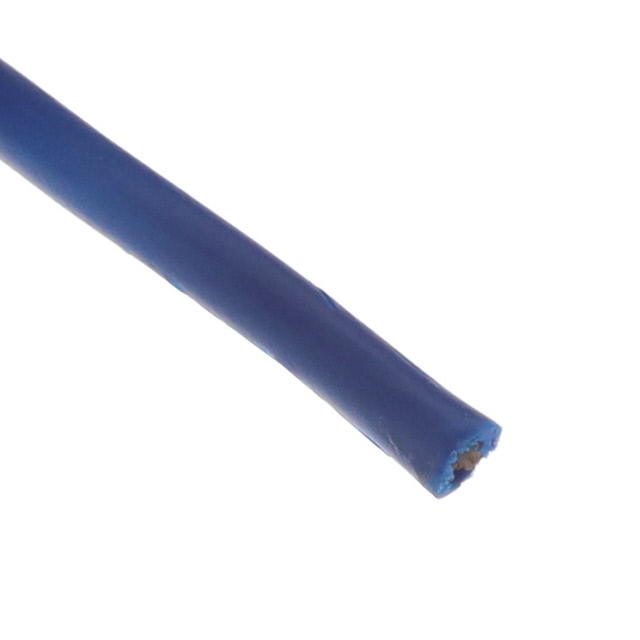

CNC Tech 1430-16-1-0500-005-1-TS	Copper Tinned	Poly-Vinyl Chloride (XLPVC)	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	UL Style 1430	0.01 in	26	Blue	Oil Resistant	300 VDC	16 AWG	25 ft 100 ft	7.62 m 30.5 m	2.41 mm	0.095 in	0.41 mm	0.016 in	Hook-Up	-10 °C	105 ░C
CNC Tech 1430-16-1-0500-011-1-TS	Copper Tinned	Poly-Vinyl Chloride (XLPVC)	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	UL Style 1430	0.01 in	26	Green Yellow	Oil Resistant	300 VDC	16 AWG	25 ft 100 ft	7.62 m 30.5 m	2.41 mm	0.095 in	0.41 mm	0.016 in	Hook-Up	-10 °C	105 ░C

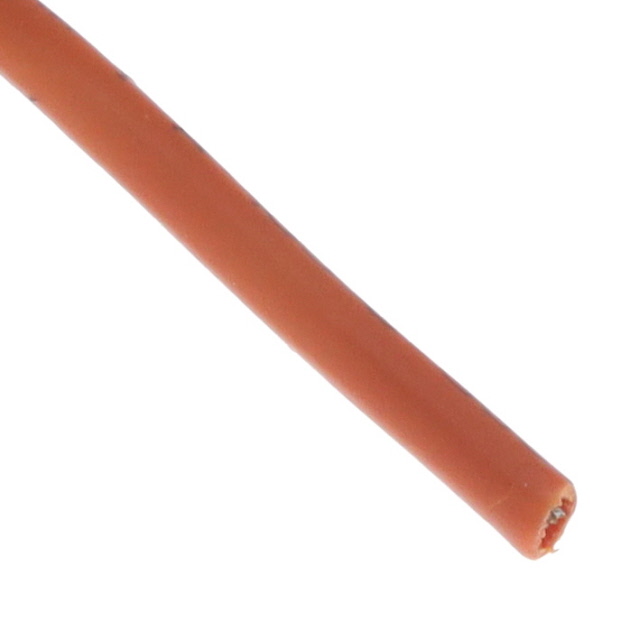

CNC Tech 1430-16-1-0500-008-1-TS	Copper Tinned	Poly-Vinyl Chloride (XLPVC)	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	UL Style 1430	0.01 in	26	Orange	Oil Resistant	300 VDC	16 AWG	25 ft 100 ft	7.62 m 30.5 m	2.41 mm	0.095 in	0.41 mm	0.016 in	Hook-Up	-10 °C	105 ░C

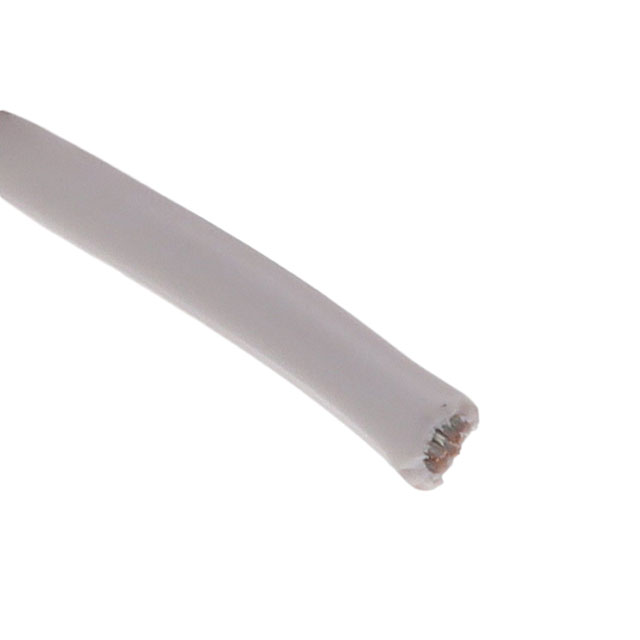

CNC Tech 1430-16-1-0500-002-1-TS	Copper Tinned	Poly-Vinyl Chloride (XLPVC)	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	UL Style 1430	0.01 in	26	White White (Off-White/Pink Tone)	Oil Resistant	300 VDC	16 AWG	25 ft 100 ft	7.62 m 30.5 m	2.41 mm	0.095 in	0.41 mm	0.016 in	Hook-Up	-10 °C	105 ░C

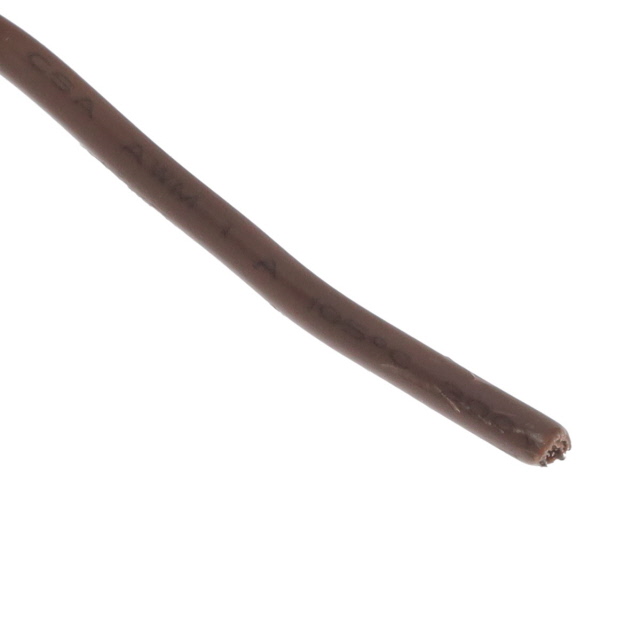

CNC Tech 1430-16-1-0500-006-1-TS	Copper Tinned	Poly-Vinyl Chloride (XLPVC)	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	UL Style 1430	0.01 in	26	Brown	Oil Resistant	300 VDC	16 AWG	25 ft 100 ft	7.62 m 30.5 m	2.41 mm	0.095 in	0.41 mm	0.016 in	Hook-Up	-10 °C	105 ░C

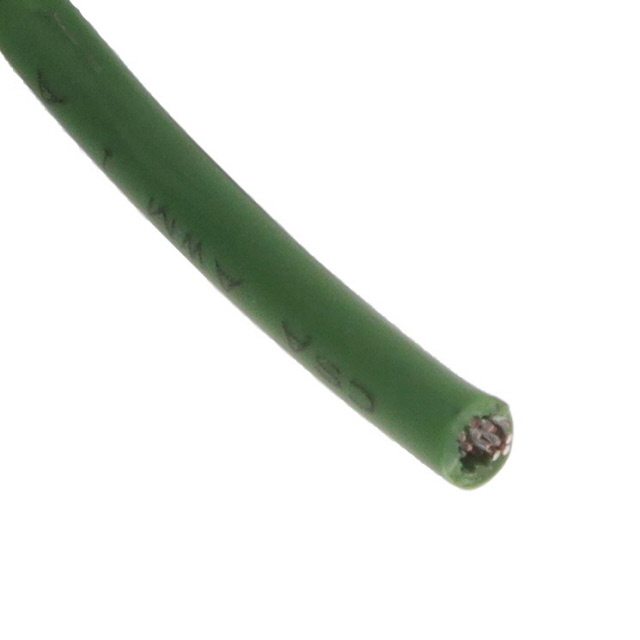

CNC Tech 1430-16-1-0500-007-1-TS	Copper Tinned	Poly-Vinyl Chloride (XLPVC)	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	UL Style 1430	0.01 in	26	Green	Oil Resistant	300 VDC	16 AWG	25 ft 100 ft	7.62 m 30.5 m	2.41 mm	0.095 in	0.41 mm	0.016 in	Hook-Up	-10 °C	105 ░C
CNC Tech 1430-16-1-0500-001-1-TS	Copper Tinned	Poly-Vinyl Chloride (XLPVC)	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	UL Style 1430	0.01 in	26	Black	Oil Resistant	300 VDC	16 AWG	25 ft 100 ft	7.62 m 30.5 m	2.41 mm	0.095 in	0.41 mm	0.016 in	Hook-Up	-10 °C	105 ░C

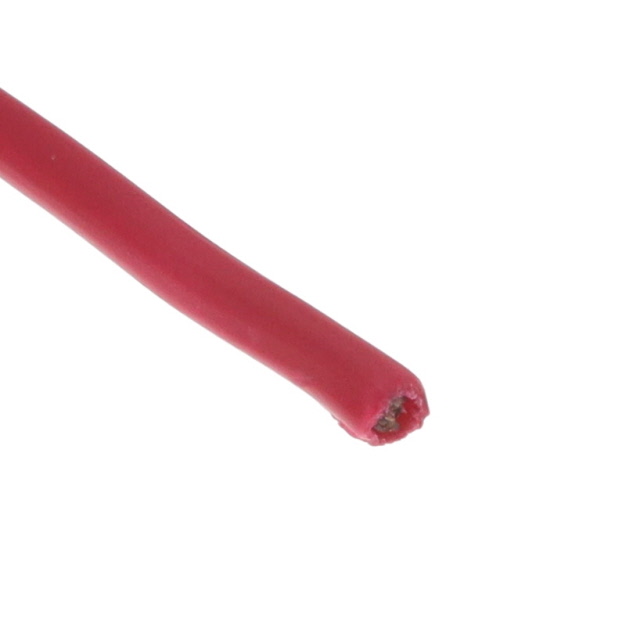

CNC Tech 1430-16-1-0500-004-1-TS	Copper Tinned	Poly-Vinyl Chloride (XLPVC)	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	UL Style 1430	0.01 in	26	Red	Oil Resistant	300 VDC	16 AWG	25 ft 100 ft	7.62 m 30.5 m	2.41 mm	0.095 in	0.41 mm	0.016 in	Hook-Up	-10 °C	105 ░C
CNC Tech 1430-16-1-0500-010-1-TS	Copper Tinned	Poly-Vinyl Chloride (XLPVC)	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	UL Style 1430	0.01 in	26	Violet	Oil Resistant	300 VDC	16 AWG	25 ft 100 ft	7.62 m 30.5 m	2.41 mm	0.095 in	0.41 mm	0.016 in	Hook-Up	-10 °C	105 ░C
CNC Tech 1430-16-1-0500-003-1-TS	Copper Tinned	Poly-Vinyl Chloride (XLPVC)	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	UL Style 1430	0.01 in	26	Yellow	Oil Resistant	300 VDC	16 AWG	25 ft 100 ft	7.62 m 30.5 m	2.41 mm	0.095 in	0.41 mm	0.016 in	Hook-Up	-10 °C	105 ░C
