8C1011 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH TOGGLE SPDT 6A 125V
| Part | Electrical Life | Features | Actuator Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Bushing Thread | Voltage Rating - AC | Circuit | Current Rating (Amps) | Switch Function | Panel Cutout Dimensions [diameter] | Mounting Type | Termination Style | Actuator Type | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

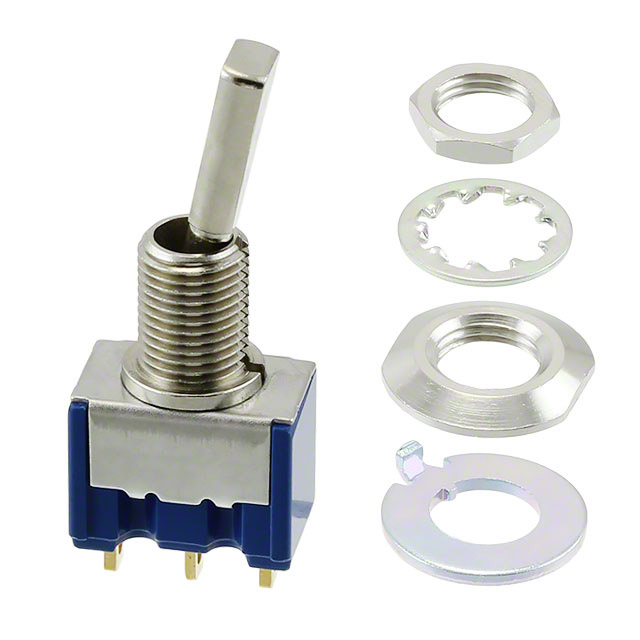

 Nidec Components Corporation | 50000 Cycles | Sealed - Flux Protection | 11.4 mm | 85 °C | -30 ░C | 30 V | 1/4-40 | 125 V | SPDT | 4 A 6 A | On-On | 6.5 mm | Panel Mount | Solder Lug | Flat Anti-Rotation | Non-Illuminated |

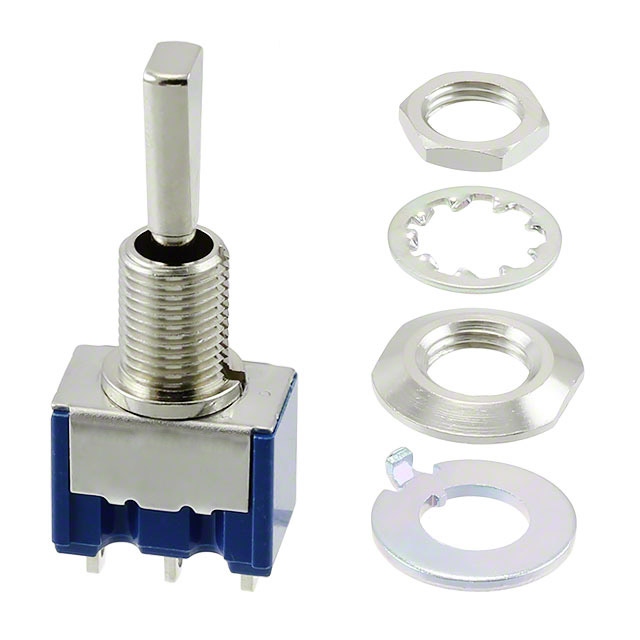

 Nidec Components Corporation | 50000 Cycles | Sealed - Flux Protection | 11.4 mm | 85 °C | -20 ░C | 20 V | 1/4-40 | SPDT | 25 mA | On-On | 6.5 mm | Panel Mount | Solder Lug | Flat Anti-Rotation | Non-Illuminated |
