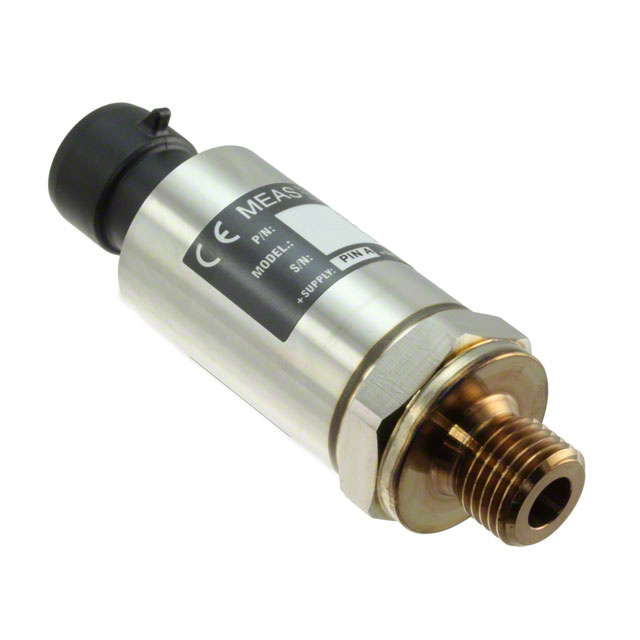

MEAS M5200 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

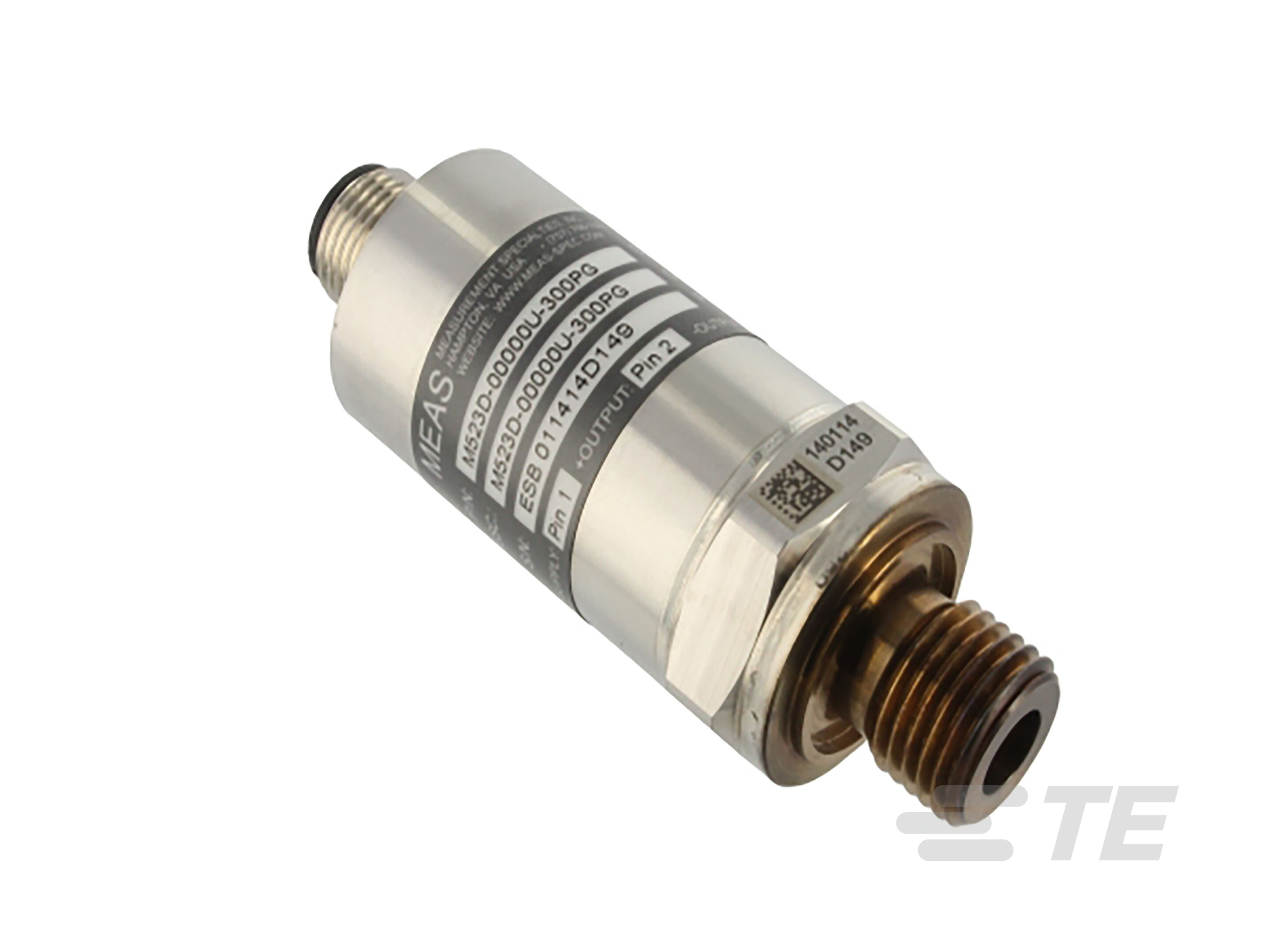

PRESS XDCR M5254-000005-300PG
| Part | Port Style | Operating Temperature [Max] | Operating Temperature [Min] | Pressure Type | Package / Case | Maximum Pressure [Max] | Maximum Pressure [Max] | Output [Min] | Output [Max] | Port Size | Port Size | Port Size | Features | Accuracy | Operating Pressure | Operating Pressure | Applications | Termination Style | Voltage - Supply [Min] | Voltage - Supply [Max] | Output Type | Maximum Pressure | Maximum Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Threaded | 125 °C | -40 C | Vented Gauge | Cylinder | 4136.85 kPa | 600 PSI | 4 mA | 20 mA | Male NPT | 0.25 " | 0.25 in | Temperature Compensated | 0.25 % | 300 PSI | 2068.43 kPa | Industrial Automation | Connector | 9 V | 30 VDC | Analog Current | ||
 TE Connectivity AMP Connectors | Threaded | 125 °C | -40 C | Vented Gauge | Cylinder | 68947.57 kPa | 10000 PSI | 1 V | 5 V | Male NPT | 0.25 " | 0.25 in | Temperature Compensated | 0.25 % | 5000 PSI | 34473.79 kPa | Industrial Automation | Connector | 8 V | 30 VDC | Analog Voltage | ||
TE Connectivity AMP Connectors | Threaded | 125 °C | -40 C | Vented Gauge | Cylinder | 1 V | 5 V | BSPP Male | 0.25 " | 0.25 in | Temperature Compensated | 0.25 % | 1015.26 PSI | 7000 kPa | Industrial Automation | Connector | 8 V | 30 VDC | Analog Voltage | 2030.53 PSI | 14000 kPa | ||
 TE Connectivity AMP Connectors | Threaded | 125 °C | -40 C | Gauge | Cylinder Threaded | 4 mA | 20 mA | BSPT Male | 0.25 in | Temperature Compensated | 0.25 % | 87.02 PSI | 6 bar | Industrial Automation | Connector | 9 V | 30 VDC | Analog Current | 1740.45 PSI | 12000 kPa | |||
TE Connectivity AMP Connectors | Threaded | 125 °C | -40 C | Vented Gauge | Cylinder | 10152.64 PSI | 1 V | 5 V | BSPP Male | 0.25 " | 0.25 in | Temperature Compensated | 0.25 % | 5076.32 PSI | 35000 kPa | Industrial Automation | Connector | 8 V | 30 VDC | Analog Voltage | 70000 kPa | ||
 TE Connectivity AMP Connectors | Threaded | 125 °C | -40 C | Vented Gauge | Cylinder | 4 mA | 20 mA | BSPP Male | 0.25 " | 0.25 in | Temperature Compensated | 0.25 % | 290.08 PSI | 2000 kPa | Industrial Automation | Connector | 9 V | 30 VDC | Analog Current | 580.15 PSI | 4000 kPa | ||
TE Connectivity AMP Connectors | Threaded | 125 °C | -40 C | Vented Gauge | Cylinder | 4136.85 kPa | 600 PSI | 1 V | 5 V | Male NPT | 0.25 " | 0.25 in | Temperature Compensated | 0.25 % | 300 PSI | 2068.43 kPa | Industrial Automation | Connector | 8 V | 30 VDC | Analog Voltage | ||
TE Connectivity AMP Connectors | Threaded | 125 °C | -40 C | Vented Gauge | Cylinder | 2000 PSI | 1 V | 5 V | Male NPT | 0.25 " | 0.25 in | Temperature Compensated | 0.25 % | 1000 PSI | 6894.76 kPa | Industrial Automation | Connector | 8 V | 30 VDC | Analog Voltage | 13789.51 kPa | ||
TE Connectivity AMP Connectors | Threaded | 125 °C | -40 C | Vented Gauge | Cylinder | 10152.64 PSI | 4 mA | 20 mA | BSPP Male | 0.25 " | 0.25 in | Temperature Compensated | 0.25 % | 5076.32 PSI | 35000 kPa | Industrial Automation | Connector | 9 V | 30 VDC | Analog Current | 70000 kPa | ||
TE Connectivity AMP Connectors | Threaded | 125 °C | -40 C | Vented Gauge | Cylinder | 2000 PSI | 4 mA | 20 mA | Male NPT | 0.25 " | 0.25 in | Temperature Compensated | 0.25 % | 1000 PSI | 6894.76 kPa | Industrial Automation | Connector | 9 V | 30 VDC | Analog Current | 13789.51 kPa |
