1546477 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

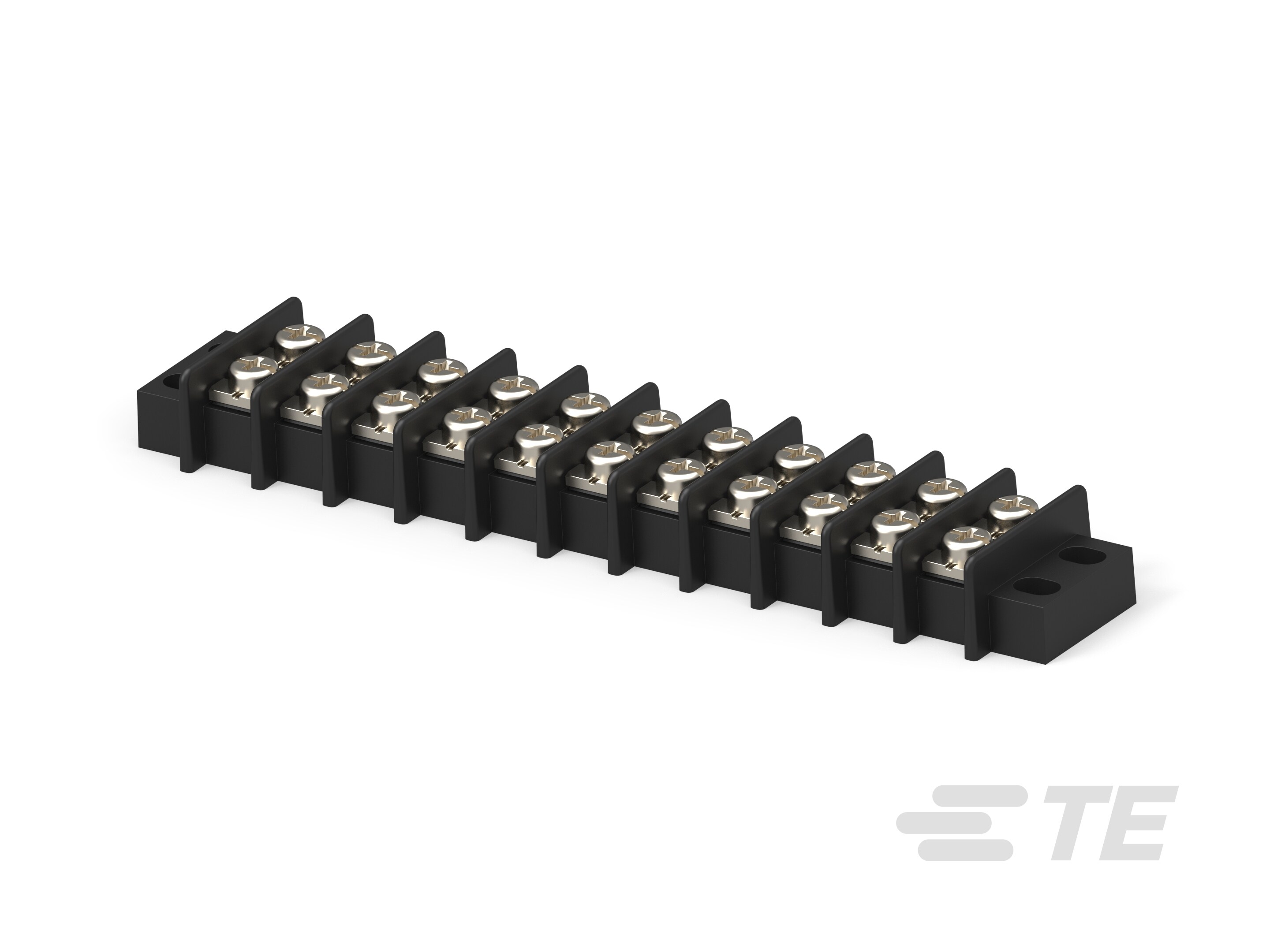

11P.433" DR BARRIER,W/WASHER

Part	Bottom Termination	Mounting Type	Barrier Type	Terminal Screw Finish	Features	Number of Wire Entries [custom]	Number of Circuits	Material - Insulation	Material Flammability Rating	Terminal Block Type	Terminal Screw Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Current Rating (Amps)	Color	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Top Termination	Number of Rows	Number of Wire Entries
TE Connectivity Raychem Cable Protection 1-1546477-1	Closed	Chassis Panel	2 Wall (Dual)	Nickel	Flange	22	11	Thermoplastic	UL94 V-0	Barrier Block	Steel	-40 °C	120 °C	300 VDC	25 A	Black	11 mm	0.433 in	14 AWG	22 AWG	Screws with Captive Plate	2
TE Connectivity Raychem Cable Protection 1-1546477-2	Closed	Chassis Panel	2 Wall (Dual)	Nickel	Flange		12	Thermoplastic	UL94 V-0	Barrier Block	Steel	-40 °C	120 °C	300 VDC	25 A	Black	11 mm	0.433 in	14 AWG	22 AWG	Screws with Captive Plate	2

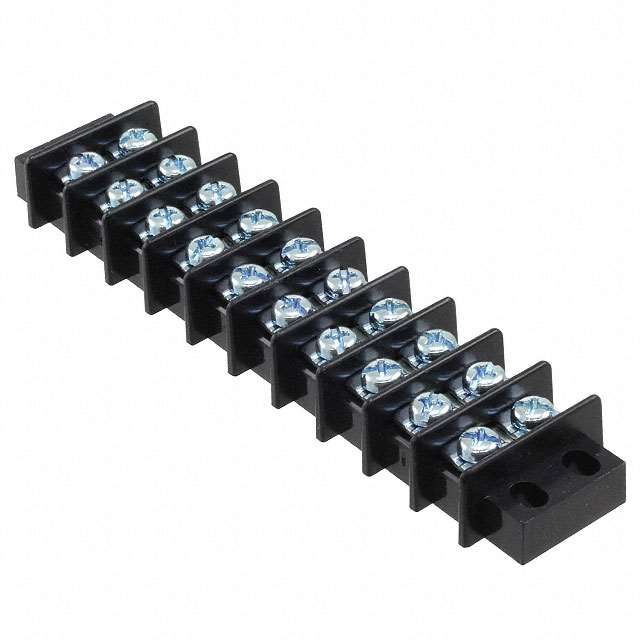

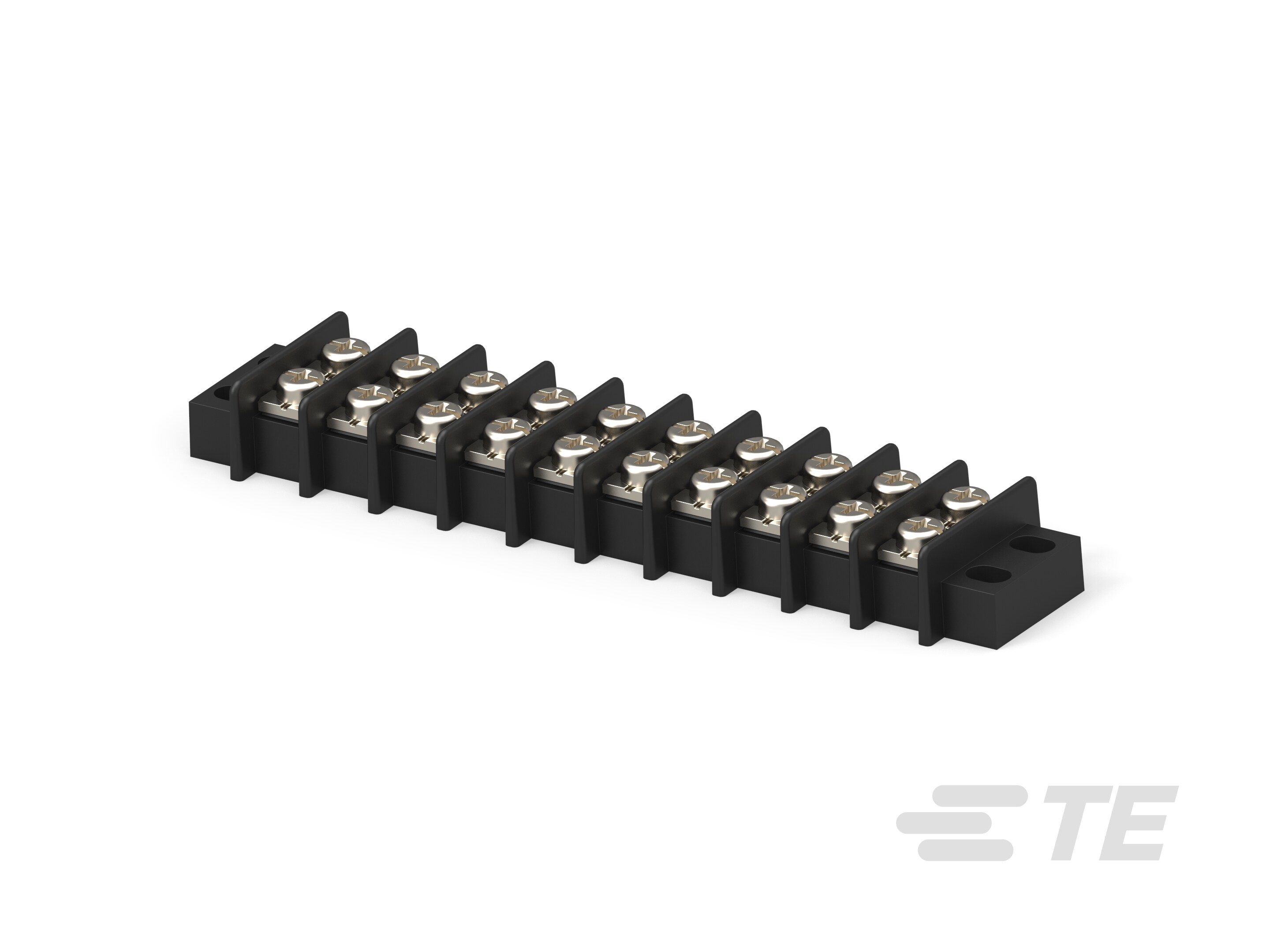

TE Connectivity Raychem Cable Protection 1-1546477-0	Closed	Chassis Panel	2 Wall (Dual)	Nickel	Flange		10	Thermoplastic	UL94 V-0	Barrier Block	Steel	-40 °C	120 °C	300 VDC	25 A	Black	11 mm	0.433 in	14 AWG	22 AWG	Screws with Captive Plate	2	20
TE Connectivity Raychem Cable Protection 1546477-6	Closed	Chassis Panel	2 Wall (Dual)	Nickel	Flange		6	Thermoplastic	UL94 V-0	Barrier Block	Steel	-40 °C	120 °C	300 VDC	25 A	Black	11 mm	0.433 in	14 AWG	22 AWG	Screws with Captive Plate	2	12
TE Connectivity Raychem Cable Protection 1-1546477-6	Closed	Chassis Panel	2 Wall (Dual)	Nickel	Flange		16	Thermoplastic	UL94 V-0	Barrier Block	Steel	-40 °C	120 °C	300 VDC	25 A	Black	11 mm	0.433 in	14 AWG	22 AWG	Screws with Captive Plate	2	32
TE Connectivity Raychem Cable Protection 1546477-7	Closed	Chassis Panel	2 Wall (Dual)	Nickel	Flange		7	Thermoplastic	UL94 V-0	Barrier Block	Steel	-40 °C	120 °C	300 VDC	25 A	Black	11 mm	0.433 in	14 AWG	22 AWG	Screws with Captive Plate	2	14
