A-DF 09 Series
Manufacturer: Assmann WSW Components
Beta
⌘K
CONN D-SUB RCPT 9POS R/A SLDR
| Part | Color | Dielectric Material | Contact Material | Flange Feature | Contact Finish | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Rows [custom] | Backset Spacing | Backset Spacing | Termination | Connector Type | Ingress Protection | Mounting Type | Connector Style | Number of Positions | Wire Gauge [Max] | Wire Gauge [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Current Rating (Amps) | Material Flammability Rating | Contact Finish Thickness | Shell Material, Finish | Features | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

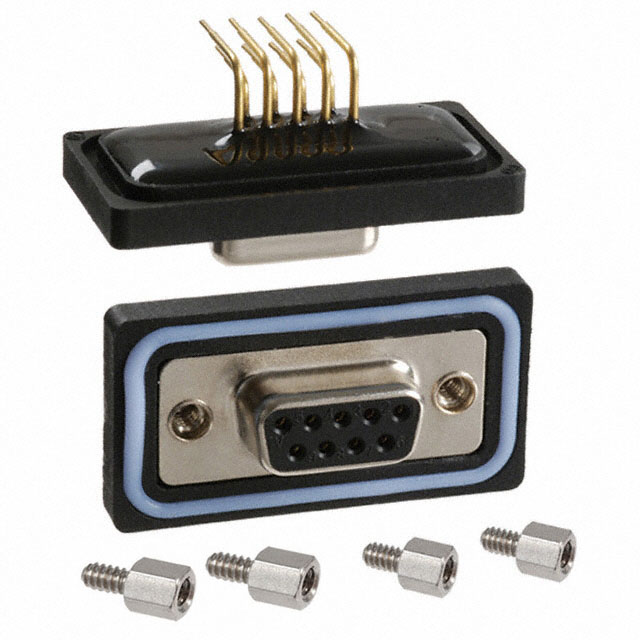

 Assmann WSW Components | Black | Glass Filled Nylon Polyamide (PA) | Copper Alloy | Female Screwlock Mating Side | Gold | Signal | 1 | DE E | 2 | 0.244 in | 6.2 mm | Solder | Receptacle Female Sockets | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | D-Sub | 9 | |||||||||||
 Assmann WSW Components | Black | Glass Filled Nylon Polyamide (PA) | Copper Alloy | Female Screwlock Mating Side | Gold | Signal | 1 | DE E | 2 | Receptacle Female Sockets | IP67 - Dust Tight Waterproof | Panel Mount | D-Sub | 9 | 26 AWG | 22 AWG | ||||||||||||
 Assmann WSW Components | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Housing/Shell (Unthreaded) | Gold | Signal | 1 | DE E | 2 | Solder | Receptacle Female Sockets | Through Hole | D-Sub | 9 | -55 C | 105 ░C | 250 VAC | 3 A | UL94 V-0 | Flash | ||||||||
 Assmann WSW Components | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Housing/Shell (Unthreaded) | Gold | Signal | 1 | DE E | 2 | Solder | Receptacle Female Sockets | Through Hole | D-Sub | 9 | -20 ░C | 85 °C | 250 V | 3 A | UL94 V-0 | Flash | Steel | Filter | ||||||
 Assmann WSW Components | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Housing/Shell | Gold | Signal | 1 | DE E | 2 | 0.319 in | 8.1 mm | Solder | Receptacle Female Sockets | Right Angle Through Hole | D-Sub | 9 | -20 ░C | 85 °C | 250 V | 3 A | UL94 V-0 | Flash | Board Lock Filter | 4-40 | ||||
 Assmann WSW Components | White | Polybutylene Terephthalate (PBT) Glass Filled | Brass | Housing/Shell (Unthreaded) | Gold | Signal | 1 | DE E | 2 | Receptacle Female Sockets | Free Hanging (In-Line) | D-Sub | 9 | -55 C | 105 ░C | 250 V | 3 A | UL94 V-0 | Flash | Steel |
