CII HMS Relay Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

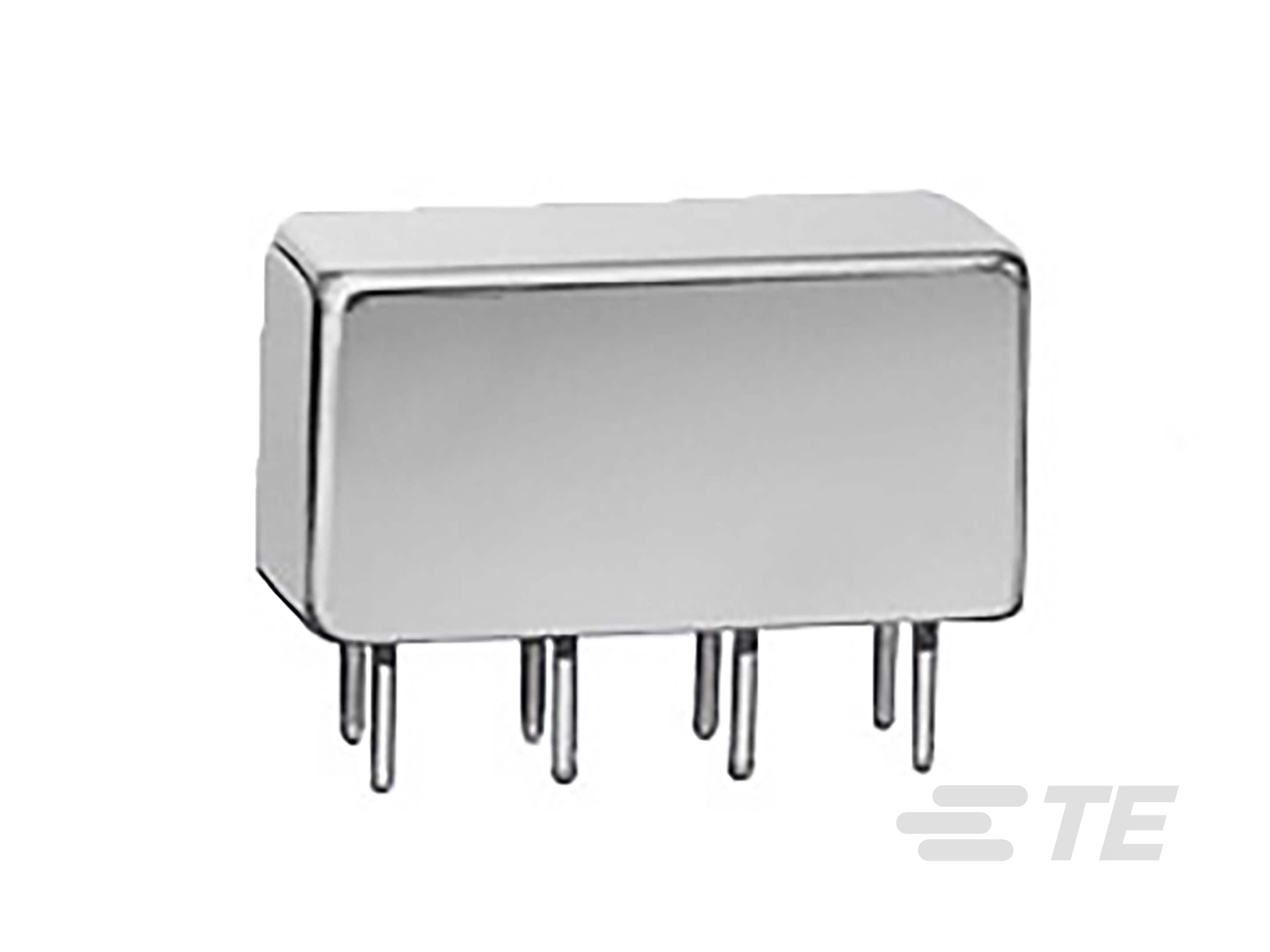

RELAY GEN PURPOSE DPDT 2A 12V
| Part | Mounting Type | Contact Form | Contact Rating (Current) | Operating Temperature [Min] | Operating Temperature [Max] | Coil Voltage | Operate Time | Must Operate Voltage | Termination Style | Release Time | Relay Type | Coil Type | Coil Current | Contact Material | Seal Rating | Must Release Voltage | Switching Voltage | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Through Hole | DPDT (2 Form C) | 2 A | -65 ░C | 125 °C | 12 VDC | 6 ms | 5.6 VDC | PC Pin | 5 ms | General Purpose | Non Latching | 38.4 mA | Gold (Au) Silver (Ag) | Sealed - Hermetically | |||
TE Connectivity AMP Connectors | Chassis Mount | DPDT (2 Form C) | 2 A | -65 ░C | 125 °C | 5 VDC | 6 ms | Solder Hook | 5 ms | General Purpose | Non Latching | 106.4 mA | Gold (Au) Silver (Ag) | Sealed - Hermetically | 0.21 VDC | |||
TE Connectivity AMP Connectors | Chassis Mount | DPDT (2 Form C) | 2 A | -65 ░C | 125 °C | 12 VDC | 6 ms | 5.6 VDC | PC Pin | 5 ms | General Purpose | Non Latching | 38.4 mA | Gold (Au) Silver (Ag) | Sealed - Hermetically | 0.6 VDC | ||
TE Connectivity AMP Connectors | Through Hole | DPDT (2 Form C) | 2 A | -65 ░C | 125 °C | 5 VDC | 6 ms | PC Pin | 5 ms | General Purpose | Non Latching | 106.4 mA | Gold (Au) Silver (Ag) | Sealed - Hermetically | 0.21 VDC | |||
 TE Connectivity AMP Connectors | Through Hole | DPDT (2 Form C) | 2 A | -65 ░C | 125 °C | 26.5 VDC | 6 ms | 11.4 VDC | PC Pin | 5 ms | General Purpose | Non Latching | 25.7 mA | Gold (Au) Silver (Ag) | Sealed - Hermetically | 1.1 VDC | 28 VDC | |
 TE Connectivity AMP Connectors | Chassis Mount | DPDT (2 Form C) | 2 A | -65 ░C | 125 °C | 12 VDC | 6 ms | 5.6 VDC | Solder Hook | 5 ms | General Purpose | Non Latching | 38.4 mA | Gold (Au) Silver (Ag) | Sealed - Hermetically | 310 Ohms | ||
TE Connectivity AMP Connectors | Through Hole | DPDT (2 Form C) | 2 A | -65 ░C | 125 °C | 36 VDC | 6 ms | 18 VDC | PC Pin | 5 ms | General Purpose | Non Latching | Gold (Au) Silver (Ag) | Sealed - Hermetically | 1.8 VDC | |||
TE Connectivity AMP Connectors | Chassis Mount | DPDT (2 Form C) | 2 A | -65 ░C | 125 °C | 26.5 VDC | 6 ms | 11.4 VDC | Solder Hook | 5 ms | General Purpose | Non Latching | 25.7 mA | Gold (Au) Silver (Ag) | Sealed - Hermetically | |||
TE Connectivity AMP Connectors | Chassis Mount | DPDT (2 Form C) | 2 A | -65 ░C | 125 °C | 26.5 VDC | 6 ms | 11.4 VDC | Solder Hook | 5 ms | General Purpose | Non Latching | 25.7 mA | Gold (Au) Silver (Ag) | Sealed - Hermetically | 1030 Ohms |
