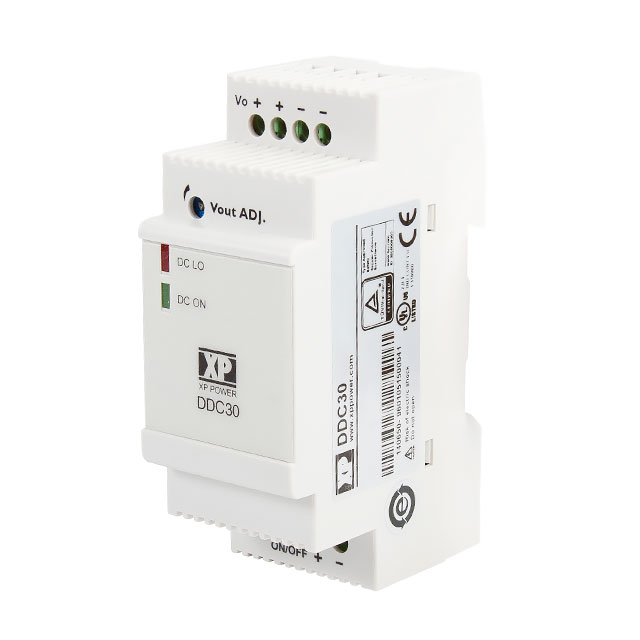

DDC3024 Series

Manufacturer: XP Power

Catalog

ISOLATED DIN RAIL MOUNT DC/DC CONVERTER, ITE, 4:1, 22.5 W, 1 OUTPUT, 5 V, 4.5 A

Part	Power (Watts)	Number of Outputs	Voltage - Output 1	Efficiency	Standard Number	DC Voltage - Input (Min) [Min]	Approval Agency	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	DC Voltage - Input (Max) [Max]	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]
XP Power DDC3024S05	30 Watts	1	5 V	81 %	62368-1	9 V	CB	ITE (Commercial)	56.4 mm	3.58 in	35 mm	2.22 "	91 mm	1.38 in	36 V	DC	70 °C	-40 C	4.5 A
XP Power DDC3024S15	30 Watts	1	15 V	84 %	62368-1	9 V	CB	ITE (Commercial)	56.4 mm	3.58 in	35 mm	2.22 "	91 mm	1.38 in	36 V	DC	70 °C	-40 C	2 A
XP Power DDC3024S09	30 Watts	1	9 V		62368-1	9 V	CB	ITE (Commercial)	56.4 mm	3.58 in	35 mm	2.22 "	91 mm	1.38 in	36 V	DC	70 °C	-40 C	2.8 A
XP Power DDC3024S12	30 Watts	1	12 V	83 %	62368-1	9 V	CB	ITE (Commercial)	56.4 mm	3.58 in	35 mm	2.22 "	91 mm	1.38 in	36 V	DC	70 °C	-40 C	2.5 A
XP Power DDC3024S24	30 Watts	1	24 V	85 %	62368-1	9 V	CB	ITE (Commercial)	56.4 mm	3.58 in	35 mm	2.22 "	91 mm	1.38 in	36 V	DC	70 °C	-40 C	1.25 A
