THJ Series

Catalog

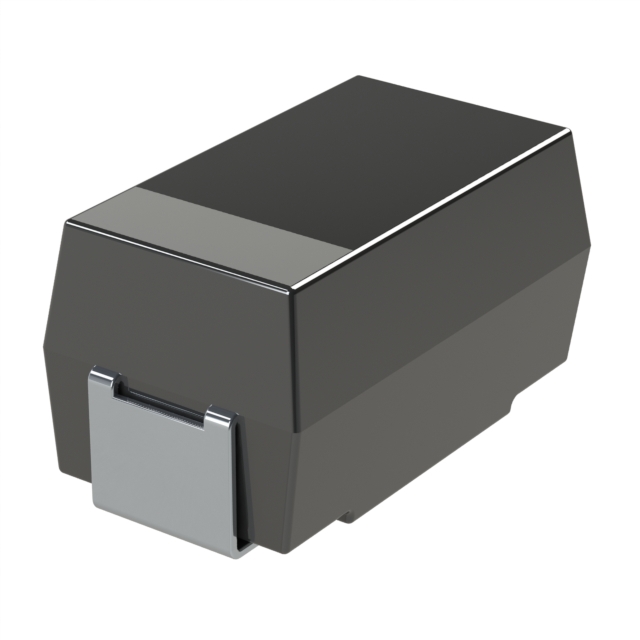

TANTALUM CHIP & RADIAL / TANTALUM CHIPS ROHS COMPLIANT: YES

Part	Voltage - Rated	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Mounting Type	Manufacturer Size Code	ESR (Equivalent Series Resistance)	Grade	Ratings	Qualification	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KYOCERA AVX THJD226M035SJN	35 V	Automotive	0.122 in	3.1 mm	22 µF	Molded	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)	175 °C	-55 C	20 %	Surface Mount	D	600 mOhm	Automotive	AEC-Q200	AEC-Q200
KYOCERA AVX THJC335K035RJN	35 V	Automotive			3.3 µF	Molded	0.126 in	6 mm	0.236 in	3.2 mm	2312 (6032 Metric)	175 °C	-55 C	10 %	Surface Mount		2.5 Ohm	Automotive	AEC-Q200	AEC-Q200
KYOCERA AVX THJD226M025RJN	25 VDC	Automotive	0.122 in	3.1 mm	22 µF	Molded	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)	175 °C	-55 C	20 %	Surface Mount	D	900 mOhm	Automotive	AEC-Q200	AEC-Q200
KYOCERA AVX THJD226K035AJN	35 V	Automotive	0.122 in	3.1 mm	22 µF	Molded	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)	175 °C	-55 C	10 %	Surface Mount	D	300 mOhm	Automotive	AEC-Q200	AEC-Q200
KYOCERA AVX THJD686M016BJN	16 V	Automotive	0.122 in	3.1 mm	68 µF	Molded	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)	175 °C	-55 C	20 %	Surface Mount	D	900 mOhm	Automotive	AEC-Q200	AEC-Q200
KYOCERA AVX THJE336K035HJN	35 V	Automotive			33 ÁF	Molded	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)	175 °C	-55 C	10 %	Surface Mount	E	500 mOhm	Automotive	AEC-Q200	AEC-Q200	0.169 in	4.3 mm
KYOCERA AVX THJD226K035A0300	35 V	Automotive	0.122 in	3.1 mm	22 µF	Molded	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)	175 °C	-55 C	10 %	Surface Mount	D	600 mOhm	Automotive	AEC-Q200	AEC-Q200
KYOCERA AVX THJC476M010RJN	10 V	Automotive			47 µF	Molded	0.126 in	6 mm	0.236 in	3.2 mm	2312 (6032 Metric)	175 °C	-55 C	20 %	Surface Mount		500 mOhm	Automotive	AEC-Q200	AEC-Q200
