REA Series

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED ALUMINUM RADIAL

Part	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max)	Capacitance	Voltage - Rated	Tolerance	Polarization	Applications	Ripple Current @ High Frequency	Mounting Type	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Size / Dimension	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]
KYOCERA AVX REA05114R7M100K	40 mA	0.472 in	12 mm	4.7 µF	100 V	20 %	Polar	General Purpose	64 mA	Through Hole	3000 Hrs	-40 C	105 ░C	Can Radial	0.197 in	5 mm	2 mm	0.079 in
KYOCERA AVX REA1016331M035K	420 mA			330 µF	35 V	20 %	Polar	General Purpose	588 mA	Through Hole	4000 Hrs	-40 C	105 ░C	Can Radial	0.394 in	10 mm	5 mm	0.197 "	16 mm	0.63 in
KYOCERA AVX REA1013471M016K	380 mA	0.551 in		470 µF	16 V	20 %	Polar	General Purpose	532 mA	Through Hole	4000 Hrs	-40 C	105 ░C	Can Radial	0.394 in	10 mm	5 mm	0.197 "			14 mm

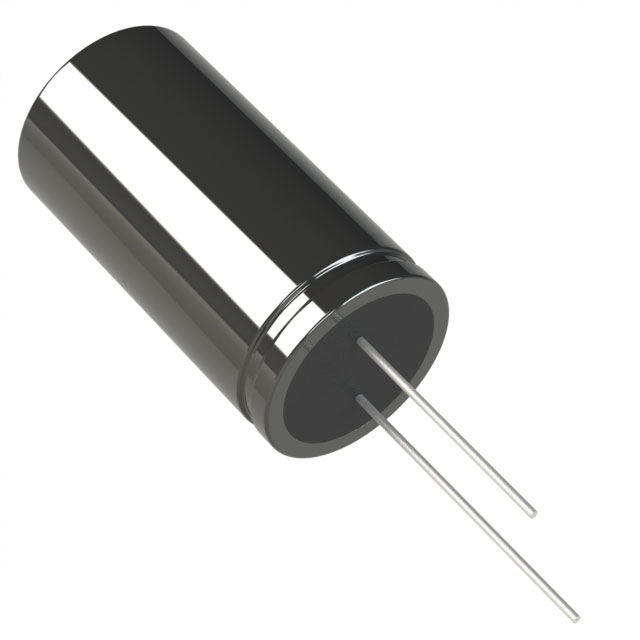

KYOCERA AVX REA1325222M016K	1.13 A	1.063 in		2200 µF	16 V	20 %	Polar	General Purpose	1.582 A	Through Hole	5000 Hrs	-40 C	105 ░C	Can Radial	0.512 in		5 mm	0.197 "			27 mm	13 mm
KYOCERA AVX REA1626330M450B	280 mA			33 ÁF	450 V	20 %	Polar	General Purpose	392 mA	Through Hole	5000 Hrs	-25 °C	105 ░C	Can Radial	0.63 in	16 mm	7.5 mm	0.295 in	28 mm	1.102 in

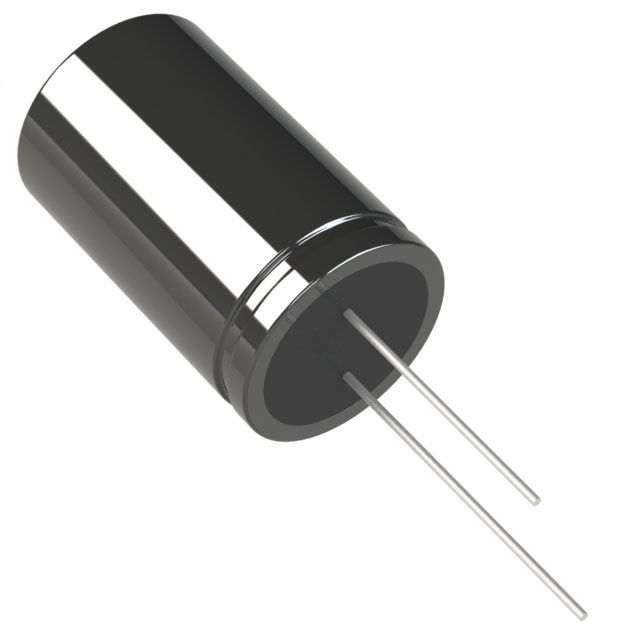

KYOCERA AVX REA1321331M063K				330 µF	63 V	20 %	Polar	General Purpose	770 mA	Through Hole	5000 Hrs	-40 C	105 ░C	Can Radial	0.512 in		5 mm	0.197 "	23 mm	0.906 in		13 mm
KYOCERA AVX REA1013100M160K	75 mA	0.531 in		10 µF	160 V	20 %	Polar	General Purpose	105 mA	Through Hole	4000 Hrs	-40 C	105 ░C	Can Radial	0.394 in	10 mm	5 mm	0.197 "			13.5 mm
KYOCERA AVX REA1020220M200K	140 mA			22 µF	200 VDC	20 %	Polar	General Purpose	196 mA	Through Hole	4000 Hrs	-40 C	105 ░C	Can Radial	0.394 in	10 mm	5 mm	0.197 "					0.866 in	22 mm
KYOCERA AVX REA08124R7M160K	43 mA			4.7 µF	160 V	20 %	Polar	General Purpose	60.2 mA	Through Hole	3000 Hrs	-40 C	105 ░C	Can Radial	0.315 in	8 mm	3.5 mm	0.138 in	13 mm	0.512 "
KYOCERA AVX REA1016470M100K	190 mA			47 µF	100 V	20 %	Polar	General Purpose	304 mA	Through Hole	4000 Hrs	-40 C	105 ░C	Can Radial	0.394 in	10 mm	5 mm	0.197 "	16 mm	0.63 in
