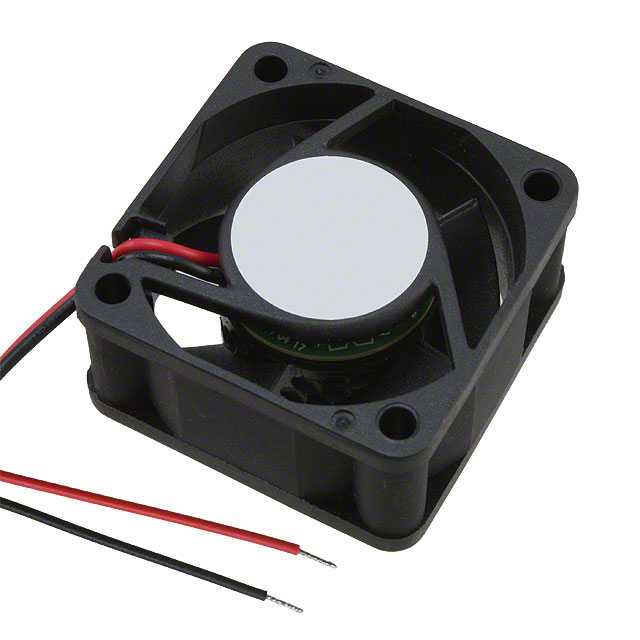

EFB0412 Series

Catalog

FAN AXIAL 40X10MM 12VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Material - Frame	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Fan Type	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Weight [custom]	Weight [custom]	Voltage - Rated	Power (Watts)	Static Pressure	Static Pressure	Termination	Bearing Type	Air Flow	Air Flow	Approval Agency	RPM	Noise	Size / Dimension [x]	Size / Dimension [z]	Weight	Weight	Features	Static Pressure
Delta Electronics EFB0412LA	Plastic	50 mA	Plastic	70000 Hrs	9 V	13.8 VDC	Tubeaxial	10 mm	70 °C	-10 °C	14.51 g	0.032 lb	12 VDC	600 mW	14.2 Pa	0.057 in H2O	2 Wire Leads	Ball	0.104 m³/min	3.7 CFM	CE CSA UL VDE	4000 RPM	20.5 dB(A)	40 mm	40 mm
Delta Electronics EFB0412LD	Plastic	50 mA	Plastic	70000 Hrs	7 V	13.8 VDC	Tubeaxial	20 mm	70 °C	-10 °C			12 VDC	600 mW	33.9 Pa	0.136 in H2O	2 Wire Leads	Ball	0.154 mł/min	5.5 CFM	CE CSA UL VDE	5000 RPM	22 dB(A)	40 mm	40 mm	33.11 g	0.073 lb

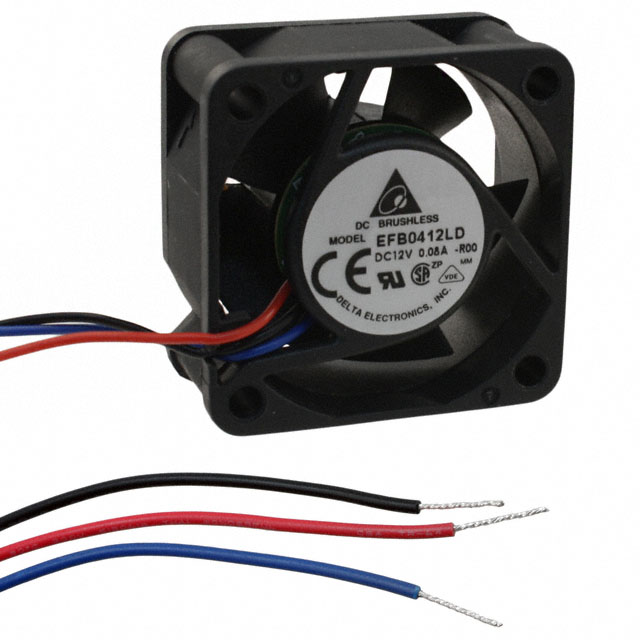

Delta Electronics EFB0412LD-R00	Plastic	50 mA	Plastic	70000 Hrs	7 V	13.8 VDC	Tubeaxial	20 mm	70 °C	-10 °C			12 VDC	600 mW	33.9 Pa	0.136 in H2O	3 Wire Leads	Ball	0.154 mł/min	5.5 CFM	CE CSA UL VDE	5000 RPM	22 dB(A)	40 mm	40 mm	33.11 g	0.073 lb	Locked Rotor Sensor

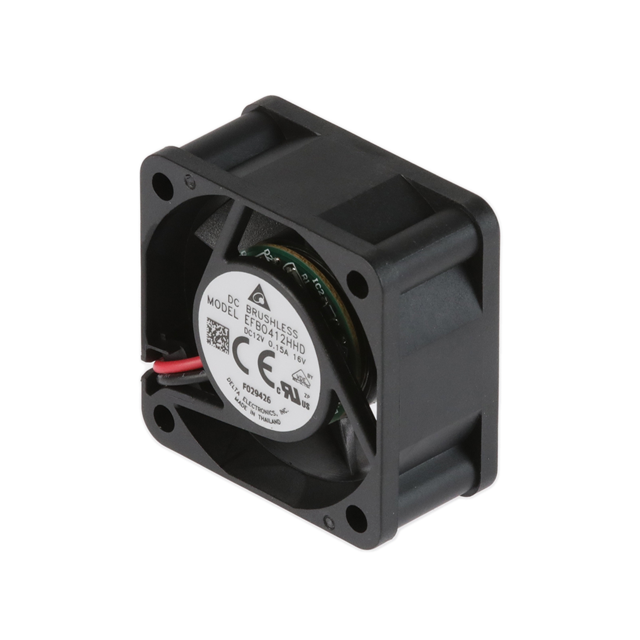

Delta Electronics EFB0412HHD16V	Plastic	100 mA	Plastic	70000 Hrs	7 V	13.8 VDC	Tubeaxial	20 mm	70 °C	-10 °C			12 VDC	1.2 W	88.2 Pa	0.354 in H2O	2 Position Rectangular Connector	Ball	0.263 m³/min	9.4 CFM	CE cURus VDE	8200 RPM	30.5 dB	40 mm	40 mm	33.11 g	0.073 lb
Delta Electronics EFB0412LD-F00	Plastic	50 mA	Plastic	70000 Hrs	7 V	13.8 VDC	Tubeaxial	20 mm	70 °C	-10 °C			12 VDC	600 mW	33.9 Pa	0.136 in H2O	3 Wire Leads	Ball	0.154 mł/min	5.5 CFM	CE CSA UL VDE	5000 RPM	22 dB(A)	40 mm	40 mm	33.11 g	0.073 lb	Locked Rotor Protection Speed Sensor (Tach)

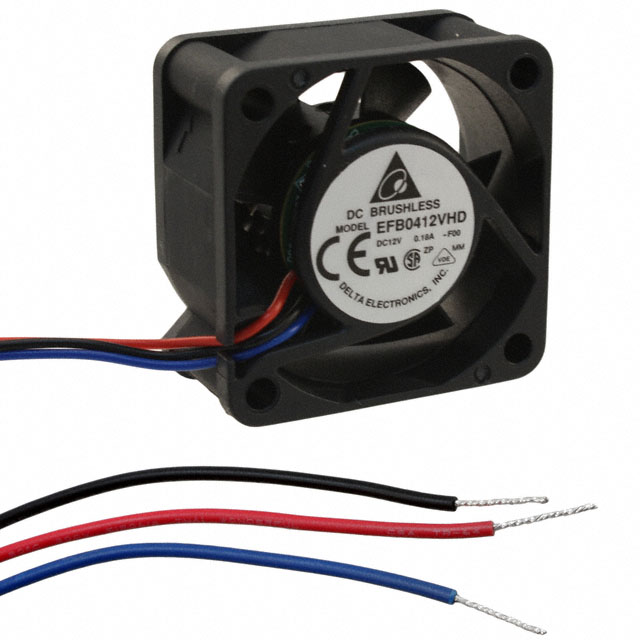

Delta Electronics EFB0412VHD-F00	Plastic	120 mA	Plastic	70000 Hrs	7 V	13.8 VDC	Tubeaxial	20 mm	70 °C	-10 °C			12 VDC	1.44 W	103.6 Pa	0.416 in H2O	3 Wire Leads	Ball	0.283 m³/min	10.1 CFM	CE CSA UL VDE	9000 RPM	32.5 dB	40 mm	40 mm	33.11 g	0.073 lb	Locked Rotor Protection Speed Sensor (Tach)

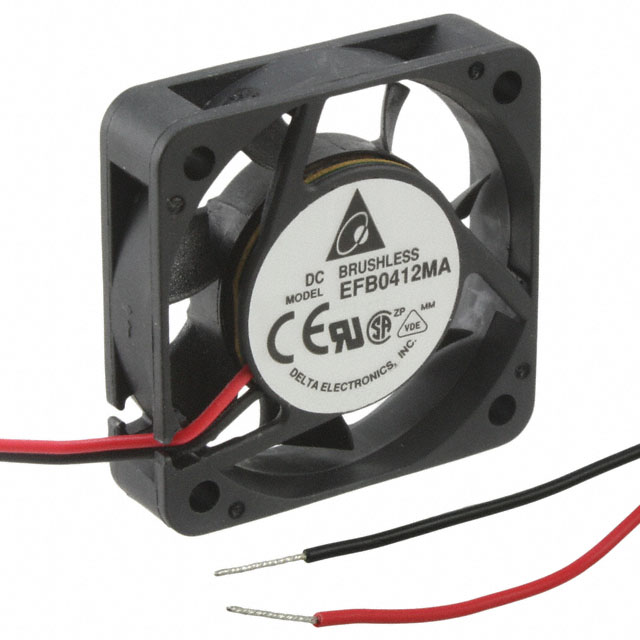

Delta Electronics EFB0412MA	Plastic	60 mA	Plastic	70000 Hrs	7 V	13.8 VDC	Tubeaxial	10 mm	70 °C	-10 °C	14.51 g	0.032 lb	12 VDC	720 mW	21.9 Pa		2 Wire Leads	Ball	0.165 m³/min	5.9 CFM	CE CSA UL VDE	5000 RPM	24.5 dB(A)	40 mm	40 mm				0.088 in H2O

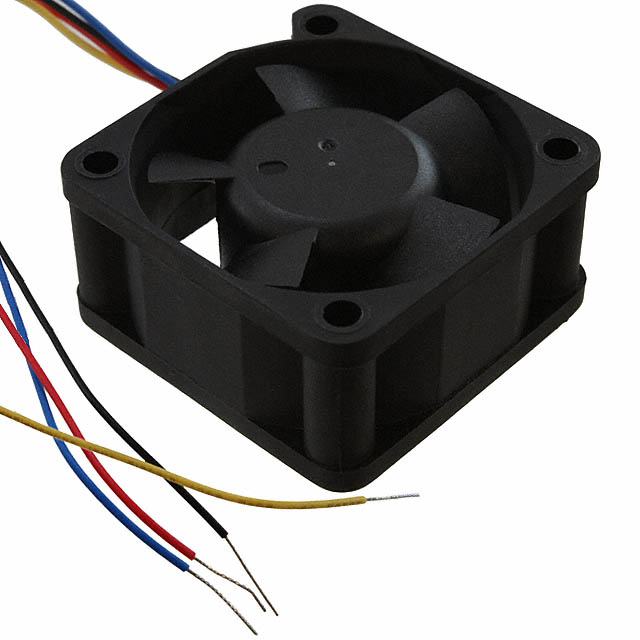

Delta Electronics EFB0412VHD-SP05	Plastic	120 mA	Plastic	70000 Hrs	5 VDC	13.8 VDC	Tubeaxial	20 mm	70 °C	-10 °C			12 VDC	1.44 W	103.6 Pa	0.416 in H2O	4 Wire Leads	Ball	0.283 m³/min	10.1 CFM	CE CSA UL VDE	9000 RPM	32.5 dB	40 mm	40 mm	33.11 g	0.073 lb	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Delta Electronics EFB0412VHD-R00	Plastic	120 mA	Plastic	70000 Hrs	7 V	13.8 VDC	Tubeaxial	20 mm	70 °C	-10 °C			12 VDC	1.44 W	103.6 Pa	0.416 in H2O	3 Wire Leads	Ball	0.283 m³/min	10.1 CFM	CE CSA UL VDE	9000 RPM	32.5 dB	40 mm	40 mm	33.11 g	0.073 lb	Locked Rotor Sensor

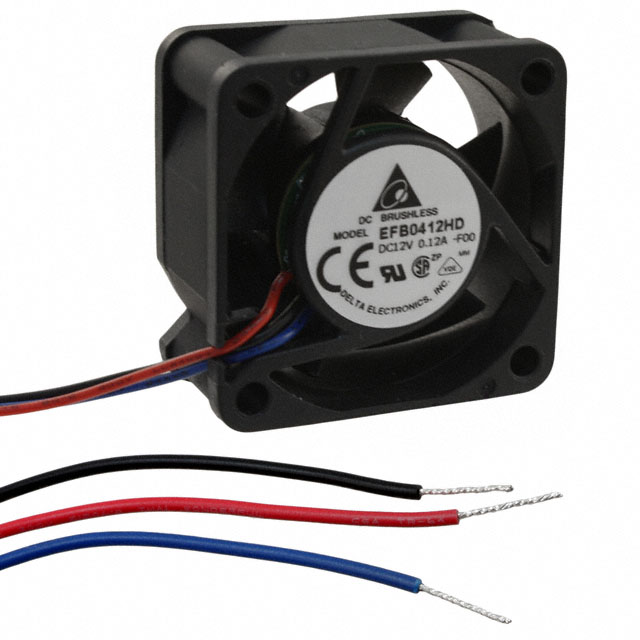

Delta Electronics EFB0412HD-F00	Plastic		Plastic	70000 Hrs	7 V	13.8 VDC	Tubeaxial	20 mm	70 °C	-10 °C			12 VDC	960 mW	75.5 Pa	0.303 in H2O	3 Wire Leads	Ball	0.238 mł/min	8.5 CFM	CE CSA UL VDE	7600 RPM	28.5 dB	40 mm	40 mm	33.11 g	0.073 lb	Locked Rotor Protection Speed Sensor (Tach)
