083-1SP Series
Manufacturer: Amphenol RF
Beta
⌘K
CONN UHF PLUG STR SOLDER
| Part | Body Material | Mating Cycles | Cable Group | Center Contact Material | Mounting Type | Features | Dielectric Material | Connector Type | Impedance | Connector Style | Frequency - Max [Max] | Voltage Rating | Body Finish | Center Contact Plating | Housing Color | Contact Termination | Shield Termination | Number of Ports | Operating Temperature [Min] | Operating Temperature [Max] | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

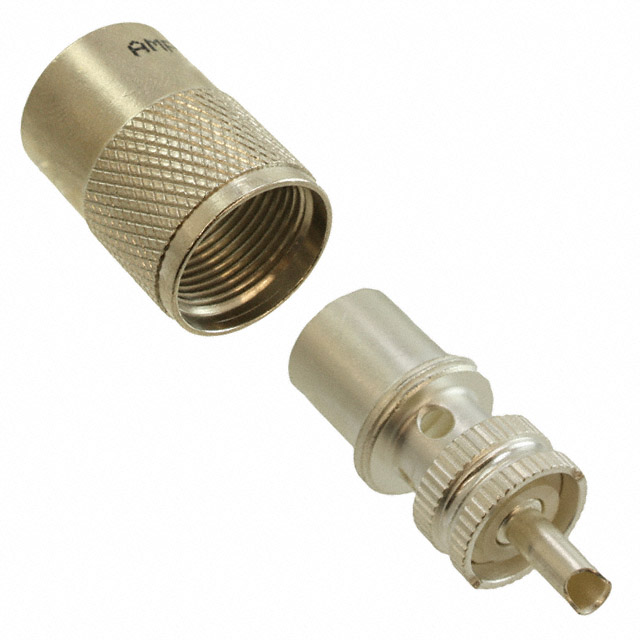

 Amphenol RF | Brass | 500 | 213 214 225 302 393 87 8A 9 9A 9B RG-8 | Brass | Free Hanging (In-Line) | PL-259 | Phenol Formaldehyde (Phenolic) | Male Pin Plug | Non-Constant | UHF | 300 MHz | 500 V | Nickel | Silver | Silver | Solder Cup | Solder | 1 | |||

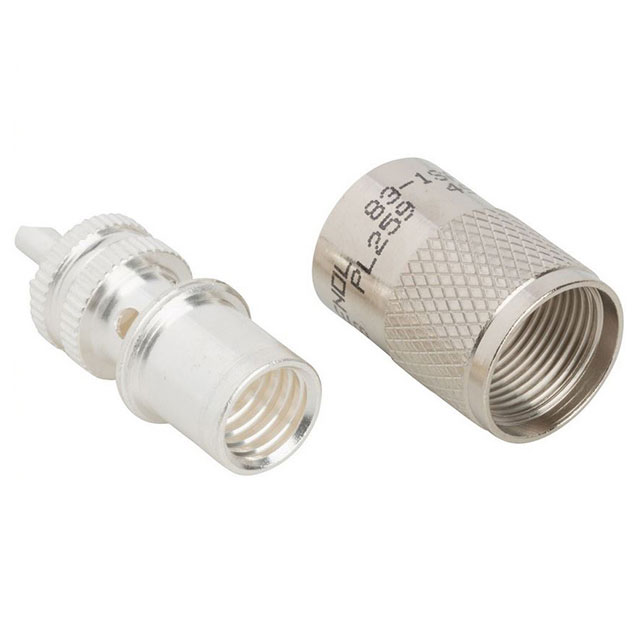

 Amphenol RF | Brass | 500 | 213 214 225 302 393 87 8A 9 9A 9B RG-8 | Brass | Free Hanging (In-Line) | PL-259 | Liquid Crystal Polymer (LCP) | Male Pin Plug | UHF | 300 MHz | 500 V | Silver | Silver | Silver | Solder Cup | Solder | 1 | -65 ░C | 165 °C | 50 Ohms |
