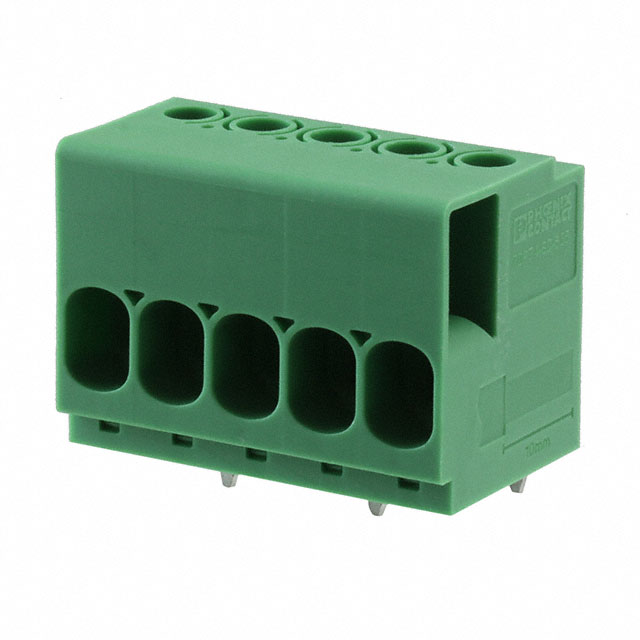

TDPT Series
Manufacturer: Phoenix Contact
Beta
⌘K
FIXED TERMINAL BLOCKS TDPT 4/ 3-SP-6,35-ZB
| Part | Operating Temperature | Contact Material - Plating | Voltage | Wire Gauge [Max] | Wire Gauge [Min] | Positions Per Level | Features | Mounting Type | Wire Termination | Color | Pitch | Pitch | Current | Mating Orientation | Number of Levels | Screw Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | -40 °C | Tin | 600 V | 24 AWG | 10 AWG | 3 | Lever Actuated | Through Hole | Leg Spring Push-In Spring | Green | 6.35 mm | 0.25 in | 30 A | Horizontal with Board | 1 | |
 Phoenix Contact | -40 °C | Tin | 600 V | 20 AWG | 6 AWG | 4 | Lever Actuated | Through Hole | Leg Spring Push-In Spring | Green | 10.16 mm | 0.4 in | 58 A | Horizontal with Board | 1 | |
 Phoenix Contact | -40 °C | Tin | 600 V | 24 AWG | 10 AWG | 5 | Through Hole | Screw - Rising Cage Clamp | Green | 6.35 mm | 0.25 in | 30 A | Horizontal with Board | 1 | M3 | |
 Phoenix Contact | 400 V | 24 AWG | 12 AWG | 11 | Through Hole | Screw - Rising Cage Clamp | Green | 5.08 mm | 0.2 in | 24 A | Horizontal with Board | 1 |
