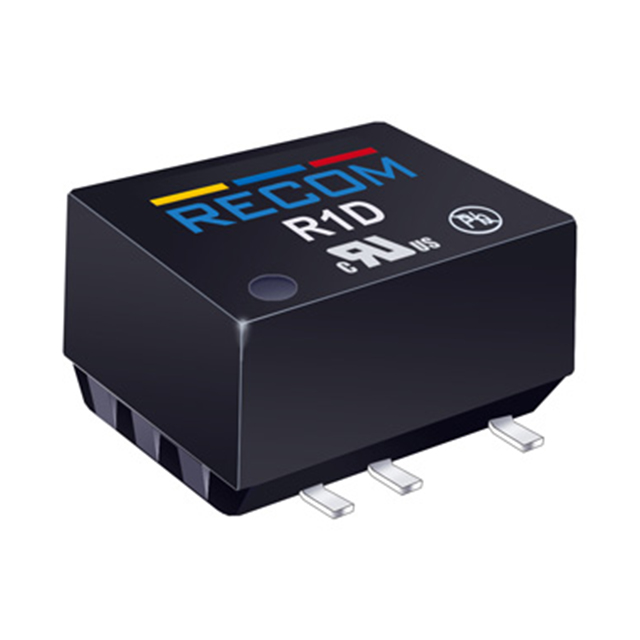

R1D Series

Catalog

ISOLATED DC/DC CONVERTERS - SMD 1W DC/DC 1KV UNREG 12VIN +/-15VOUT

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 2	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Type	Voltage - Isolation	Applications	Package / Case	Voltage - Output 1	Current - Output (Max) [Max]	Current - Output (Max) [Min]	Mounting Type	Efficiency	Current - Output (Max)	Current - Output (Max)
Recom Power R1D10-1215/P	-40 C	100 °C	SCP	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	-15 V	10.8 V	13.2 V	2	Isolated Module	1000 V	ITE (Commercial)	10-SMD Module	15 V	33 mA	33 mA	Surface Mount
Recom Power R1D-0524/HP	-40 C	100 °C	SCP	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	-24 V	4.5 V	5.5 V	2	Isolated Module	3000 V	ITE (Commercial) Medical	10-SMD Module 6 Leads	24 V			Surface Mount	84 %	21 mA
Recom Power R1D12-3.309/HP	-40 C	100 °C	SCP	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	-9 V	3 V	3.6 V	2	Isolated Module	3000 V	ITE (Commercial) Medical	12-SMD Module 10 Leads	9 V	56 mA		Surface Mount	78 %

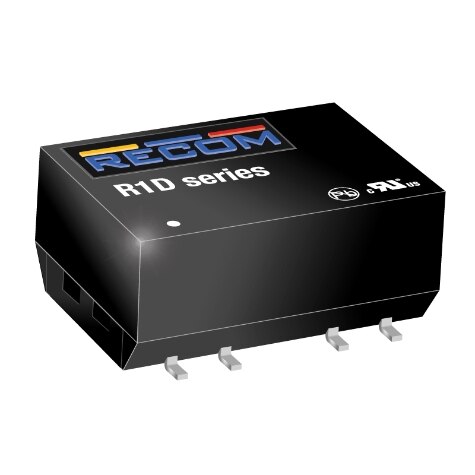

Recom Power R1D12-1515/HP	-40 C	100 °C	SCP	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	-15 V	13.5 V	16.5 V	2	Isolated Module	3000 V	ITE (Commercial) Medical	12-SMD Module 10 Leads	15 V	33 mA	33 mA	Surface Mount
Recom Power R1D10-243.3/P-R	-40 C	100 °C	SCP	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	-3.3 V	21.6 V	26.4 V	2	Isolated Module	1000 V	ITE (Commercial)	10-SMD Module	3.3 V			Surface Mount	75 %	152 mA	152 mA
Recom Power R1D-3.315/H-R	-40 C	100 °C	SCP	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	-15 V	3 V	3.6 V	2	Isolated Module	3000 V	ITE (Commercial) Medical	10-SMD Module 6 Leads	15 V	33 mA	33 mA	Surface Mount
Recom Power R1D10-1515/P-R	-40 C	100 °C	SCP	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	-15 V	13.5 V	16.5 V	2	Isolated Module	1000 V	ITE (Commercial)	10-SMD Module	15 V	33 mA	33 mA	Surface Mount
Recom Power R1D10-2412/P-R	-40 C	100 °C	SCP	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	-12 V	21.6 V	26.4 V	2	Isolated Module	1000 V	ITE (Commercial)	10-SMD Module	12 V			Surface Mount	80 %	42 mA
Recom Power R1D-243.3/P-R	-40 C	100 °C	SCP	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	-3.3 V	21.6 V	26.4 V	2	Isolated Module	1000 V	ITE (Commercial)	10-SMD Module 6 Leads	3.3 V			Surface Mount	75 %	152 mA	152 mA
Recom Power R1D-1215/P-R	-40 C	100 °C	SCP	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	-15 V	10.8 V	13.2 V	2	Isolated Module	1000 V	ITE (Commercial)	10-SMD Module 6 Leads	15 V	33 mA	33 mA	Surface Mount
