RSF166 Series

Liquid Level Sensors LLS

Manufacturer: Sensata-Crydom

Catalog

Liquid Level Sensors LLS

Catalog

Liquid Level Sensors LLS

Part	Minimum Liquid Specific Gravity [Min]	Output Type	Voltage Rating	Switch Actuation Level	Switch Actuation Level	Operating Temperature [Max]	Operating Temperature [Min]	Type	Output Configuration	Current	Mounting Type	Material - Housing & Prism	Switch Actuation Level
Sensata-Crydom RSF166B50B100	0.85	Switch (2) (Dual Float)	120 VDC 240 VAC	1.969 in 3.937 in	50 mm 100 mm	85 °C	-10 °C	Liquid	SPST-NC/NO	600 mA	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)

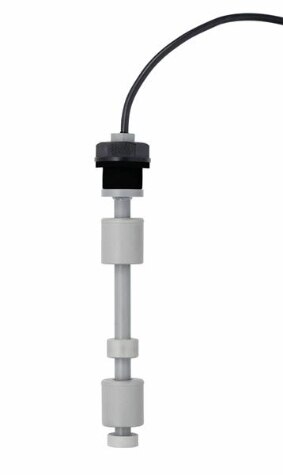

Sensata-Crydom RSF166B50B150	0.85	Switch (2) (Dual Float)	120 VDC 240 VAC	1.969 in 5.906 " 50 mm 150 mm		85 °C	-10 °C	Liquid	SPST-NC/NO	600 mA	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)
Sensata-Crydom RSF166B50B150P	0.85	Switch (2) (Dual Float)	120 VDC 240 VAC	1.969 in 5.906 " 50 mm 150 mm		85 °C	-10 °C	Liquid	SPST-NC/NO	600 mA	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)
Sensata-Crydom RSF166A25B125P	0.85	Switch (2) (Single Float)	120 VDC 240 VAC	30 mm 125 mm	1.181 in 4.921 in	85 °C	-10 °C	Liquid	SPST-NC/NO	600 mA	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)

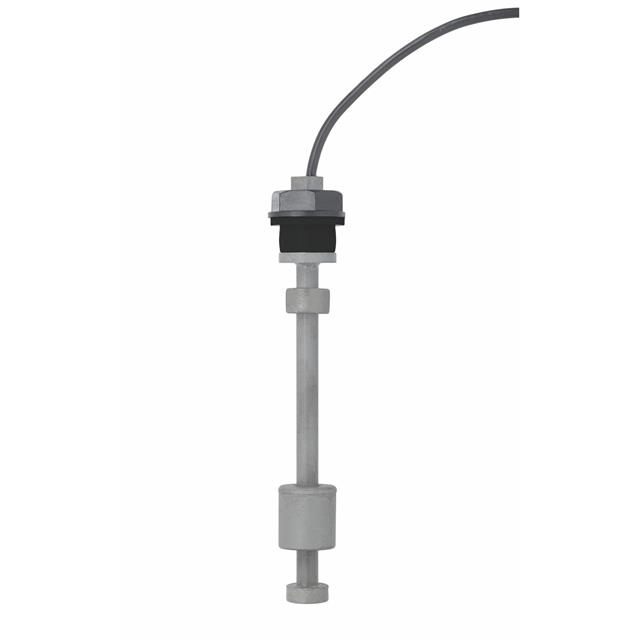

Sensata-Crydom RSF166A25B125	0.85	Switch (2) (Single Float)	120 VDC 240 VAC	30 mm 125 mm	1.181 in 4.921 in	85 °C	-10 °C	Liquid	SPST-NC/NO	600 mA	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)
Sensata-Crydom RSF166B50B100P	0.85	Switch (2) (Dual Float)	120 VDC 240 VAC	1.969 in 3.937 in	50 mm 100 mm	85 °C	-10 °C	Liquid	SPST-NC/NO	600 mA	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)
Sensata-Crydom RSF166B50B150	0.85	Switch (2) (Dual Float)	120 VDC 240 VAC	1.969 in 5.906 " 50 mm 150 mm		85 °C	-10 °C	Liquid	SPST-NC/NO	600 mA	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)

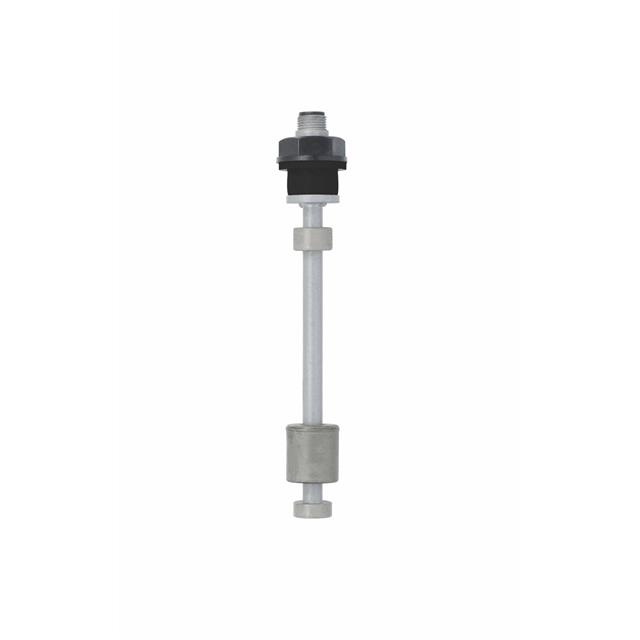

Sensata-Crydom RSF166A25B150P	0.85	Switch (2) (Single Float)	120 VDC 240 VAC	30 mm	1.181 in 5.906 in	85 °C	-10 °C	Liquid	SPST-NC/NO	600 mA	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	150 mm
Sensata-Crydom RSF166A25B175P	0.85	Switch (2) (Single Float)	120 VDC 240 VAC	1.181 " 6.89 in 30 mm 175 mm		85 °C	-10 °C	Liquid	SPST-NC/NO	600 mA	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)
Sensata-Crydom RSF166A50A100P	0.85	Switch (2) (Dual Float)	120 VDC 240 VAC	1.969 in 5.906 " 50 mm 150 mm		85 °C	-10 °C	Liquid	SPST-NC/NO	600 mA	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)
