EM-SGL-M40 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

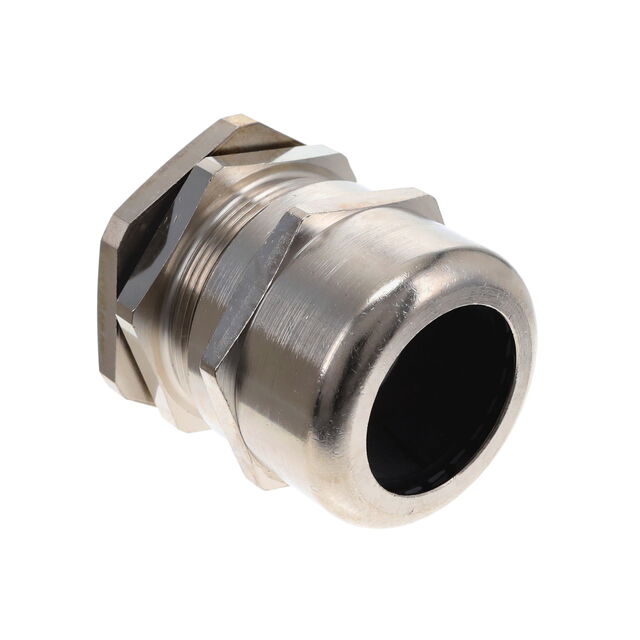

CABLE GLAND 19-28MM M40 BRASS
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Outside Cable Diameter (Max) | Outside Cable Diameter (Max) [Max] | Thread Size | Thread Length | Thread Length | Color | Type | Material | Outside Cable Diameter (Min) | Outside Cable Diameter (Min) | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -20 ░C | 100 °C | IP68 - Dust Tight Waterproof | 28 mm | 1.102 in | M40x1.5 | 0.354 in | 9 mm | Silver | Cable Gland | Brass Nickel Plated | 0.748 in | 19 mm | Locknut Seal |
