DDR2 SO DIMM Series

Catalog

MEMORY CARD CONNECTOR, DDR SODIMM SOCKET, CAM-IN LOCKING, 200 CONTACTS, COPPER ALLOY

Part	Mounting Type	Card Thickness	Card Thickness	Color	Connector Style	Mounting Feature	Insertion Angle	Memory Type	Number of Positions	Height [z]	Height [z]	Contact Finish	Features	Contact Finish Thickness	Insertion Angle	Height
TE Connectivity AMP Connectors 1827341-4	Surface Mount	1 mm	0.039 in	Black	SODIMM	Normal Standard - Top	Right Angle	DDR2 SDRAM	200	8 mm	0.315 in	Gold	Board Guide Latches
TE Connectivity AMP Connectors 1612618-1	Surface Mount	1 mm	0.039 in		SODIMM	Normal Standard - Top		DDR SDRAM	200	9.2 mm	0.362 in	Gold	Board Guide Latches	Flash	25 °
TE Connectivity AMP Connectors 292407-4	Surface Mount	1 mm	0.039 in	Black	SODIMM	Reverse		DDR2 SDRAM	200	4 mm	0.196 in	Gold	Board Guide Latches	Flash	25 °
TE Connectivity AMP Connectors 1612507-3	Surface Mount	1 mm	0.039 in		SODIMM	Normal Standard - Top		DDR SDRAM	200		0.205 in	Gold	Board Guide Latches	Flash	25 °	5.2 mm

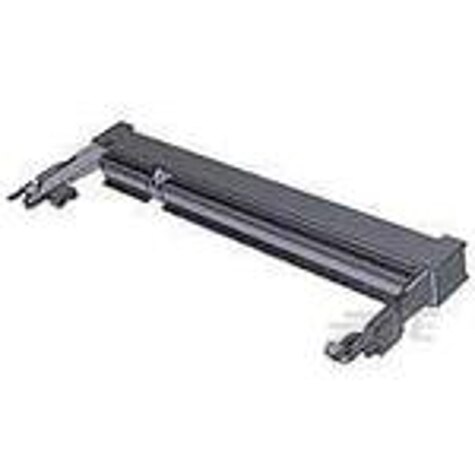

TE Connectivity AMP Connectors 5-1612773-1	Surface Mount	1 mm	0.039 in	Black	SODIMM	Reverse		DDR SDRAM	200	6.5 mm	0.256 in	Gold	Board Guide Latches	Flash	25 °

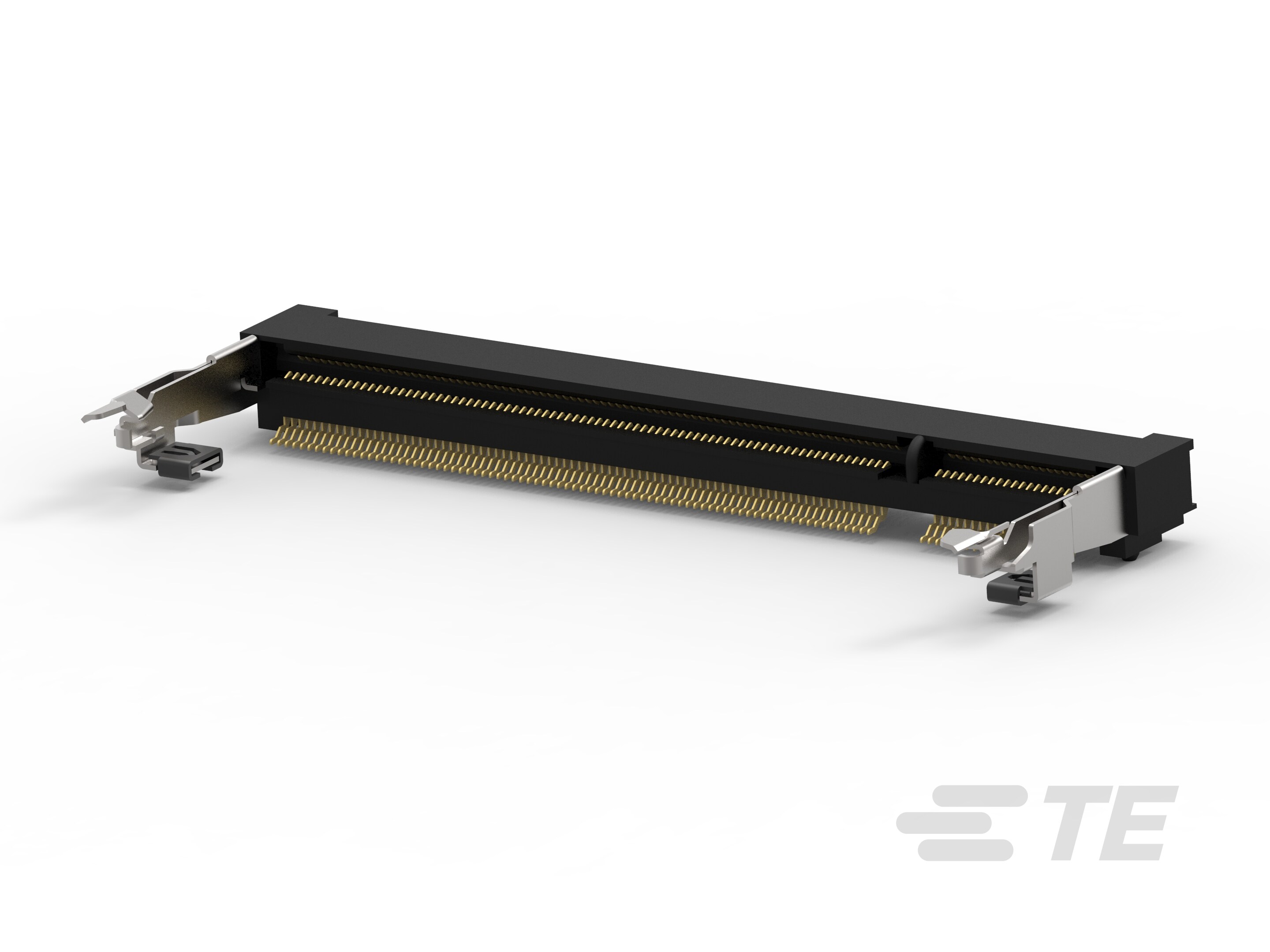

TE Connectivity AMP Connectors 1717468-3	Surface Mount	1 mm	0.039 in	Black	SODIMM	Normal Standard - Top	Right Angle	DDR SDRAM	200	6.5 mm	0.256 in	Gold	Board Guide Latches	Flash
