16282-2S Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

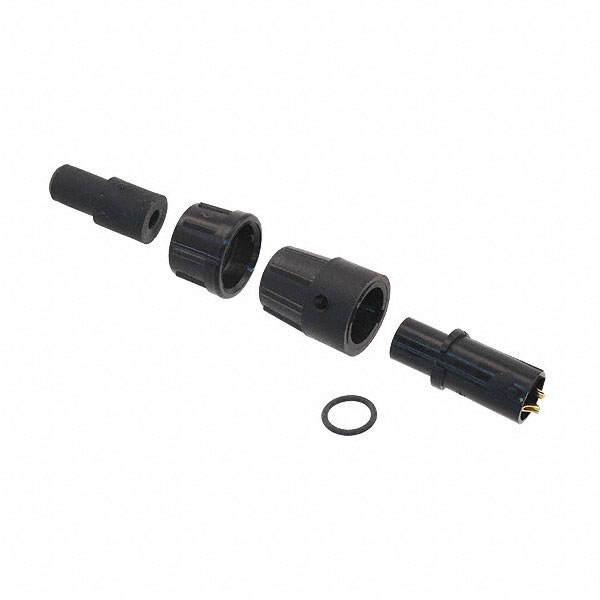

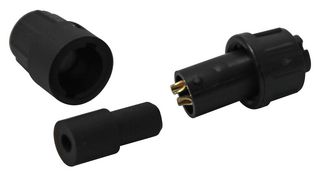

CIRCULAR CONNECTOR, MICRO-CON-X SERIES, CABLE MOUNT RECEPTACLE, 2 CONTACTS, SOLDER SOCKET, BAYONET
| Part | Contact Material | Applications | Backshell Material, Plating | Mounting Type | Features | Primary Material | Material Flammability Rating | Color | Fastening Type | Contact Finish - Mating | Number of Positions | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Connector Type | Shielding | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Ingress Protection | Voltage Rating | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Copper Alloy | Data Industrial Instrumentation Medical | Thermoplastic | Free Hanging (In-Line) | Backshell | Plastic | UL94 HB | Black | Bayonet Lock | Gold | 2 | 0.14 in | 2.29 mm | 0.09 in | 3.56 mm | Plug Female Sockets | Unshielded | Keyed | 85 °C | -40 C | 7.5 A | IP67 - Dust Tight Waterproof | 600 VAC | |
 SWITCHCRAFT/CONXALL | Copper Alloy | Data Industrial Instrumentation Medical | Thermoplastic | Free Hanging (In-Line) | Backshell | Plastic | UL94 HB | Black | Bayonet Lock | Gold | 2 | 0.17 in | 3.81 mm | 0.15 " | Plug Female Sockets | Unshielded | Keyed | 85 °C | -40 C | 7.5 A | IP67 - Dust Tight Waterproof | 600 VAC | 4.32 mm |
