HCM1AV2 Series

Power Inductors - SMD IND MP 4.7uH 3A 2 PADS SMT

Manufacturer: Eaton - Electronics Division

Catalog

Power Inductors - SMD IND MP 4.7uH 3A 2 PADS SMT

Catalog

Power Inductors - SMD IND MP 4.7uH 3A 2 PADS SMT

...

Part	Tolerance	Material - Core	Ratings	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Frequency - Self Resonant	Shielding	DC Resistance (DCR)	Inductance Frequency - Test	Current Rating (Amps)	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Saturation (Isat)	Package / Case	Height - Seated (Max)	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

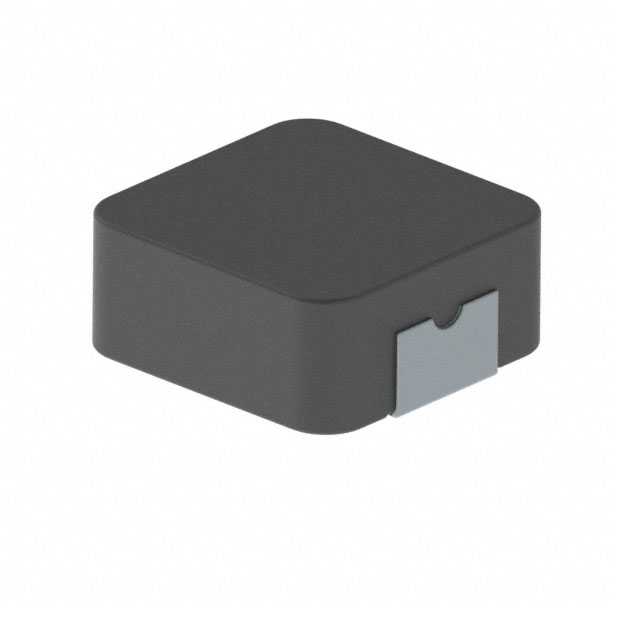

Eaton - Electronics Division HCM1A0503V2-6R8-R	20 %	Iron Powder	AEC-Q200	0.213 in	5.4 mm	5.2 mm	0.205 "	155 C	-55 C	6.8 µH	16 MHz	Shielded	70 mOhm	100 kHz	3.3 A	Surface Mount	0.118 "	3 mm	4 A	Nonstandard

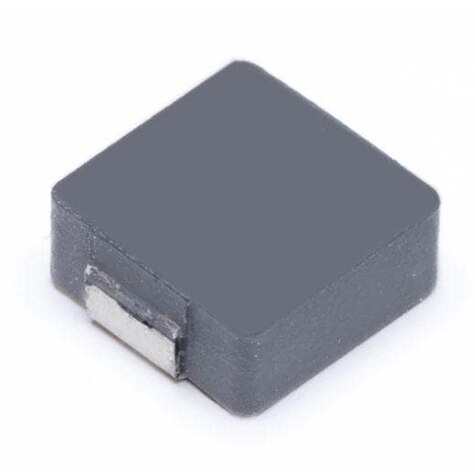

Eaton - Electronics Division HCM1A1104V2-R20-R	20 %	Iron Powder	AEC-Q200	0.425 in	10.8 mm	10 mm	0.394 in	155 C	-55 C		150 MHz	Shielded	0.72 mOhm	100 kHz	43 A	Surface Mount			60 A	Nonstandard	4 mm	0.157 in
Eaton - Electronics Division HCM1A0805V2-4R7-R	20 %	Alloy Powder	AEC-Q200	0.319 in	8.1 mm	8 mm	0.315 in	155 C	-55 C	4.7 ÁH	15 MHz	Shielded		100 kHz	8 A	Surface Mount			8 A	Nonstandard		0.213 in	15.6 mOhm	5.4 mm
Eaton - Electronics Division HCM1A0703V2-R47-R	20 %	Iron Powder	AEC-Q200	0.276 "	7 mm	6.6 mm	0.26 in	155 C	-55 C	470 nH		Shielded		100 kHz	13 A	Surface Mount	0.118 "	3 mm	17 A	Nonstandard			4.14 mOhm
Eaton - Electronics Division HCM1A0503V2-2R2-R	20 %	Iron Powder	AEC-Q200	0.213 in	5.4 mm	5.2 mm	0.205 "	155 C	-55 C	2.2 µH	33 MHz	Shielded		100 kHz	5.5 Amps	Surface Mount	0.118 "	3 mm	6.4 A	Nonstandard			23 mOhm
Eaton - Electronics Division HCM1A1307V2-7R8-R	20 %	Iron Powder	AEC-Q200					155 C	-55 C	7.8 µH	9 MHz	Shielded		100 kHz	10 A	Surface Mount			16 A	Nonstandard			11.78 mOhm	0.256 in	6.5 mm
Eaton - Electronics Division HCM1A0703V2-R22-R	20 %	Iron Powder	AEC-Q200	0.276 "	7 mm	6.6 mm	0.26 in	155 C	-55 C	220 nH	150 MHz	Shielded	2.3 mOhm	100 kHz	18 A	Surface Mount	0.118 "	3 mm	32 A	Nonstandard
Eaton - Electronics Division HCM1A1105V2-1R0-R	20 %	Iron Powder	AEC-Q200	0.425 in	10.8 mm	10 mm	0.394 in	155 C	-55 C	1 µH	44 MHz	Shielded		100 kHz	20 A	Surface Mount			24 A	Nonstandard		0.197 in	2.4 mOhm	5 mm
Eaton - Electronics Division HCM1A1307V2-8R2-R	20 %	Iron Powder	AEC-Q200					155 C	-55 C	8.2 µH	8 MHz	Shielded		100 kHz	10 A	Surface Mount			14 A	Nonstandard			11.85 mOhm	0.256 in	6.5 mm
Eaton - Electronics Division HCM1A1104V2-330-R	20 %	Iron Powder	AEC-Q200	0.425 in	10.8 mm	10 mm	0.394 in	155 C	-55 C	33 µH	5 MHz	Shielded	102 mOhm	100 kHz	3.3 A	Surface Mount			4.6 A	Nonstandard	4 mm	0.157 in
