280001 Series

Catalog

.250 FF REC CONTACT UNPLATED S ROHS COMPLIANT: YES

Part	Tab Width	Tab Width	Insulation	Length - Overall [x]	Length - Overall [x]	Tab Thickness	Tab Thickness	Terminal Type	Mounting Type	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter	Tab Length	Tab Length	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Gender

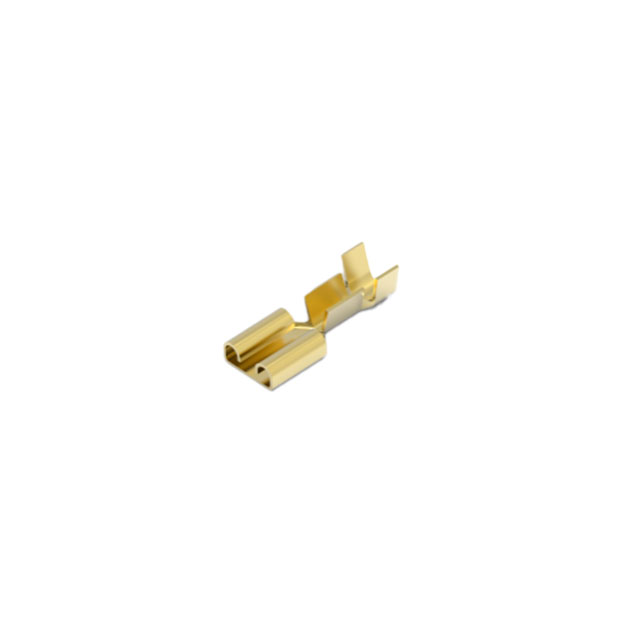

TE Connectivity Raychem Cable Protection 1-280001-1	6.35 mm	0.25 in	Non-Insulated	0.839 "	21.3 mm	0.032 in	0.81 mm	Standard	Free Hanging (In-Line)	0.169 in	0.118 in	3 mm 4.29 mm	0.303 in	7.7 mm	Crimp	14 AWG	17 AWG	Brass	Female
