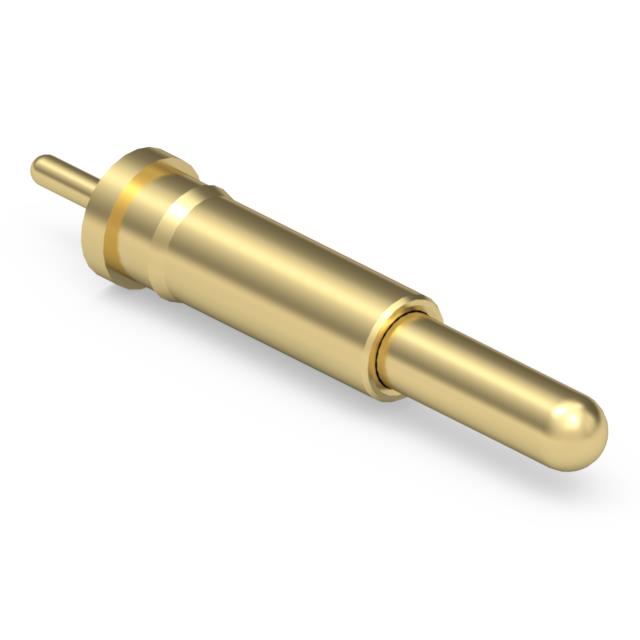

0908-4 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Material | Recommended Working Height | Recommended Working Height | Contact Finish | Operating Force - Initial | Contact Type | Mounting Type | Mating Cycles | Operating Force - Mid Compression | Minimum Working Height | Minimum Working Height | Maximum Working Height [Max] | Maximum Working Height [Max] | Plunger Size [diameter] | Plunger Size [diameter] | Pad Layout Dimension | Pad Layout Dimension | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2 A 5.2 A | Brass Alloy | 7.8 mm | 0.307 in | Gold | 10 gf | Sleeve & Plunger (Pogo Pins) | Through Hole | 1000000 | 60 gf | 7.11 mm | 0.28 in | 0.335 in | 8.51 mm | 0.042 in | 1.07 mm | 0.072 in | 1.83 mm | 20 µin | 0.51 µm |
