ABE7R Series

Catalog

SUB-BASE - SOLDERED ELECTROMECHA

Part	Mounting Type	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Switching Voltage [Max]	Coil Voltage	Termination Style	Must Release Voltage	Coil Type	Contact Form	Approval Agency	Release Time	Operate Time	Load - Max Switching	Must Operate Voltage	Features	Coil Voltage [Min]	Coil Voltage [Max]

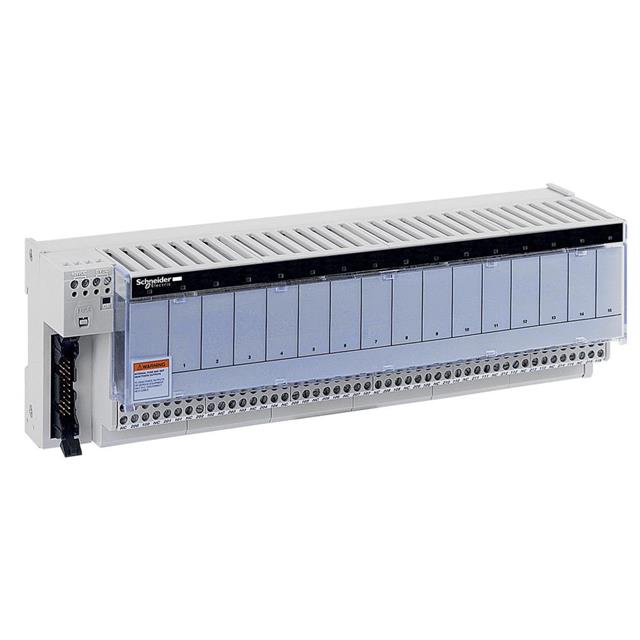

SCHNEIDER ELECTRIC ABE7R16S212	DIN Rail	10 A	60 °C	-5 °C	General Purpose	30 VDC 250 VAC	24 VDC	Screw Terminal	2.4 VDC	Non Latching	SPST-NO (1 Form A)	CSA DNV EAC GL UL	5 ms	10 ms	300 W 2500 VA
SCHNEIDER ELECTRIC ABE7R16S111	DIN Rail	12 A	60 °C	-5 °C	General Purpose	30 VDC 250 VAC	24 VDC	Screw Terminal	2.4 VDC	Non Latching		CSA DNV EAC GL UL	6 ms	10 ms	360 W 3000 VA	19.2 VDC

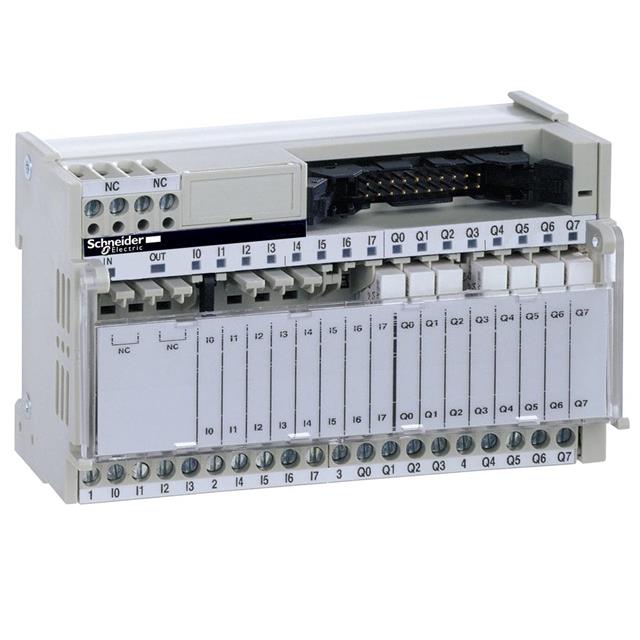

SCHNEIDER ELECTRIC ABE7R16M111	DIN Rail	12 A	60 °C	-5 °C	General Purpose			Screw Terminal		Non Latching	SPST-NO (1 Form A)	CSA DNV EAC GL UL					Lighted Indicator	19 VDC	30 VDC
SCHNEIDER ELECTRIC ABE7R16T370	DIN Rail		60 °C	-5 °C	General Purpose			Screw Terminal		Non Latching		CSA DNV EAC GL UL					Lighted Indicator	19 VDC	30 VDC
SCHNEIDER ELECTRIC ABE7R16T111	DIN Rail	12 A	60 °C	-5 °C	General Purpose			Screw Terminal		Non Latching	SPST-NO (1 Form A)	CSA DNV EAC GL UL					Lighted Indicator	19 VDC	30 VDC
SCHNEIDER ELECTRIC ABE7R16S210	DIN Rail	10 A	60 °C	-5 °C	General Purpose	30 VDC 250 VAC	24 VDC	Screw Terminal	2.4 VDC	Non Latching	SPST-NO (1 Form A)		10 ms	12 ms	300 W 2500 VA	19.7 VDC

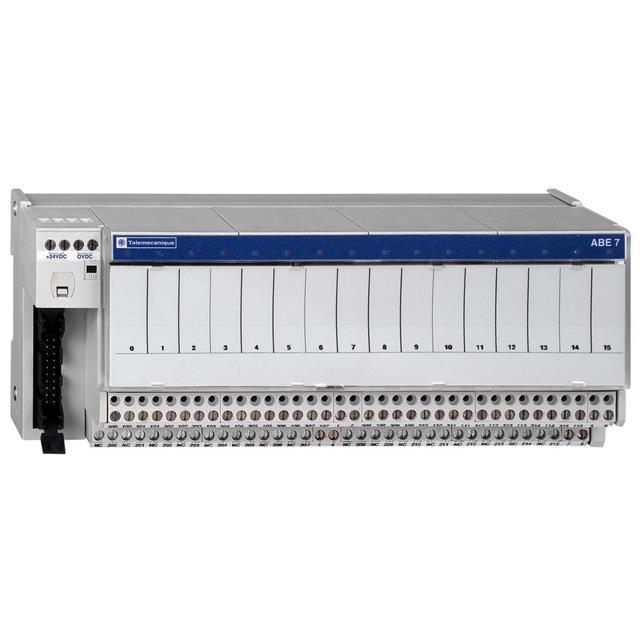

SCHNEIDER ELECTRIC ABE7R16T230	DIN Rail		60 °C	-5 °C	General Purpose			Screw Terminal		Non Latching	SPDT (1 Form C)	CSA DNV EAC GL UL					Lighted Indicator	19 VDC	30 VDC

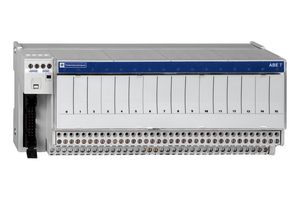

SCHNEIDER ELECTRIC ABE7R16T330	DIN Rail		60 °C	-5 °C	General Purpose			Screw Terminal		Non Latching	SPDT (1 Form C)	CSA DNV EAC GL UL					Lighted Indicator	19 VDC	30 VDC
SCHNEIDER ELECTRIC ABE7R16T212	DIN Rail		60 °C	-5 °C	General Purpose			Screw Terminal		Non Latching	SPST-NO (1 Form A)	CSA DNV EAC GL UL					Lighted Indicator	19 VDC	30 VDC
SCHNEIDER ELECTRIC ABE7R16T210	DIN Rail		60 °C	-5 °C	General Purpose			Screw Terminal		Non Latching	SPST-NO (1 Form A)	CSA DNV EAC GL UL					Lighted Indicator	19 VDC	30 VDC
