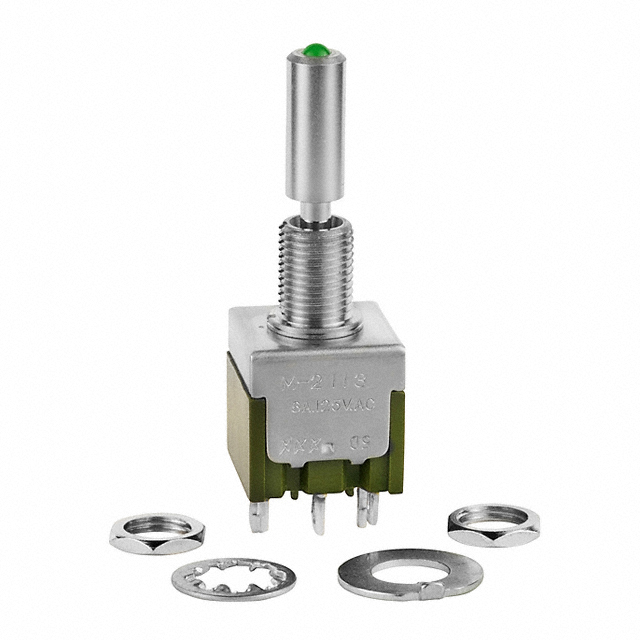

M2113LF Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SPDT 6A 125V
| Part | Electrical Life | Features | Actuator Length [x] | Circuit | Switch Function | Illumination Type, Color | Bushing Thread | Illumination Voltage (Nominal) | Voltage Rating - AC | Actuator Type | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Voltage Rating - DC | Illumination | Mounting Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Epoxy Sealed Terminals | 14.7 mm | SPDT | On-Off-On | Green LED | 1/4-40 | 2.2 VDC | 125 V | Standard Round | 6.5 mm | 3 A 6 A | 30 V | Illuminated | Through Hole | PC Pin | 55 °C | -10 °C |
 NKK Switches | 25000 Steps | Epoxy Sealed Terminals | 14.7 mm | SPDT | On-Off-On | Green LED | 1/4-40 | 2.2 VDC | 125 V | Standard Round | 6.5 mm | 3 A 6 A | 30 V | Illuminated | Panel Mount | Solder Lug | 55 °C | -10 °C |
 NKK Switches | 25000 Steps | Epoxy Sealed Terminals | 14.7 mm | SPDT | On-Off-On | Green LED | 1/4-40 | 2.2 VDC | 125 V | Standard Round | 6.5 mm | 3 A 6 A | 30 V | Illuminated | Panel Mount | Quick Connect - 0.062" (1.5mm) | 55 °C | -10 °C |
