D1031SH45 Series
Manufacturer: INFINEON
Beta
⌘K

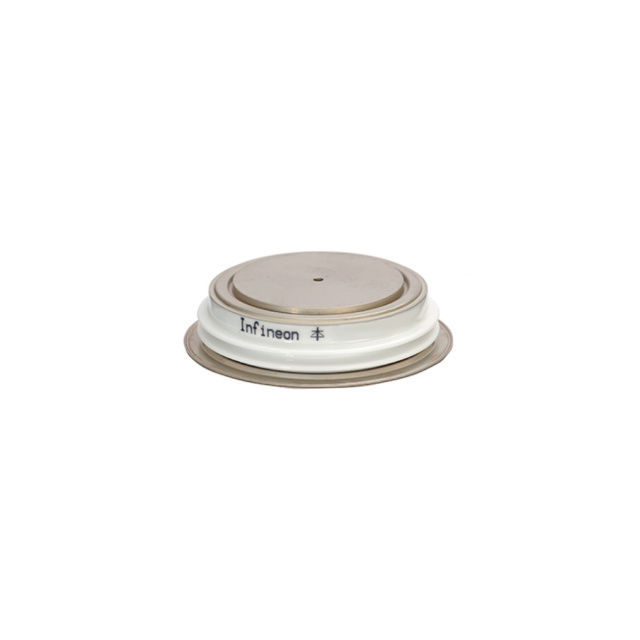

4500 V ULTRA-SOFT IGCT/IGBT FREEWHEELING DIODE CERAMIC DISCS WITH A 100 MM DIA AND A HEIGHT OF 26 MM
| Part | Package / Case | Voltage - Forward (Vf) (Max) @ If [Max] | Current - Average Rectified (Io) | Speed [Min] | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Voltage - DC Reverse (Vr) (Max) [Max] | Technology | Current - Reverse Leakage @ Vr | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | DO-200AD | 4.2 V | 1450 A | 200 mA 500 ns | 140 °C | 0 °C | 4500 V | Standard | 100 mA | Chassis Mount |
