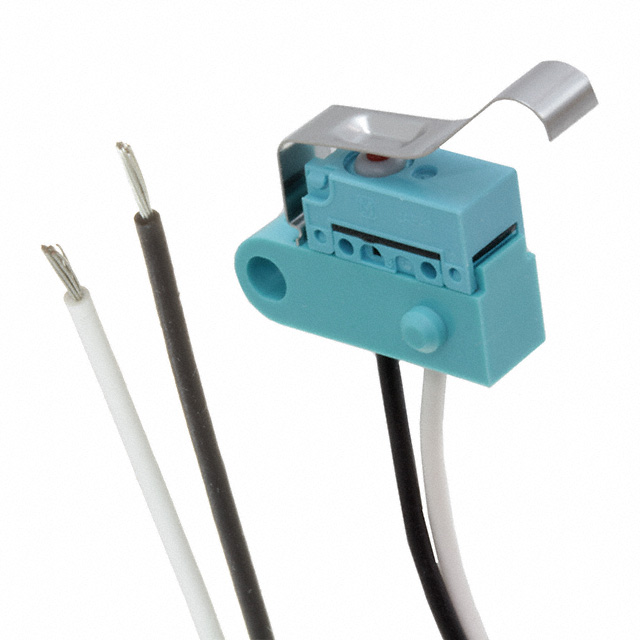

ABJ363 Series

Manufacturer: Panasonic Electronic Components

Catalog

SWITCH SNP ACT SPST-NO 0.1A 125V

Part	Overtravel [custom]	Overtravel [custom]	Voltage Rating - AC	Mechanical Life	Operating Force	Current Rating (Amps)	Pretravel	Pretravel	Switch Function	Release Force	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Type	Operating Position	Operating Position	Differential Travel	Differential Travel	Voltage Rating - DC	Ingress Protection	Mounting Type	Electrical Life	Termination Style
Panasonic Electronic Components ABJ363841	2.5 mm	0.098 "	125 V	500000 Cycles	100 gf	100 mA	0.236 "	6 mm	Off-Mom	20 gf	85 °C	-40 C	SPST-NO	Leaf Lever	16 mm	0.63 in	1 mm	0.04 in	30 V	IP67 - Dust Tight Waterproof	Chassis Mount	100000 Cycles	Wire Leads
Panasonic Electronic Components ABJ3638609	2.5 mm	0.098 "	125 V	500000 Cycles	130 gf	2 A	0.236 "	6 mm	Off-Mom	30 gf	85 °C	-40 C	SPST-NO	Leaf Lever	16 mm	0.63 in	1 mm	0.04 in	30 V	IP67 - Dust Tight Waterproof	Chassis Mount	6000 Cycles	Wire Leads
Panasonic Electronic Components ABJ3638409	2.5 mm	0.098 "	125 V	500000 Cycles	100 gf	1 A	0.236 "	6 mm	Off-Mom	20 gf	85 °C	-40 C	SPST-NO	Leaf Lever	16 mm	0.63 in	1 mm	0.04 in	30 V	IP67 - Dust Tight Waterproof	Chassis Mount	6000 Cycles	Wire Leads
Panasonic Electronic Components ABJ363840	2.5 mm	0.098 "	125 V	500000 Cycles	100 gf	1 A	0.236 "	6 mm	Off-Mom	20 gf	85 °C	-40 C	SPST-NO	Leaf Lever	16 mm	0.63 in	1 mm	0.04 in	30 V	IP67 - Dust Tight Waterproof	Chassis Mount	30000 Cycles	Wire Leads
Panasonic Electronic Components ABJ363860	2.5 mm	0.098 "	125 V	500000 Cycles	130 gf	2 A	0.236 "	6 mm	Off-Mom	30 gf	85 °C	-40 C	SPST-NO	Leaf Lever	16 mm	0.63 in	1 mm	0.04 in	30 V	IP67 - Dust Tight Waterproof	Chassis Mount	30000 Cycles	Wire Leads
