FB10S019 Series

Catalog

CONN FPC BOTTOM 19POS 0.3MM R/A

Part	Actuator Color	Mating Cycles	Current Rating (Amps)	Housing Color	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Finish	Voltage Rating	Connector/Contact Type	Actuator Material	Cable End Type	Number of Positions	Locking Feature	Pitch	Pitch	FFC, FCB Thickness [custom]	Height Above Board [z]	Height Above Board [z]	Housing Material	Flat Flex Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material

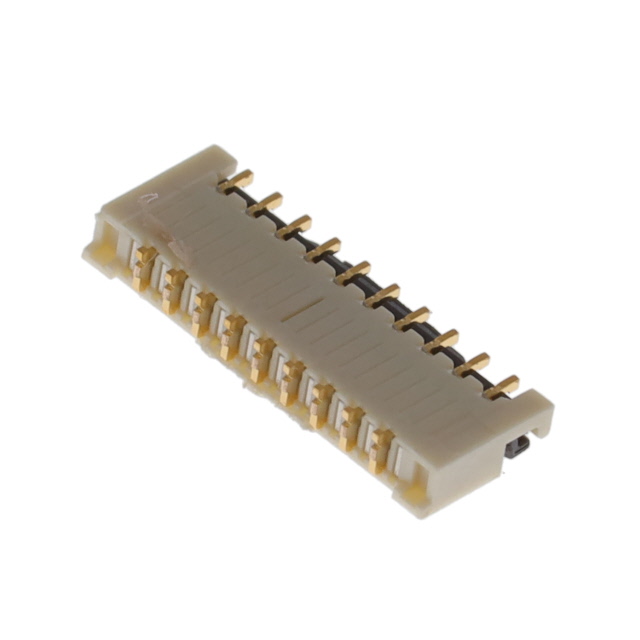

JAE Electronics FB10S019JT1R6000	Black	20	0.35 A	White	1.25 Áin	0.03 Ám	Solder	Gold	50 V	Contacts Bottom	Plastic	Tabbed or Tapered	19	Flip Lock	0.012 in	0.3 mm	0.2 mm	0.88 mm	0.035 in	Plastic	FPC	Right Angle Surface Mount	85 °C	-40 C	Phosphor Bronze
