315-036 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 36POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Gender	Contact Finish	Number of Positions/Bay/Row [custom]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Pitch	Pitch	Card Type	Color	Number of Positions	Flange Feature	Features	Number of Rows [custom]	Contact Material	Termination	Card Thickness [Max]	Card Thickness [Min]	Flange Feature [diameter]	Flange Feature [diameter]

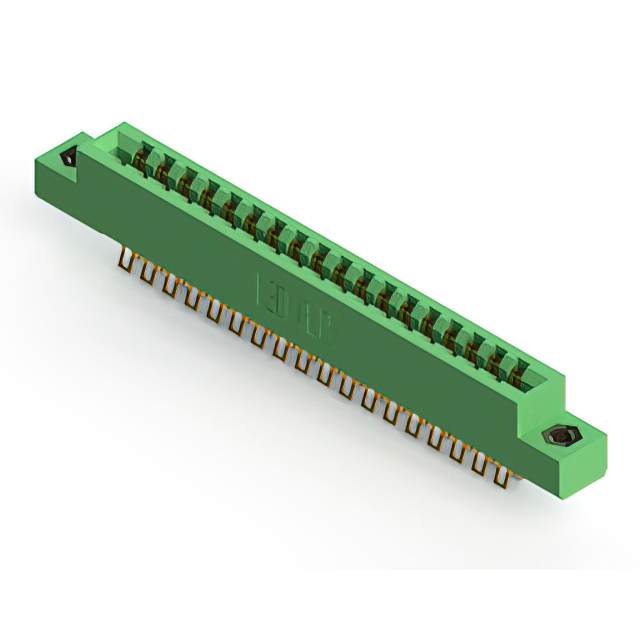

EDAC Inc. 315-036-555-207	Polyester Thermoplastic	2	Female	Gold	18	Board Edge Straddle Mount	0.25 Ám	10 Áin	Dual	-40 C	105 ░C	Semi Bellows	3.96 mm	0.156 in	Non Specified - Dual Edge	Green	36	Flush Mount M3 Threaded Insert Top Opening	Card Extender	2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm

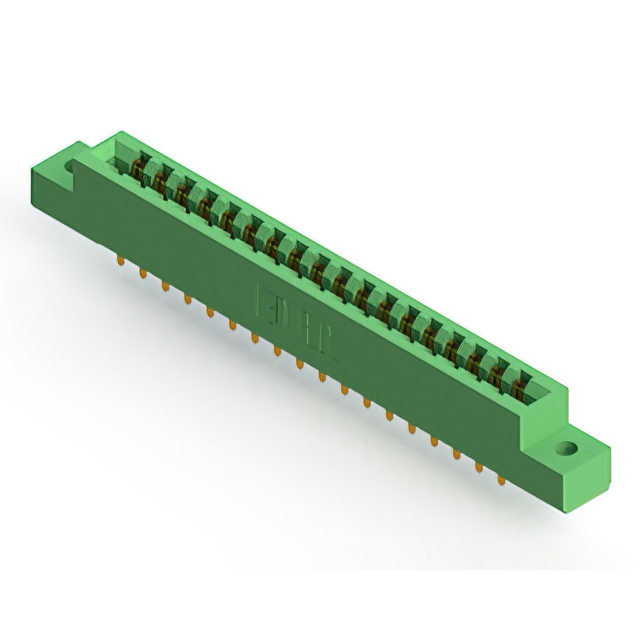

EDAC Inc. 315-036-521-202	Polyester Thermoplastic	2	Female	Gold	18	Panel Mount Through Hole	0.25 Ám	10 Áin	Dual	-40 C	105 ░C	Semi Bellows	3.96 mm	0.156 in	Non Specified - Dual Edge	Green	36	Flush Mount Top Opening Unthreaded		2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	3.25 mm	0.128 "
EDAC Inc. 315-036-555-208	Polyester Thermoplastic	2	Female	Gold	18	Board Edge Straddle Mount	0.25 Ám	10 Áin	Dual	-40 C	105 ░C	Semi Bellows	3.96 mm	0.156 in	Non Specified - Dual Edge	Green	36	4-40 Flush Mount Threaded Insert Top Opening	Card Extender	2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm

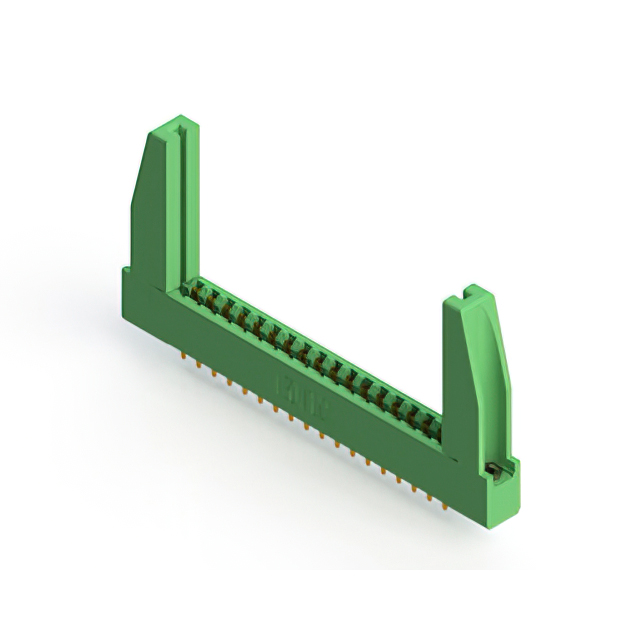

EDAC Inc. 315-036-521-278	Polyester Thermoplastic	2	Female	Gold	18	Panel Mount Through Hole	0.25 Ám	10 Áin	Dual	-40 C	105 ░C	Semi Bellows	3.96 mm	0.156 in	Non Specified - Dual Edge	Green	36	4-40 Flush Mount Threaded Insert Top Opening		2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 315-036-556-202	Polyester Thermoplastic	2	Female	Gold	18	Board Edge Straddle Mount	0.25 Ám	10 Áin	Dual	-40 C	105 ░C	Semi Bellows	3.96 mm	0.156 in	Non Specified - Dual Edge	Green	36	Flush Mount Top Opening Unthreaded	Card Extender	2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	3.25 mm	0.128 "
EDAC Inc. 315-036-520-268	Polyester Thermoplastic	2	Female	Gold	18	Panel Mount Through Hole	0.25 Ám	10 Áin	Dual	-40 C	105 ░C	Semi Bellows	3.96 mm	0.156 in	Non Specified - Dual Edge	Green	36	4-40 Flush Mount Threaded Insert Top Opening		2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 315-036-555-268	Polyester Thermoplastic	2	Female	Gold	18	Board Edge Straddle Mount	0.25 Ám	10 Áin	Dual	-40 C	105 ░C	Semi Bellows	3.96 mm	0.156 in	Non Specified - Dual Edge	Green	36	4-40 Flush Mount Threaded Insert Top Opening	Card Extender Card Guides	2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 315-036-521-268	Polyester Thermoplastic	2	Female	Gold	18	Panel Mount Through Hole	0.25 Ám	10 Áin	Dual	-40 C	105 ░C	Semi Bellows	3.96 mm	0.156 in	Non Specified - Dual Edge	Green	36	4-40 Flush Mount Threaded Insert Top Opening		2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 315-036-556-201	Polyester Thermoplastic	2	Female	Gold	18	Board Edge Straddle Mount	0.25 Ám	10 Áin	Dual	-40 C	105 ░C	Semi Bellows	3.96 mm	0.156 in	Non Specified - Dual Edge	Green	36		Card Extender	2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 315-036-555-258	Polyester Thermoplastic	2	Female	Gold	18	Board Edge Straddle Mount	0.25 Ám	10 Áin	Dual	-40 C	105 ░C	Semi Bellows	3.96 mm	0.156 in	Non Specified - Dual Edge	Green	36	4-40 Flush Mount Threaded Insert Top Opening	Card Extender Card Guides	2	Copper Alloy	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm
