7004-1512 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

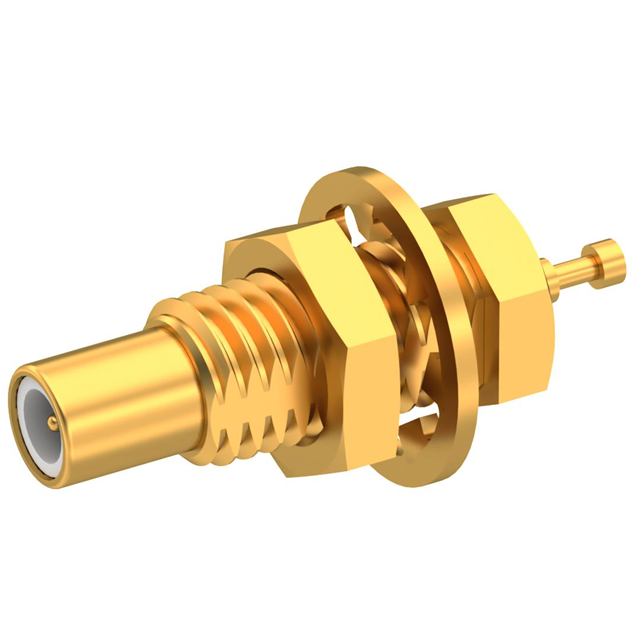

SSMC M STR BHD TUR
| Part | Mating Cycles | Includes | Body Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Plating | Dielectric Material | Mounting Feature | Contact Termination | Mounting Type | Number of Ports | Fastening Type | Center Contact Material | Shield Termination | Impedance | Connector Type | Housing Color | Connector Style | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | 1 Connector 1 Lockwasher 1 Nut | Brass | 250 V | -65 ░C | 165 °C | Gold | Gold | Polytetrafluoroethylene (PTFE) | Bulkhead - Front Side Nut | Solder | Panel Mount | 1 | Snap-On | Beryllium Copper | Solder | 50 Ohms | Jack Male Pin | Gold | SSMC | 12.4 GHz |
