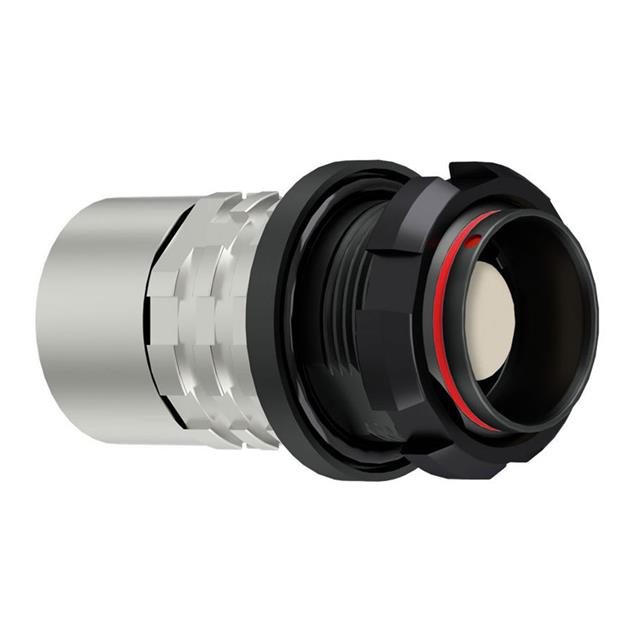

G6CWBM-P Series
Manufacturer: ODU
Beta
⌘K
ODU AMC HD RECEPT, STY 6, SZ C,
| Part | Shell Finish | Color | Cable Opening | Cable Opening | Mounting Type | Material Flammability Rating | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Fastening Type | Number of Positions | Shell Material | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Contact Material | Orientation | Ingress Protection | Primary Material | Features | Applications | Shell Size - Insert | Shielding | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ruthenium over Electroless Nickel | Black Silver | 0.197 in | 5 mm | Panel Mount | UL94 V-0 | Gold | -51 °C | 125 °C | Bulkhead - Front Side Nut | Detent Lock Push-Pull | 2 | Brass | 3 A | 50 µin | 1.27 µm | Receptacle Female Sockets | Copper Alloy | B | IP68 - Dust Tight Waterproof | Metal | Backshell | Industrial Medical Military | 00 | Shielded | Polyetheretherketone (PEEK) |
