MM3/5/9 Series

Catalog

ZENER DIODES ZENER, SOD-323F, 15V, 0.3W, 5%, AEC-Q101

Part	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Impedance (Max) (Zzt) [Max]	Current - Reverse Leakage @ Vr	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Grade	Package / Case	Tolerance	Voltage - Zener (Nom) (Vz)	Supplier Device Package	Power - Max [Max]
Diotec Semiconductor MM3Z15-AQ	1 V	Surface Mount	30 Ohms	100 nA	-50 °C	150 °C	AEC-Q101	Automotive	SC-90 SOD-323F	5 %	15 V	SOD-323F
Diotec Semiconductor MM3Z13	1 V	Surface Mount	30 Ohms	100 nA	-50 °C	150 °C			SC-90 SOD-323F	5 %	13 V	SOD-323F
Diotec Semiconductor MM5Z27		Surface Mount		50 nA	-65 °C	150 °C			SC-79 SOD-523	5 %	27 V	SOD-523	200 mW
Diotec Semiconductor MM3Z6B2-AQ		Surface Mount	50 Ohms	1 µA	-50 °C	150 °C	AEC-Q101	Automotive	SC-90 SOD-323F	2 %	6.2 V	SOD-323F
Diotec Semiconductor MM3Z39	1 V	Surface Mount	130 Ohms	100 nA	-50 °C	150 °C			SC-90 SOD-323F	5 %	39 V	SOD-323F
Diotec Semiconductor MM3Z3V0	1 V	Surface Mount	85 Ohms	50 µA	-50 °C	150 °C			SC-90 SOD-323F	5 %	3 V	SOD-323F
Diotec Semiconductor MM5Z3V0		Surface Mount	85 Ohms	10 µA	-65 °C	150 °C			SC-79 SOD-523	5 %	3 V	SOD-523	200 mW
Diotec Semiconductor MM5Z11		Surface Mount	20 Ohms	100 nA	-65 °C	150 °C			SC-79 SOD-523	5 %	11 V	SOD-523	200 mW
Diotec Semiconductor MM5Z13-AQ		Surface Mount	30 Ohms	100 nA	-65 °C	150 °C	AEC-Q101	Automotive	SC-79 SOD-523	5 %	13.25 V	SOD-523	200 mW

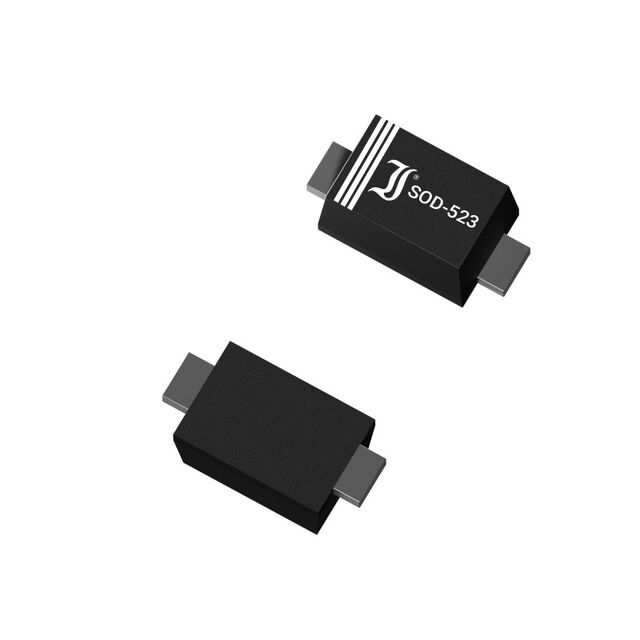

Diotec Semiconductor MM5Z10B		Surface Mount	30 Ohms	100 nA	-55 °C	150 °C			SC-79 SOD-523	2 %	10 V	SOD-523	200 mW
