1067-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

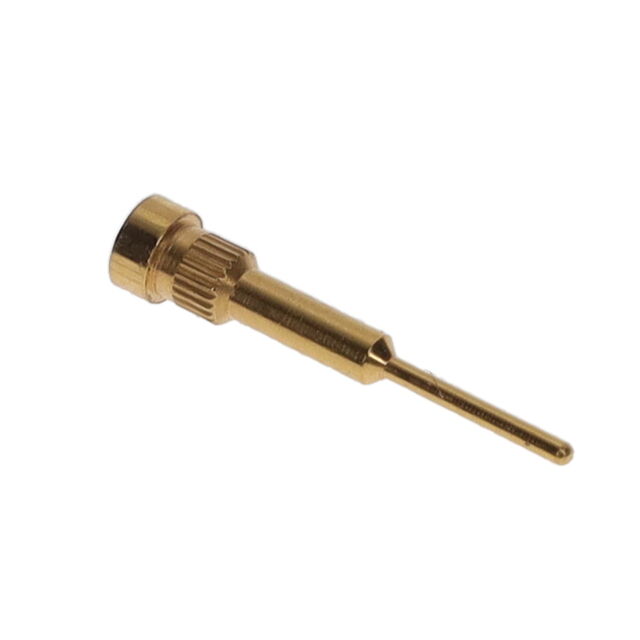

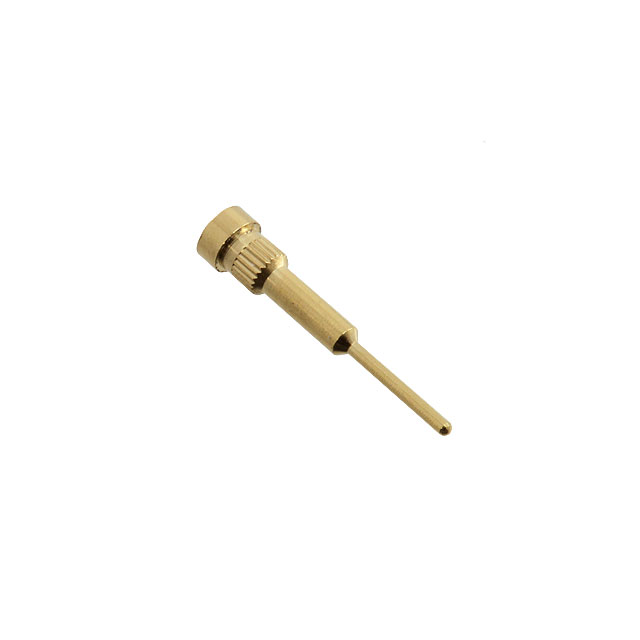

CONN PC PIN CIRC 0.018DIA GOLD
| Part | Length - Above Flange [x] | Length - Above Flange | Contact Finish | Insulation | Length - Overall [x] | Length - Overall [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Terminal Style | Contact Material | Terminal Type | Termination | Mounting Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.34 in | 8.64 mm | Gold | Non-Insulated | 0.371 in | 9.42 mm | 0.072 " | 1.83 mm | 0.018 in | 0.46 mm | Single End | Brass Alloy | PC Pin | Knurled Press-Fit | Through Hole | 0.055 in | 1.4 mm | 0.25 Ám | 10 Áin |
 Mill-Max Manufacturing Corp. | 0.34 in | 8.64 mm | Gold | Non-Insulated | 0.371 in | 9.42 mm | 0.072 " | 1.83 mm | 0.018 in | 0.46 mm | Single End | Brass Alloy | PC Pin | Knurled Press-Fit | Through Hole | 0.055 in | 1.4 mm | 0.51 µm | 20 µin |
 Mill-Max Manufacturing Corp. | 0.34 in | 8.64 mm | Gold | Non-Insulated | 0.371 in | 9.42 mm | 0.072 " | 1.83 mm | 0.018 in | 0.46 mm | Single End | Brass Alloy | PC Pin | Knurled Press-Fit | Through Hole | 0.055 in | 1.4 mm | 1.27 µm | 50 µin |
