AMP M Series Series
Manufacturer: TE Connectivity AMP Connectors
Catalog
SERIES "M" MIN RECT GUIDE PIN
...
| Part | Specifications | For Use With/Related Products | Accessory Type | Mounting Type | Color | Connector Usage | Number of Positions | Number of Rows [custom] | Pitch | Pitch | Number of Rows | Features | Connector Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Pin or Socket | Type | Contact Termination | Wire Gauge [Min] | Wire Gauge [Max] | Note | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

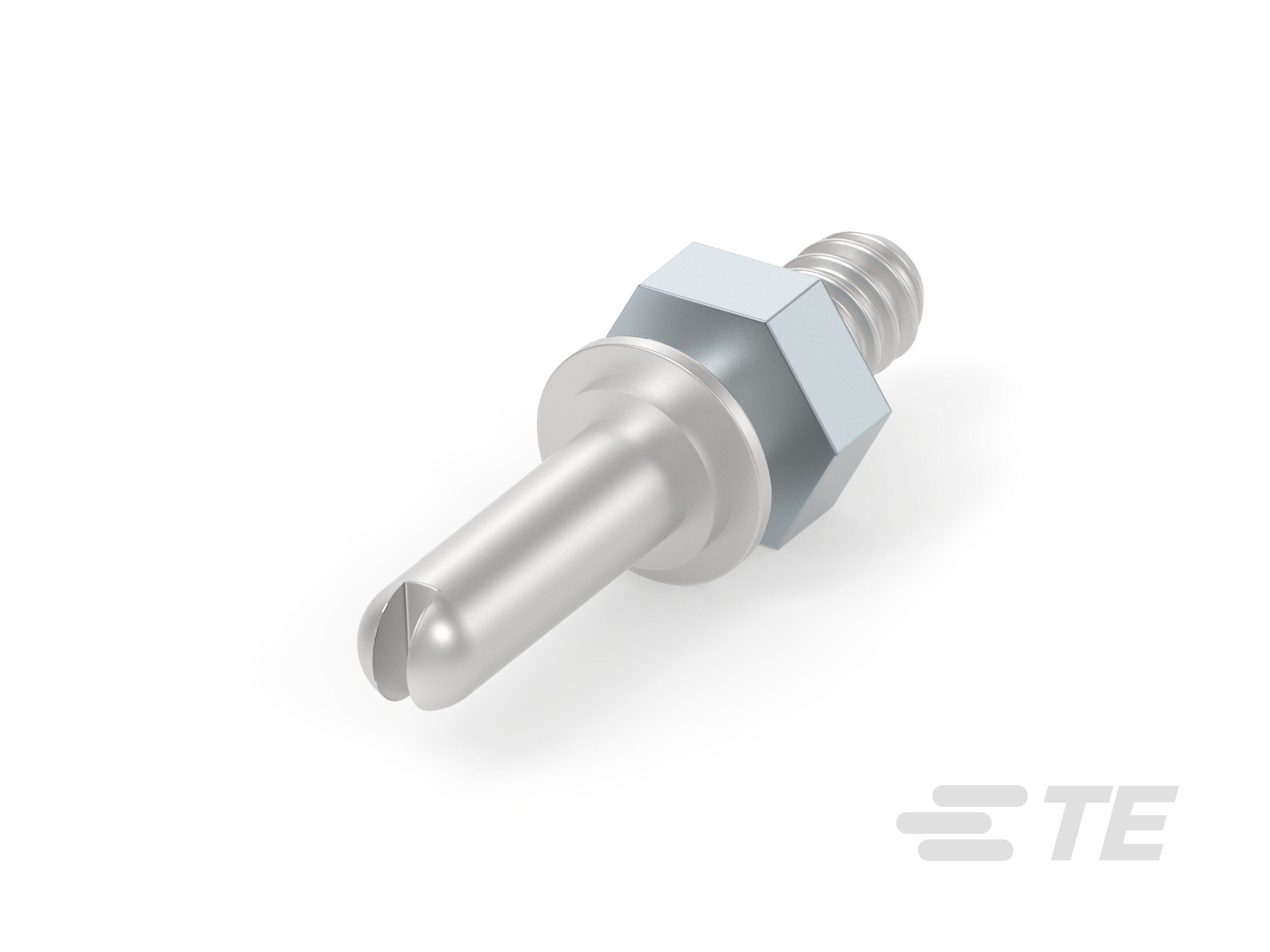

 TE Connectivity AMP Connectors | 6-32 Thread | M Series | Guide Pin | |||||||||||||||||||||
 TE Connectivity AMP Connectors | Panel Mount | Blue | Receptacle | 14 | 3 | 3.81 mm | 0.15 in | |||||||||||||||||

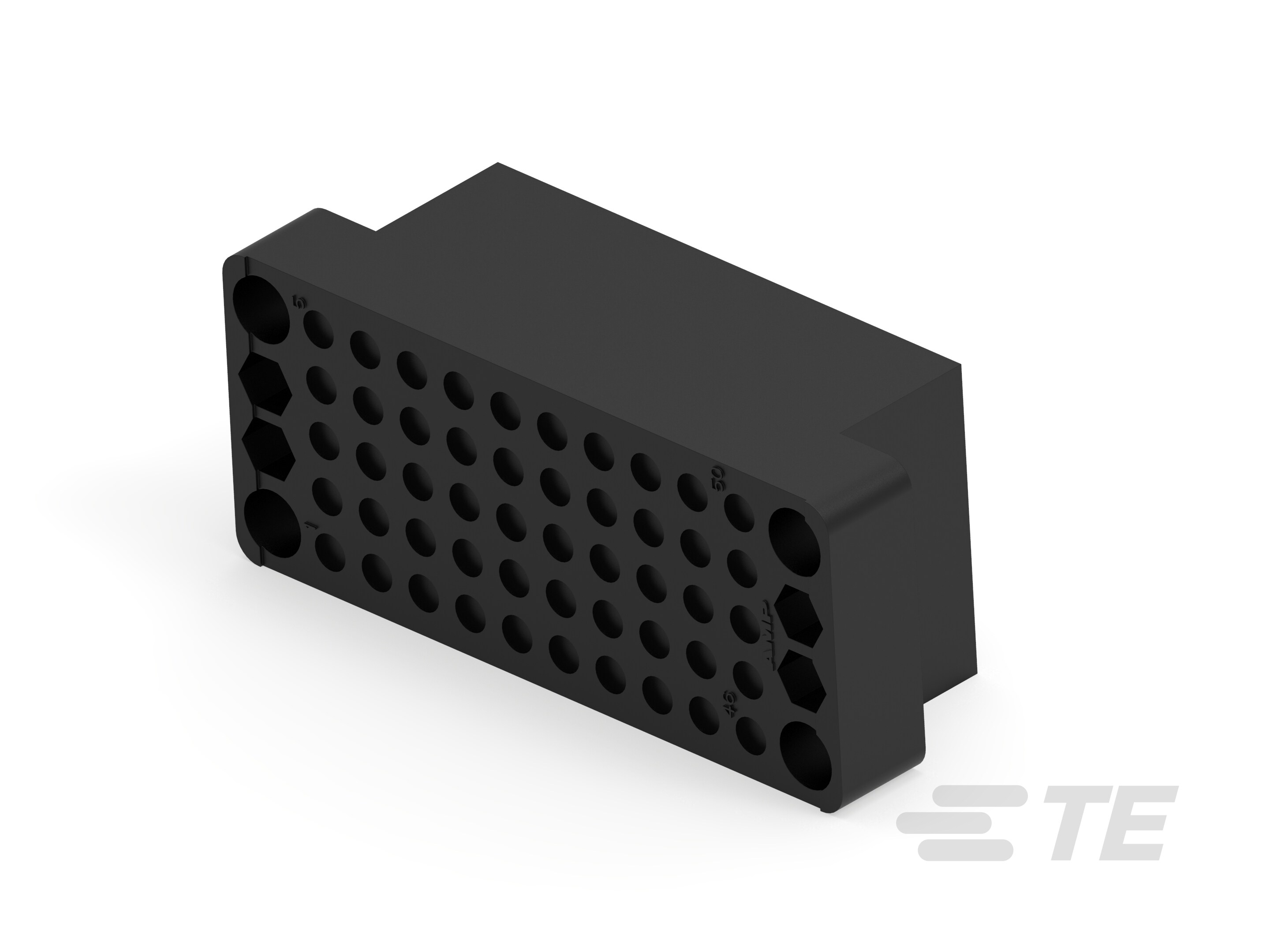

 TE Connectivity AMP Connectors | Panel Mount | Black | Plug | 50 | 5.08 mm | 0.2 in | 5 | Jackscrew Socket | Housing for Female Sockets | |||||||||||||||

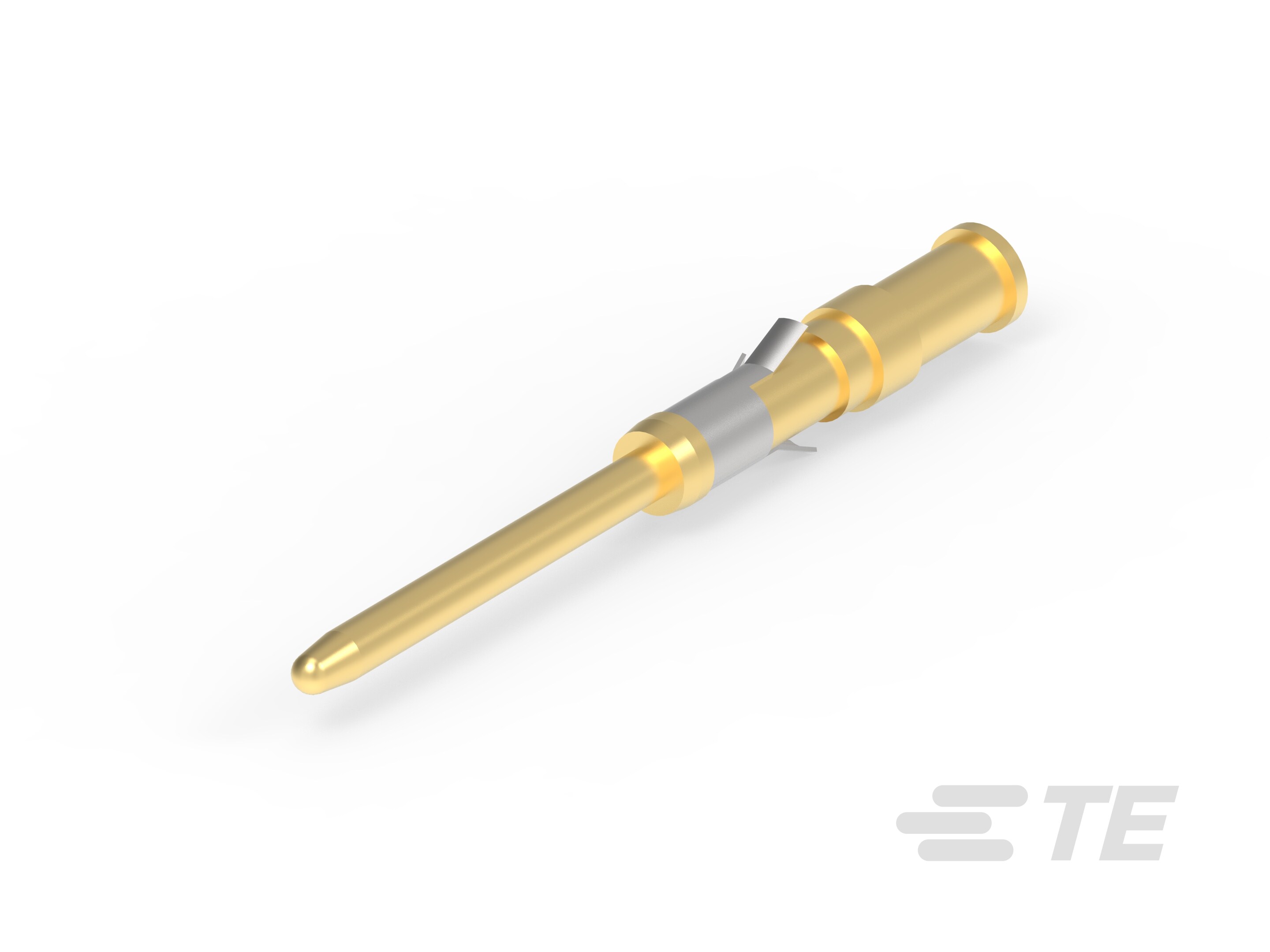

 TE Connectivity AMP Connectors | Gold | 30 Áin | 0.76 Ám | Copper Alloy | Pin | Machined | Crimp | 16 AWG | 18 AWG | |||||||||||||||

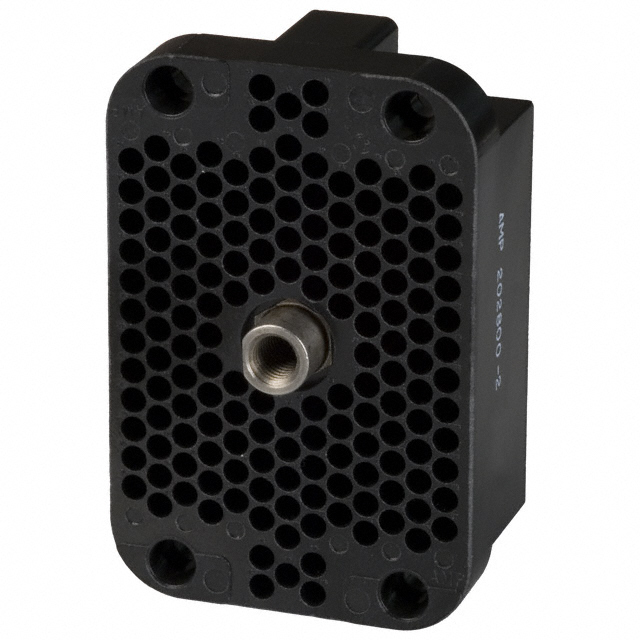

 TE Connectivity AMP Connectors | Panel Mount | Black | Receptacle | 160 | 13 | Jackscrew Socket | Contacts Not Included | |||||||||||||||||
 TE Connectivity AMP Connectors | Gold PdNi +Gold | 30 Áin | 0.76 Ám | Brass | Socket | Stamped | Wire Wrap | |||||||||||||||||
 TE Connectivity AMP Connectors | Metal | M Series | Shield | |||||||||||||||||||||
 TE Connectivity AMP Connectors | Panel Mount | Black | Plug | 6 | 2 | 3.81 mm | 0.15 in | Contacts Not Included | ||||||||||||||||
 TE Connectivity AMP Connectors | Gold | 30 Áin | 0.76 Ám | Copper Alloy | Pin | Machined | Crimp | 14.5 AWG | ||||||||||||||||

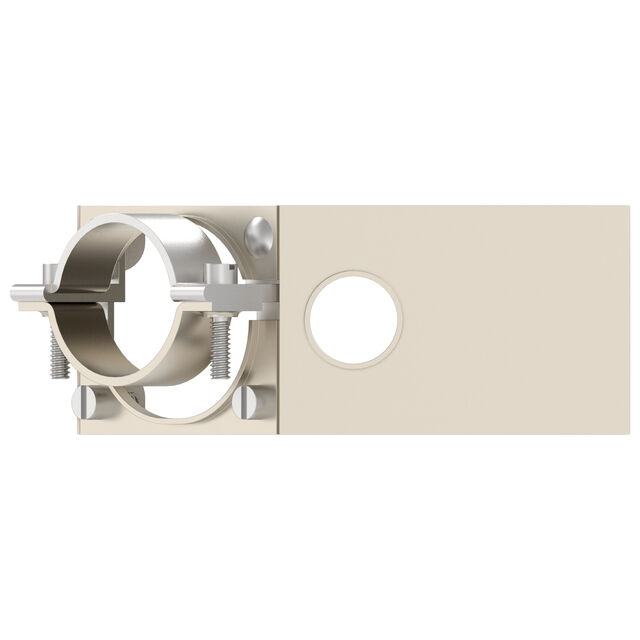

 TE Connectivity AMP Connectors | M Series | Strain Relief |
