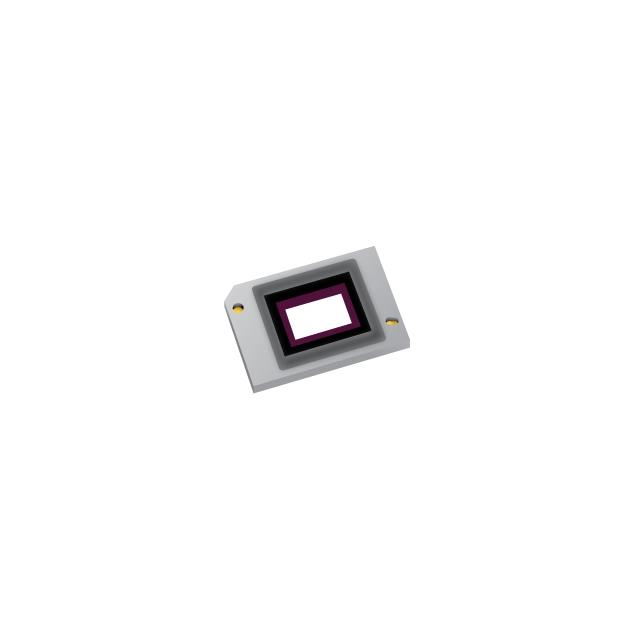

DLP650LNIR Series
0.65-inch 4K UHD HSSI DLP® digital micromirror device (DMD)
Manufacturer: Texas Instruments
Catalog
0.65-inch 4K UHD HSSI DLP® digital micromirror device (DMD)
Key Features
• 1280 × 800 (WXGA) Array with >1 Million Micromirrors10.8 µm Micromirror Pitch±12° Micromirror Tilt Angle (Relative to Flat State)0.65-Inch Diagonal Array Designed for Corner Illumination0.5 °C/W Thermal Resistance High Efficiency PackageEfficient Steering of NIR Light ( 800 nm to 2000 nm)Up to 160-W Incident on DMDWindow Transmission Efficiency >98% (950 nm to 1150 nm, Single Pass, Two Window Surfaces)Window Transmission Efficiency >93% (850 nm to 2000 nm, Single Pass, Two Window Surfaces)Polarization Independent Aluminum Micromirrors16-Bit, 2xLVDS, 400-MHz Input Data BusDedicated DLPC410 Controller, DLPR410 PROM, and DLPA200 Micromirror Driver for Reliable High Speed OperationBinary Pattern Rates up to 12,500 HzGlobal, Single, Dual, and Quad Block Mirror Clocking Pulse (Reset) Operational Modes1280 × 800 (WXGA) Array with >1 Million Micromirrors10.8 µm Micromirror Pitch±12° Micromirror Tilt Angle (Relative to Flat State)0.65-Inch Diagonal Array Designed for Corner Illumination0.5 °C/W Thermal Resistance High Efficiency PackageEfficient Steering of NIR Light ( 800 nm to 2000 nm)Up to 160-W Incident on DMDWindow Transmission Efficiency >98% (950 nm to 1150 nm, Single Pass, Two Window Surfaces)Window Transmission Efficiency >93% (850 nm to 2000 nm, Single Pass, Two Window Surfaces)Polarization Independent Aluminum Micromirrors16-Bit, 2xLVDS, 400-MHz Input Data BusDedicated DLPC410 Controller, DLPR410 PROM, and DLPA200 Micromirror Driver for Reliable High Speed OperationBinary Pattern Rates up to 12,500 HzGlobal, Single, Dual, and Quad Block Mirror Clocking Pulse (Reset) Operational Modes
Description
AI
The TI DLP DLP650LEdigital micromirror device (DMD)is a digitally controlled micro-electro-mechanical system (MEMS) spatial light modulator (SLM) that enables bright, affordable WXGA display solutions. The DLP650LE DMD—together with the DLPC4420 display controller, the DLPA100 power and motor driver, and the DLPA200 DMD micromirror driver—provides the capability to achieve high performance systems, and is a great fit for display applications that require 16:10 wide aspect ratio, high brightness, and system simplicity. The DLP650LE DMD can also use the DLPC4430 as a display controller.
The DMD ecosystem includes established resources to help the user accelerate the design cycle, visit theDLP® Products third-party search toolsto find approved optical module manufacturers and third party providers.
VisitGetting Started With TI DLP Display Technologyto learn more about how to start designing with the DMD.
The TI DLP DLP650LEdigital micromirror device (DMD)is a digitally controlled micro-electro-mechanical system (MEMS) spatial light modulator (SLM) that enables bright, affordable WXGA display solutions. The DLP650LE DMD—together with the DLPC4420 display controller, the DLPA100 power and motor driver, and the DLPA200 DMD micromirror driver—provides the capability to achieve high performance systems, and is a great fit for display applications that require 16:10 wide aspect ratio, high brightness, and system simplicity. The DLP650LE DMD can also use the DLPC4430 as a display controller.
The DMD ecosystem includes established resources to help the user accelerate the design cycle, visit theDLP® Products third-party search toolsto find approved optical module manufacturers and third party providers.
VisitGetting Started With TI DLP Display Technologyto learn more about how to start designing with the DMD.
