200MSP2 Series

Manufacturer: E-Switch

Catalog

SWITCH TOGGLE SPDT 3A 120V

Part	Actuator Material	Electrical Life (Cycles)	Termination Style	Switch Function	Voltage Rating - DC	Voltage Rating - AC	Actuator Type	Current Rating	Illumination	Features	Operating Temperature (Max)	Operating Temperature (Min)	Bushing Thread	Mounting Type	Actuator Length	Circuit	Panel Cutout Diameter	Panel Cutout Shape
E-Switch 200MSP2T2B4M6QE	Brass Chrome Plated	30000 Cycles	PC Pin	On-Mom	28 V	120 V	Standard Round	3 A	Non-Illuminated	Epoxy Sealed Terminals	85 °C	-30 °C	Unthreaded	Right Angle Through Hole	5.33 mm	SPDT
E-Switch 200MSP2T2B2M7QE	Brass Chrome Plated	30000 Cycles	PC Pin	On-Mom	28 V	120 V	Standard Round	3 A	Non-Illuminated	Epoxy Sealed Terminals	85 °C	-30 °C	Unthreaded	Right Angle Through Hole Vertical	5.33 mm	SPDT

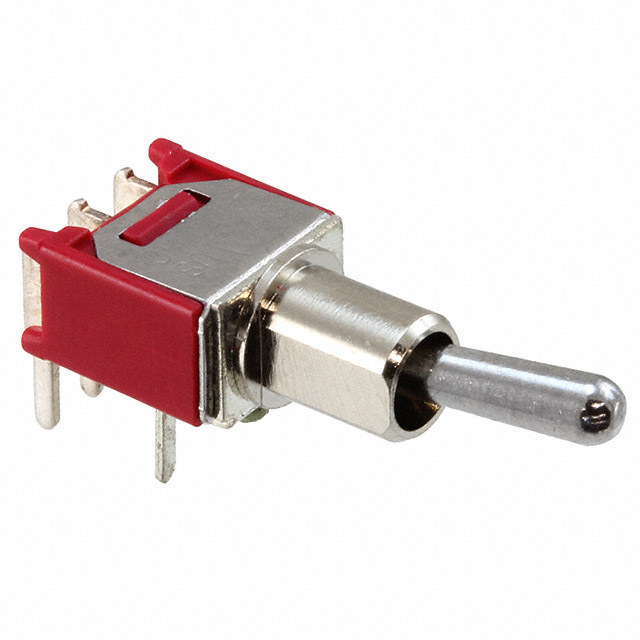

E-Switch 200MSP2T3B2M6QE	Brass Chrome Plated	30000 Cycles	PC Pin	On-Mom	28 V	120 V	Standard Round	3 A	Non-Illuminated	Epoxy Sealed Terminals	85 °C	-30 °C	Unthreaded	Right Angle Through Hole	7.37 mm	SPDT
E-Switch 200MSP2T2B1M1QE	Brass Chrome Plated	30000 Cycles	Solder Lug	On-Mom	28 V	120 V	Standard Round	3 A	Non-Illuminated	Epoxy Sealed Terminals	85 °C	-30 °C	10-48	Panel Mount	5.33 mm	SPDT	4.95 mm	Circular
E-Switch 200MSP2T1B1M6QE	Brass Chrome Plated	30000 Cycles	PC Pin	On-Mom	28 V	120 V	Standard Round	3 A	Non-Illuminated	Epoxy Sealed Terminals	85 °C	-30 °C	10-48	Panel Mount Right Angle	9.4 mm	SPDT	4.95 mm	Circular

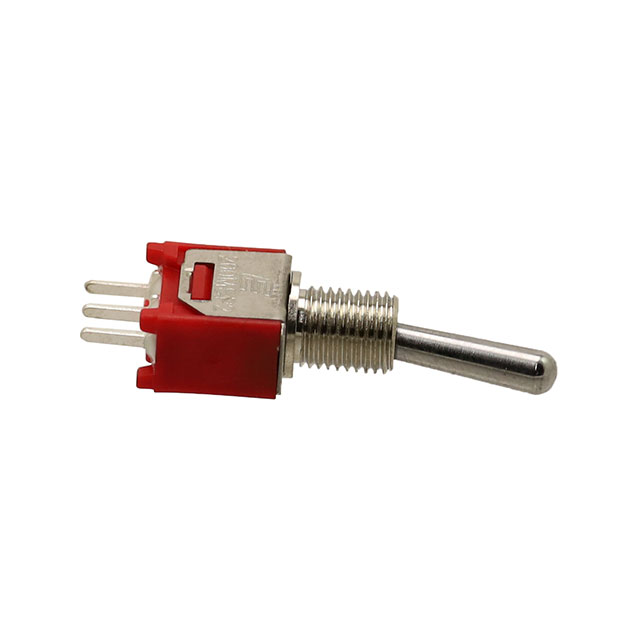

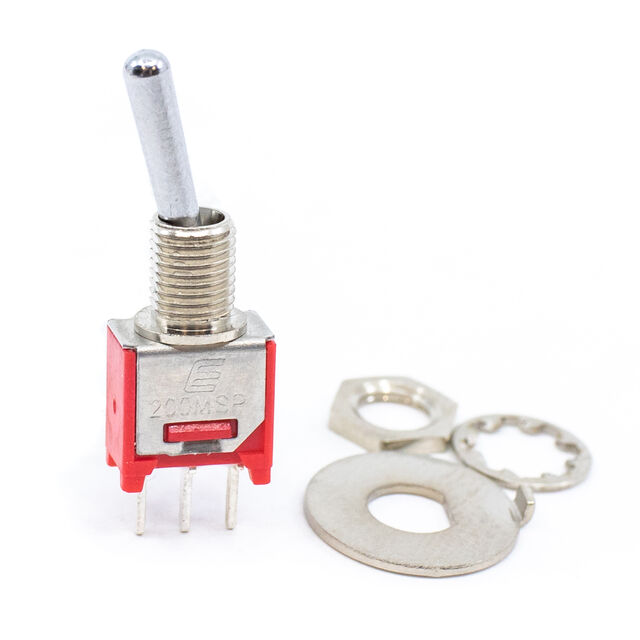

E-Switch 200MSP2T1B1M2QE	Brass Chrome Plated	30000 Cycles	PC Pin	On-Mom	28 V	120 V	Standard Round	3 A	Non-Illuminated	Epoxy Sealed Terminals	85 °C	-30 °C	10-48	Panel Mount	9.4 mm	SPDT	4.95 mm	Circular
E-Switch 200MSP2T2B2M7RE	Brass Chrome Plated	30000 Cycles	PC Pin	On-Mom	20 V	20 V	Standard Round	0.4 VA	Non-Illuminated	Epoxy Sealed Terminals	85 °C	-30 °C	Unthreaded	Right Angle Through Hole Vertical	5.33 mm	SPDT
E-Switch 200MSP2T2B1M2RE	Brass Chrome Plated	30000 Cycles	PC Pin	On-Mom	20 V	20 V	Standard Round	0.4 VA	Non-Illuminated	Epoxy Sealed Terminals	85 °C	-30 °C	10-48	Panel Mount	5.33 mm	SPDT	4.95 mm	Circular
E-Switch 200MSP2T1B5M2QE	Brass Chrome Plated	30000 Cycles	PC Pin	On-Mom	28 V	120 V	Standard Round	3 A	Non-Illuminated	Epoxy Sealed Terminals	85 °C	-30 °C	1/4-40	Panel Mount	9.4 mm	SPDT	0.25 "	Circular
