R71QW Series
Manufacturer: KEMET
Beta
⌘K

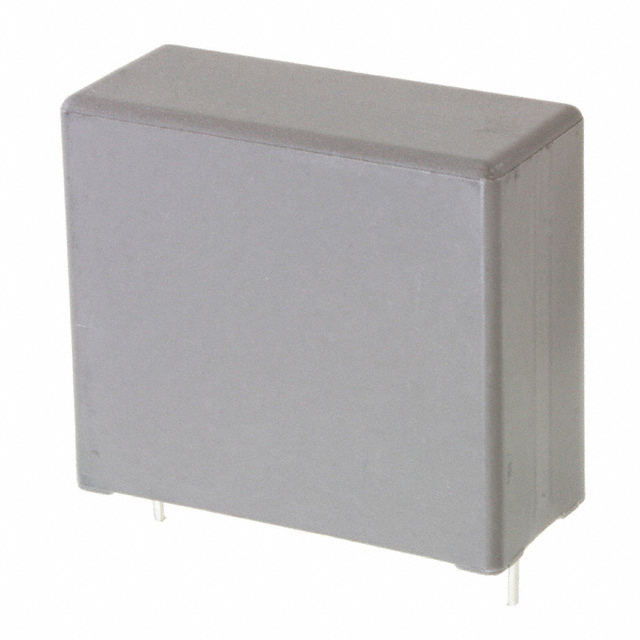

CAP FILM 2.2UF 5% 1KVDC RADIAL
| Part | Voltage Rating - DC | Voltage Rating - DC | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Voltage Rating - AC | Lead Spacing | Lead Spacing | Capacitance | Dielectric Material | Applications | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Tolerance | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 1 kV | 1 kVDC | 28.6 mm | 1.126 in | 1.634 in | 41.5 mm | 0.63 " | 16 mm | 275 V | 37.5 mm | 1.476 in | 2.2 µF | Polypropylene (PP) Metallized | DV/DT High Frequency High Pulse Power Factor Correction (PFC) Switching | Through Hole | -40 C | 110 °C | Radial | 5 % | PC Pins |
