FI Series

Catalog

FFC & FPC CONNECTORS 25P PCB TO CABLE LCD COMPATIBLE

Part	Contact Type	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Style	Insulation Color	Shrouding	Connector Type	Number of Rows	Contact Shape	Fastening Type	Features	Voltage Rating	Contact Finish - Post	Number of Positions	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Finish - Mating	Mounting Type	Termination	Insulation Height	Insulation Height	Contact Material	Note	Contact Termination	Insulation Material	Pitch	Pitch	Color
JAE Electronics FI-S25P-HFE-E1500	Male Pin	0.049 in	1.25 mm	1 A	Board to Cable/Wire	Beige	Shrouded - 4 Wall	Receptacle	1	Square	Friction Lock	Solder Retention	200 V	Tin Tin-Alloy	25	UL94 V-0	80 °C	-40 C	All	Gold	Right Angle Surface Mount	Solder	1.8 mm	0.071 in	Copper Alloy

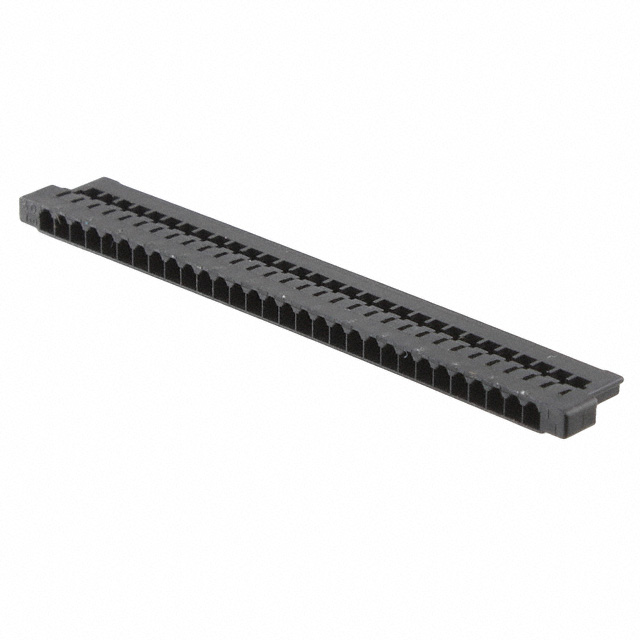

JAE Electronics FI-S30S	Female Socket							Plug	1		Friction Lock				30		80 °C	-40 C			Free Hanging (In-Line)					Contacts Not Included	Crimp	Glass Filled Nylon 6/6 Polyamide (PA66)	0.049 in	1.25 mm	Black
JAE Electronics FI-S20P-HFE	Male Pin	0.049 in	1.25 mm	1 A	Board to Cable/Wire	Beige	Shrouded - 4 Wall	Receptacle	1	Square	Friction Lock	Solder Retention	200 V	Tin Tin-Alloy	20	UL94 V-0	80 °C	-40 C	All	Gold	Right Angle Surface Mount	Solder	1.8 mm	0.071 in	Copper Alloy
