895-132 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 132POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Number of Rows [custom]	Number of Positions/Bay/Row	Pitch	Pitch	Contact Material	Number of Positions	Contact Finish	Mounting Type	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Gender	Contact Finish Thickness	Contact Finish Thickness	Card Type	Color

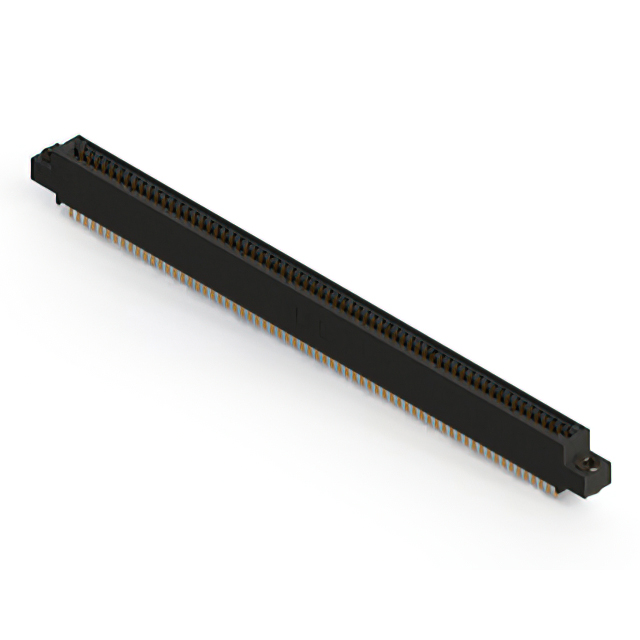

EDAC Inc. 895-132-525-503	2	Polyphenylene Sulfide (PPS)	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	2	66	0.1 "	2.54 mm	Copper Alloy	132	Gold	Through Hole	Dual	125 °C	-40 C	Solder	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Black
EDAC Inc. 895-132-559-802	2	Polyphenylene Sulfide (PPS)		0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	2	66	0.1 "	2.54 mm	Copper Alloy	132	Gold	Right Angle Through Hole	Dual	125 °C	-40 C	Solder	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Black

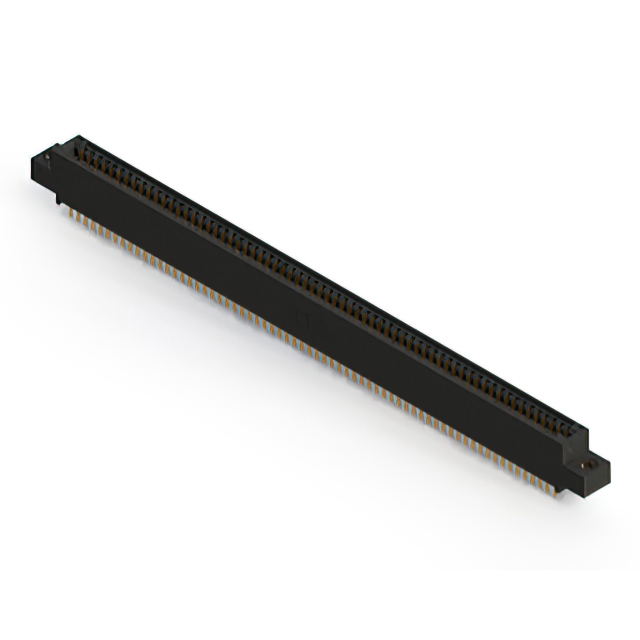

EDAC Inc. 895-132-525-508	2	Polyphenylene Sulfide (PPS)	4-40 Threaded Insert Top Mount Opening			0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	2	66	0.1 "	2.54 mm	Copper Alloy	132	Gold	Through Hole	Dual	125 °C	-40 C	Solder	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Black

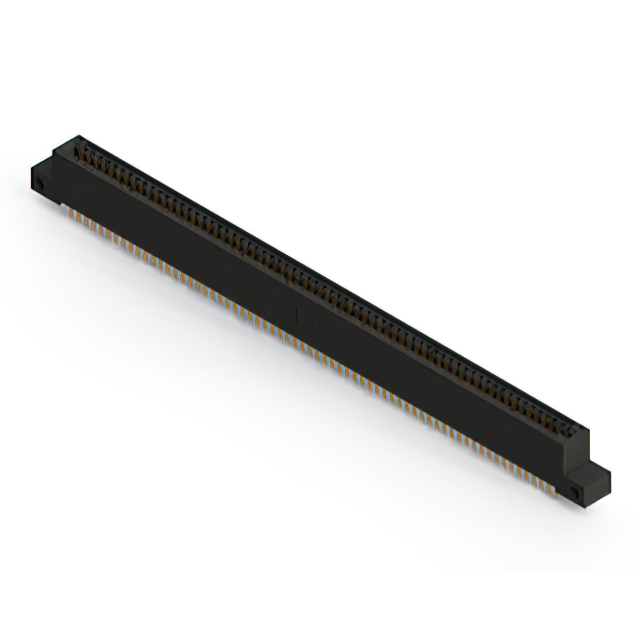

EDAC Inc. 895-132-525-212	2	Polyphenylene Sulfide (PPS)	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	2	66	0.1 "	2.54 mm	Copper Alloy	132	Gold	Through Hole	Dual	125 °C	-40 C	Solder	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Black

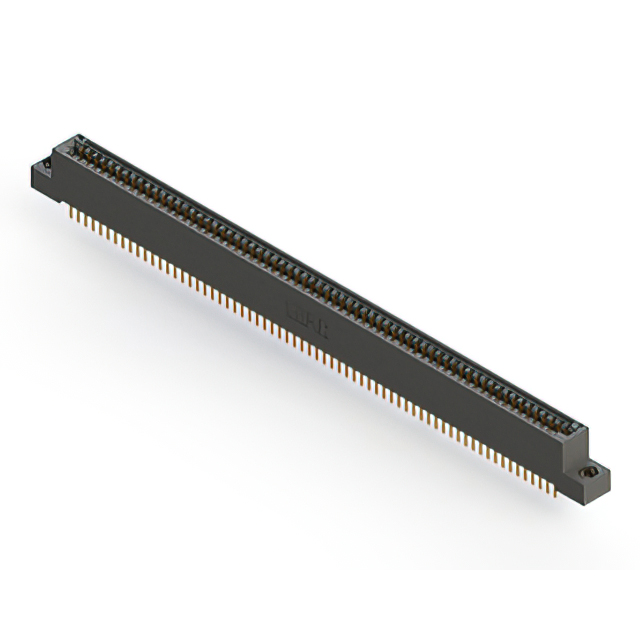

EDAC Inc. 895-132-520-208	2	Polyphenylene Sulfide (PPS)	4-40 Flush Mount Threaded Insert Top Opening			0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	2	66	0.1 "	2.54 mm	Copper Alloy	132	Gold	Through Hole	Dual	125 °C	-40 C	Solder	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Black
EDAC Inc. 895-132-558-807	2	Polyphenylene Sulfide (PPS)	M3 Threaded Insert Top Mount Opening			0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	2	66	0.1 "	2.54 mm	Copper Alloy	132	Gold	Right Angle Through Hole	Dual	125 °C	-40 C	Solder	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Black
EDAC Inc. 895-132-542-803	2	Polyphenylene Sulfide (PPS)	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	2	66	0.1 "	2.54 mm	Copper Alloy	132	Gold	Through Hole	Dual	125 °C	-40 C	Wire Wrap	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Black
EDAC Inc. 895-132-558-812	2	Polyphenylene Sulfide (PPS)	Side Mount Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	2	66	0.1 "	2.54 mm	Copper Alloy	132	Gold	Right Angle Through Hole	Dual	125 °C	-40 C	Solder	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Black
EDAC Inc. 895-132-542-203	2	Polyphenylene Sulfide (PPS)	Floating Bobbin Flush Mount	0.116 "	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	2	66	0.1 "	2.54 mm	Copper Alloy	132	Gold	Through Hole	Dual	125 °C	-40 C	Wire Wrap	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Black
EDAC Inc. 895-132-500-812	2	Polyphenylene Sulfide (PPS)	Side Mount Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	2	66	0.1 "	2.54 mm	Copper Alloy	132	Gold	Through Hole	Dual	125 °C	-40 C	Solder Eyelet(s)	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Black
