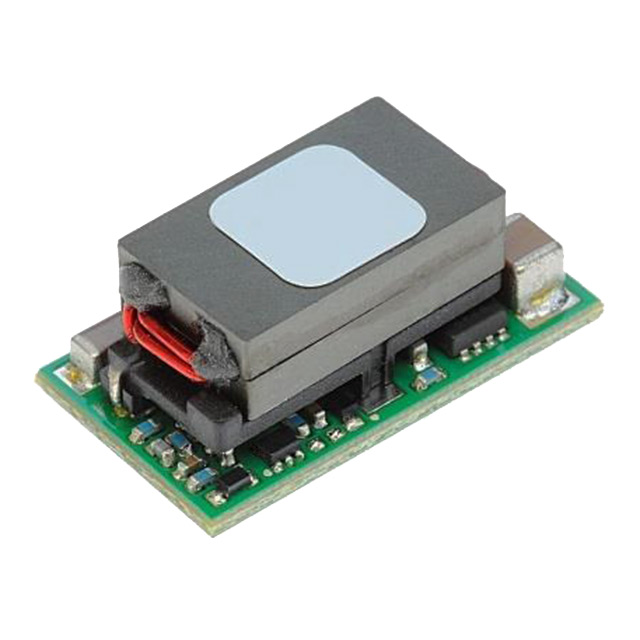

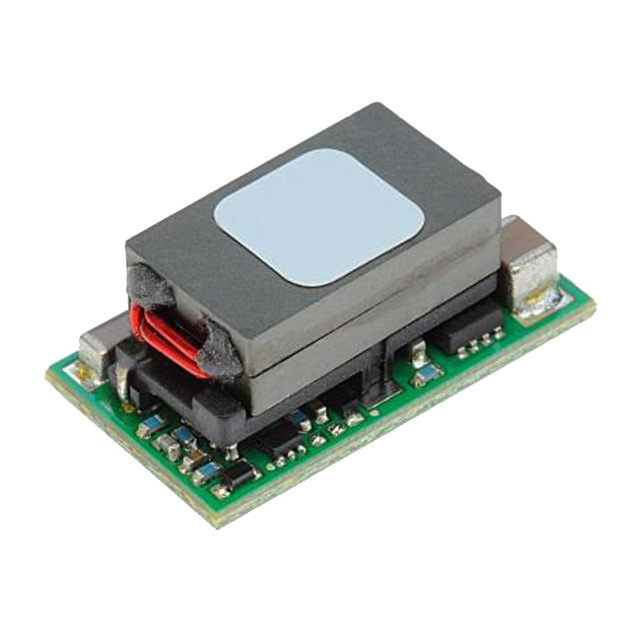

IND045 Series
Manufacturer: OmniOn Power™
Beta
⌘K
DC DC CONVERTER 3-18V 45W
| Part | Power (Watts) | Number of Outputs | Package / Case | Supplier Device Package | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Type | Current - Output (Max) | Voltage - Input (Max) [Max] | Applications | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Control Features | Features | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | 45 W | 1 | 6-SMD Module | 6-SMD | 8.5 mm | 0.8 " | 0.45 in | 20.3 mm | 11.4 mm | 0.33 in | Non-Isolated PoL Module | 5 A | 28.8 V | ITE (Commercial) | Surface Mount | 105 C | -40 °C | 19.2 V | 18 V | 3 V | Active Low Enable | OCP Remote On/Off | 95.8 % |
 OmniOn Power™ | 45 W | 1 | 6-SMD Module | 6-SMD | 8.5 mm | 0.8 " | 0.45 in | 20.3 mm | 11.4 mm | 0.33 in | Non-Isolated PoL Module | 5 A | 14.4 V | ITE (Commercial) | Surface Mount | 105 C | -40 °C | 9.6 V | 9 V | 3 V | Active Low Enable | OCP Remote On/Off | 93.3 % |
OmniOn Power™ | 45 W | 1 | 6-SMD Module | 6-SMD | 8.5 mm | 0.8 " | 0.45 in | 20.3 mm | 11.4 mm | 0.33 in | Non-Isolated PoL Module | 5 A | 14.4 V | ITE (Commercial) | Surface Mount | 105 C | -40 °C | 9.6 V | 9 V | 3 V | Active Low Enable | OCP Remote On/Off | 93.3 % |
