2029152 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

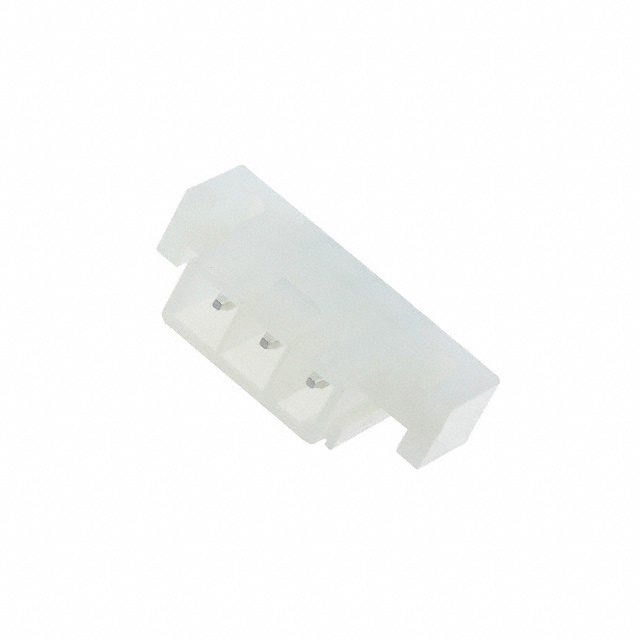

CONN HEADER R/A 3POS 4.2MM
| Part | Current Rating (Amps) | Shrouding | Insulation Material | Voltage Rating | Number of Rows | Contact Material | Applications | Contact Length - Post | Contact Length - Post | Termination | Mounting Type | Number of Positions Loaded | Insulation Color | Contact Type | Connector Type | Style | Material Flammability Rating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Features | Contact Finish - Post | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 9 A | Shrouded - 4 Wall | Nylon Polyamide (PA) | 600 VAC | 1 | Brass | General Purpose Industrial Lighting | 3.5 mm | 0.138 in | Solder | Through Hole Right Angle | All | Natural | Male Pin | Header | Board to Cable/Wire | UL94 V-2 | Locking Ramp | -40 °C | 105 ░C | Square | Board Guide | Tin | 4.2 mm | 0.165 in |
