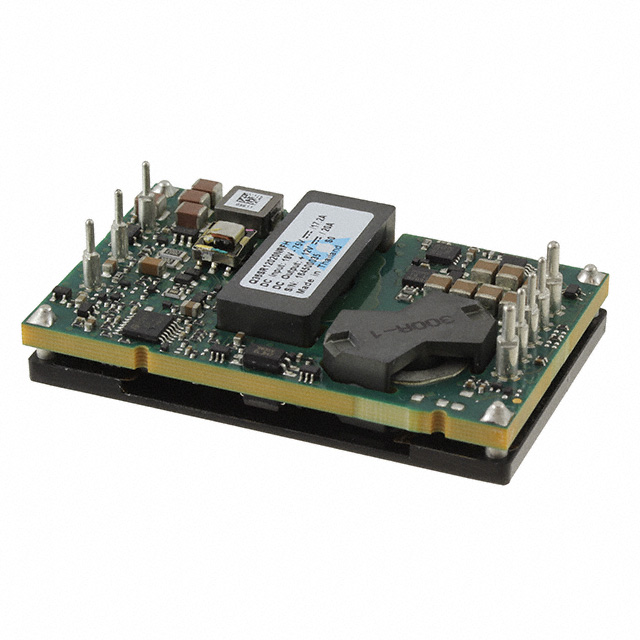

Q36SR Series
Manufacturer: Delta Electronics
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC/DC CONVERTER, 1/4 BRICK, 12VOUT, 17A
| Part | Package / Case | Control Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Efficiency | Number of Outputs | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Mounting Type | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Features | Voltage - Output 1 | Type | Applications | Voltage - Isolation | Power (Watts) | Supplier Device Package | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 8-DIP Module 1/4 Brick | Active Low Enable | 85 °C | -40 C | 75 V | 93 % | 1 | 0.46 in | 2.3 in | 1.45 in | 58.4 mm | 11.7 mm | 36.8 mm | Through Hole | 17 A | 18 V | OCP OTP OVP Remote On/Off UVLO | 12 V | Isolated Module | ITE (Commercial) | 1.5 kV | 204 W | |||
 Delta Electronics | Quarter Brick | 85 °C | -40 °C | 75 V | 93.5 % | 1 | 0.5 in | 2.3 in | 1.45 in | 58.4 mm | Through Hole | 20 A | 18 V | OCP OTP OVP Remote On/Off UVLO | 12 V | Isolated Module | ITE (Commercial) | 2250 VDC | 240 Watts | Quarter Brick | 12.7 mm | 36.8 mm |
