OA2547AN Series
Manufacturer: ORION FANS
Beta
⌘K

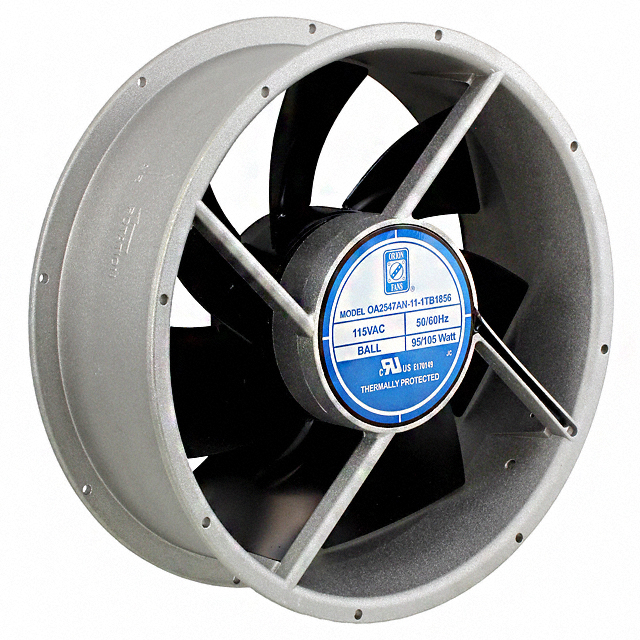

AC AXIAL FAN, 1000 CFM, BALL BEARING, 3250 RPM, 70 DB, 230 V, 254 X 89 MM, OA2547 SERIES
| Part | Material - Blade | Lifetime @ Temp. | Material - Frame | RPM | Approval Agency | Voltage - Rated | Ingress Protection | Width [y] | Weight [custom] | Weight [custom] | Air Flow | Air Flow | Power (Watts) | Fan Type | Features | Bearing Type | Termination | Static Pressure | Static Pressure | Size / Dimension | Size / Dimension [diameter] | Voltage Range [Max] | Voltage Range [Min] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Metal | 50000 Hrs | Aluminum | 3250 RPM | cURus TUV | 230 VAC | IP56 - Dust Protected Water Resistant | 89 mm | 2.7 kg | 5.9 lbs | 28 mł/min | 1000 CFM | 105 W | Tubeaxial | Capacitor Thermal Overload Protector (TOP) | Ball | 2 Wire Leads | 0.6 in H2O | 149.5 Pa | Round | 10 in | |||
 ORION FANS | Metal | 50000 Hrs | Aluminum | 3250 RPM | cURus TUV | 115 VAC | IP56 - Dust Protected Water Resistant | 89 mm | 2.7 kg | 5.9 lbs | 28 mł/min | 1000 CFM | 105 W | Tubeaxial | Capacitor Thermal Overload Protector (TOP) | Ball | 0.6 in H2O | 149.5 Pa | Round | 10 in | 120 VAC | 100 VAC | 2 | |
 ORION FANS | Metal | 50000 Hrs | Aluminum | 3250 RPM | cURus TUV | 230 VAC | IP56 - Dust Protected Water Resistant | 89 mm | 2.7 kg | 5.9 lbs | 28 mł/min | 1000 CFM | 105 W | Tubeaxial | Capacitor Thermal Overload Protector (TOP) | Ball | 0.6 in H2O | 149.5 Pa | Round | 10 in | 2 | |||
ORION FANS | Metal | 50000 Hrs | Aluminum | 3250 RPM | cURus TUV | 115 VAC | IP56 - Dust Protected Water Resistant | 89 mm | 2.7 kg | 5.9 lbs | 28 mł/min | 1000 CFM | 105 W | Tubeaxial | Capacitor Thermal Overload Protector (TOP) | Ball | 2 Wire Leads | 0.6 in H2O | 149.5 Pa | Round | 10 in | 120 VAC | 100 VAC |
