ACR Series
Manufacturer: Abracon LLC
Beta
⌘K

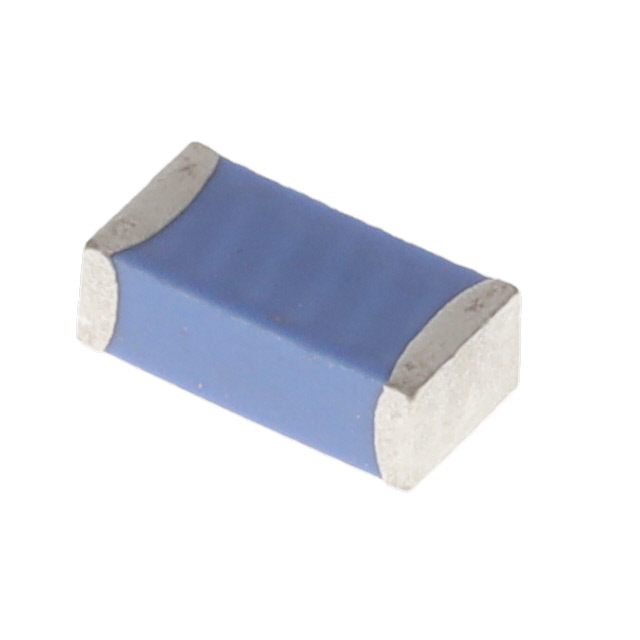

ANTENNAS 3 - 6GHZ UWB CHIP ANTENNA SMD
| Part | Frequency Range [Max] | Frequency Range [Min] | Termination | Applications | Frequency (Center/Band) | Antenna Type | Number of Bands | Gain | Frequency Group | Height (Max) [z] | Height (Max) [z] | Mounting Type | Height (Max) [Max] [z] | VSWR | Power - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 6 GHz | 3000 MHz | Solder | UWB | 4.5 GHz | Chip | 1 | 5.79 dBi | SHF (f > 4GHz) | 1.5 mm | 0.059 in | Surface Mount | |||
 Abracon LLC | 8.5 GHz | 6.24 GHz | Solder | UWB | 7.37 GHz | Chip | 1 | 4.5 dBic | SHF (f > 4GHz) | 1.1 mm | Surface Mount | 0.043 in | 2 | 5 W |
