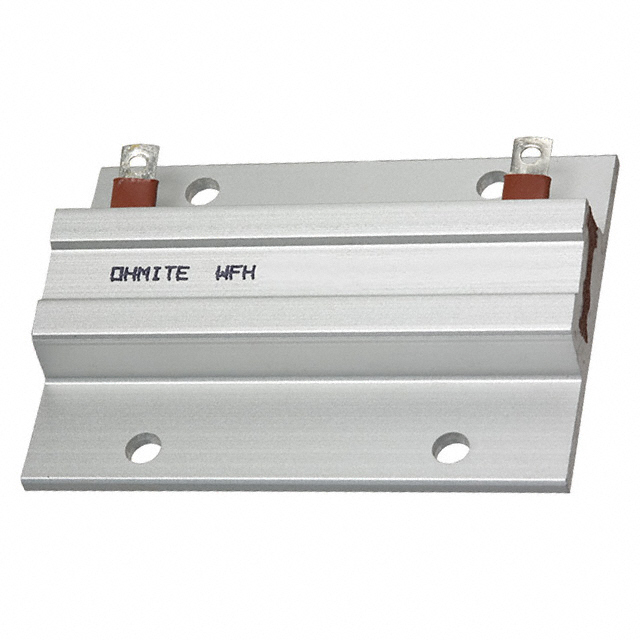

WFH Series

Manufacturer: Ohmite

Catalog

WIREWOUND RESISTORS - CHASSIS MOUNT 330WATT 2OHM 10% HIGH POWER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Resistance	Package / Case	Lead Style	Coating, Housing Type	Composition	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Feature	Temperature Coefficient [Min]	Temperature Coefficient [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Style	Lead Style
Ohmite WFH330L2R0KE	-40 C	220 °C	330 W	2 Ohms	Radial Rectangular Case	Solder Lugs	Aluminum	Wirewound	10 %	2.008 "	51 mm	280 mm	11.024 "	12.6 mm	0.496 in	Flanges
Ohmite WFH90L100JE	-40 C	220 °C	90 W	100 Ohms	Module Radial Rectangular Case	Quick Connects Solder Lugs	Aluminum	Wirewound	5 %	0.496 in 2.008 "	12.6 mm 51 mm	70 mm	2.756 "	12.6 mm	0.496 in	Flanges	50 ppm/°C	150 ppm/°C	51 mm	2.008 in	6.35 mm	0.25 "
Ohmite WFH330L250JE	-40 C	220 °C	330 W	250 Ohms	Radial Rectangular Case	Solder Lugs	Aluminum	Wirewound	5 %	2.008 "	51 mm	280 mm	11.024 "	12.6 mm	0.496 in	Flanges
Ohmite WFH160L250JE	-40 C	220 °C	160 W	250 Ohms	Radial Rectangular Case	Solder Lugs	Aluminum	Wirewound	5 %	2.008 "	51 mm	140 mm	5.512 "	12.6 mm	0.496 in	Flanges	50 ppm/°C	150 ppm/°C
