1986693 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK PLUG 15POS STR 3.5MM

Part	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Mating Finish	Current - UL	Material Flammability Rating	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Positions Per Level	Mounting Type	Type	Color	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Voltage - UL	Pitch [x]	Pitch [x]	Number of Levels	Contact Material	Features	Number of Positions	Termination Style	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Positions

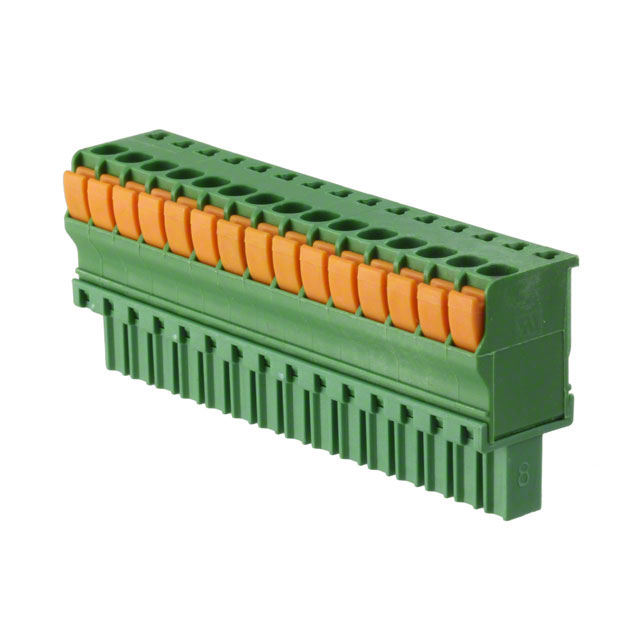

TE Connectivity Raychem Cable Protection 1-1986693-5	14 AWG	30 AWG	Tin	9 A	UL94 V-0	11.66 mm	0.459 in	-40 °C	110 °C	Polyamide (PA) Nylon	15	Free Hanging (In-Line)	Plug Female Sockets	Green	2 mm˛	0.05 mm˛	300 V	3.5 mm	0.138 in	1	Copper Alloy	Side Stacking	15	Push-In Spring Screwless - Leg Spring

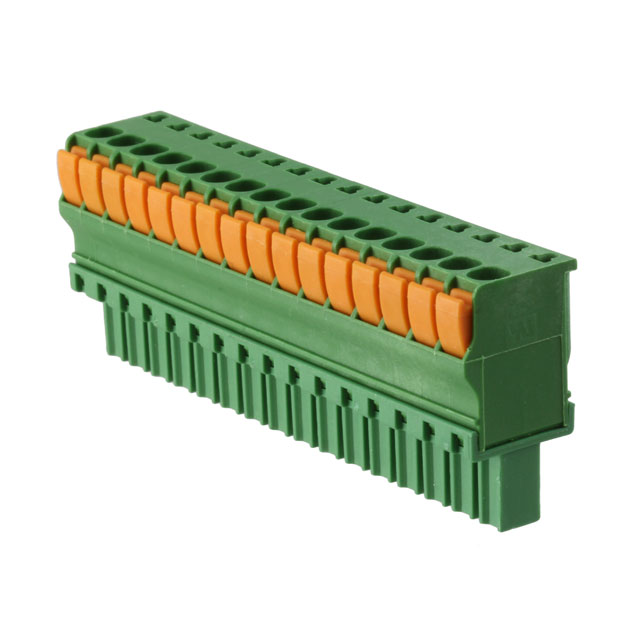

TE Connectivity Raychem Cable Protection 1-1986693-6	14 AWG	30 AWG	Tin	9 A	UL94 V-0	11.66 mm	0.459 in	-40 °C	110 °C	Polyamide (PA) Nylon	16	Free Hanging (In-Line)	Plug Female Sockets	Green			300 V	3.5 mm	0.138 in	1	Copper Alloy	Side Stacking		Push-In Spring Screwless - Leg Spring	0.05 mm²	2 mm²	16

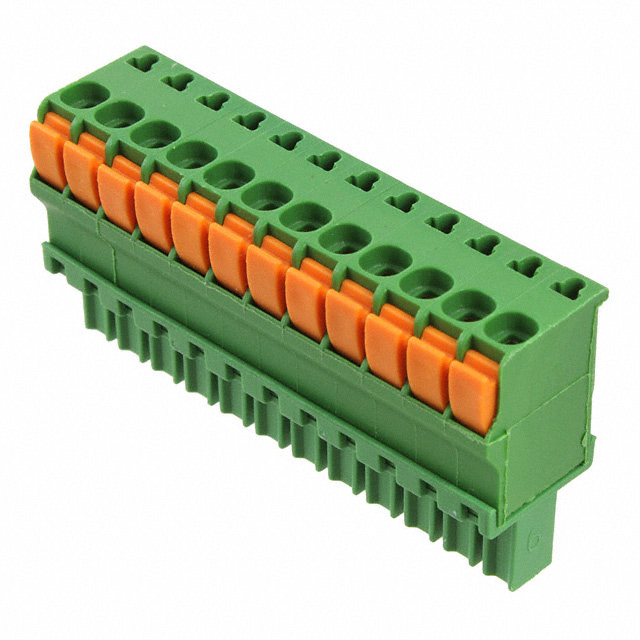

TE Connectivity Raychem Cable Protection 1-1986693-2	14 AWG	30 AWG	Tin	9 A	UL94 V-0	11.66 mm	0.459 in	-40 °C	110 °C	Polyamide (PA) Nylon	12	Free Hanging (In-Line)	Plug Female Sockets	Green	2 mm˛	0.05 mm˛	300 V	3.5 mm	0.138 in	1	Copper Alloy	Side Stacking	12	Push-In Spring Screwless - Leg Spring

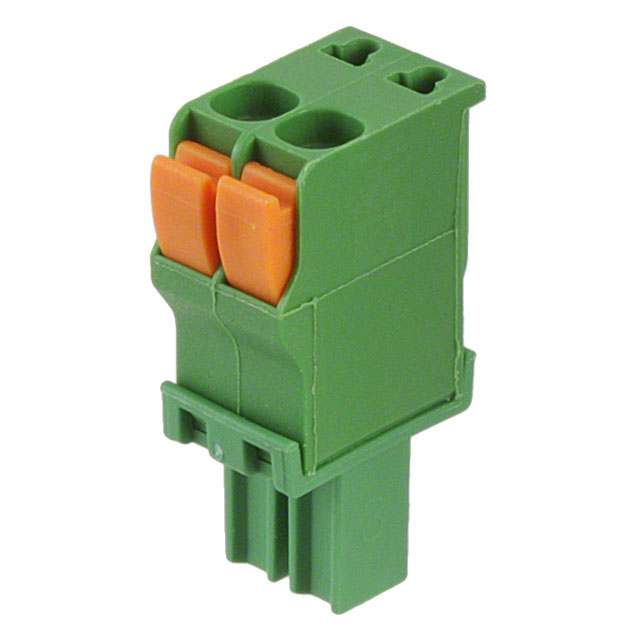

TE Connectivity Raychem Cable Protection 1986693-2	14 AWG	30 AWG	Tin	9 A	UL94 V-0	11.66 mm	0.459 in	-40 °C	110 °C	Polyamide (PA) Nylon	2	Free Hanging (In-Line)	Plug Female Sockets	Green			300 V	3.5 mm	0.138 in	1	Copper Alloy	Side Stacking	2	Push-In Spring Screwless - Leg Spring	0.05 mm²	2 mm²

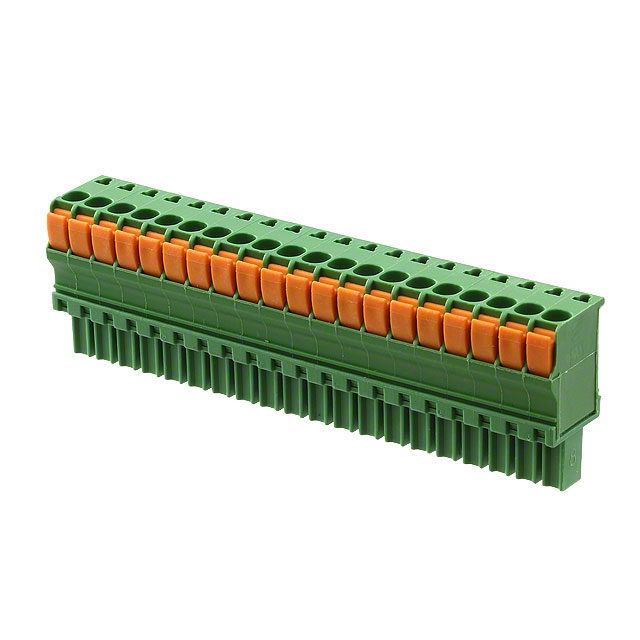

TE Connectivity Raychem Cable Protection 2-1986693-0	14 AWG	30 AWG	Tin	9 A	UL94 V-0	11.66 mm	0.459 in	-40 °C	110 °C	Polyamide (PA) Nylon	20	Free Hanging (In-Line)	Plug Female Sockets	Green			300 V	3.5 mm	0.138 in	1	Copper Alloy	Side Stacking	20	Push-In Spring Screwless - Leg Spring	0.05 mm²	2 mm²

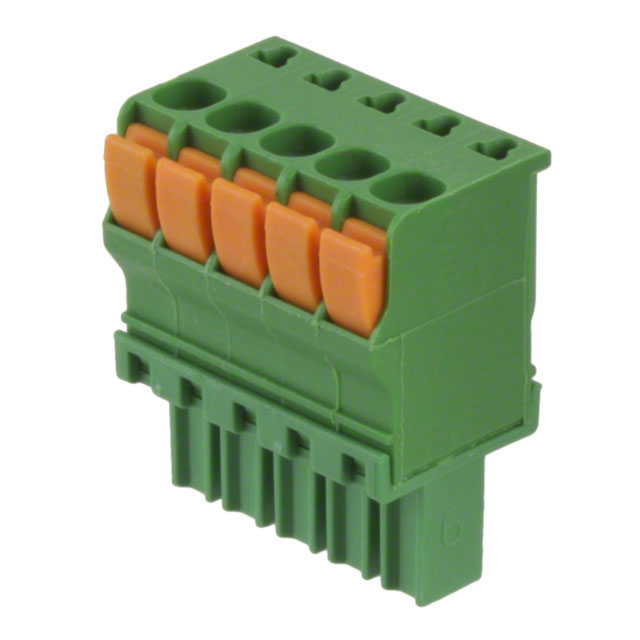

TE Connectivity Raychem Cable Protection 1986693-5	14 AWG	30 AWG	Tin	9 A	UL94 V-0	11.66 mm	0.459 in	-40 °C	110 °C	Polyamide (PA) Nylon	5	Free Hanging (In-Line)	Plug Female Sockets	Green			300 V	3.5 mm	0.138 in	1	Copper Alloy	Side Stacking		Push-In Spring Screwless - Leg Spring	0.05 mm²	2 mm²

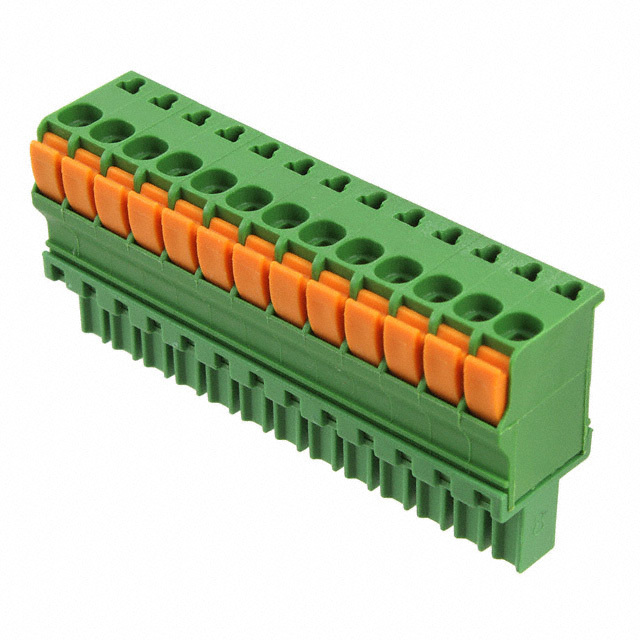

TE Connectivity Raychem Cable Protection 1-1986693-3	14 AWG	30 AWG	Tin	9 A	UL94 V-0	11.66 mm	0.459 in	-40 °C	110 °C	Polyamide (PA) Nylon	13	Free Hanging (In-Line)	Plug Female Sockets	Green	2 mm˛	0.05 mm˛	300 V	3.5 mm	0.138 in	1	Copper Alloy	Side Stacking	13	Push-In Spring Screwless - Leg Spring

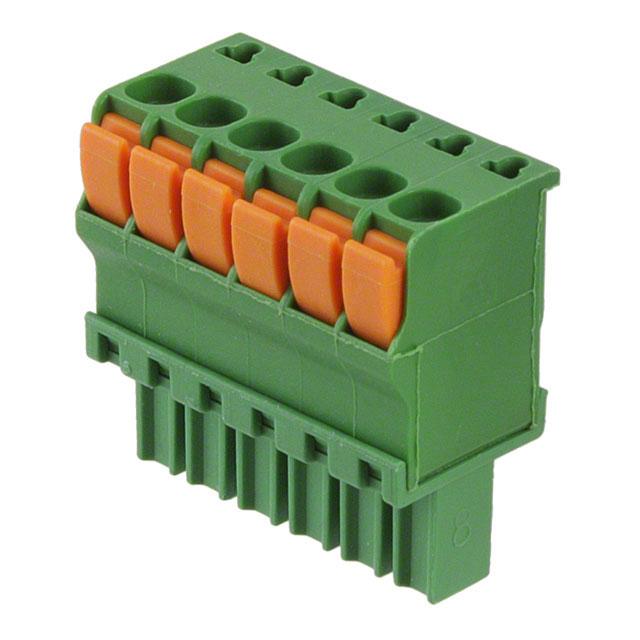

TE Connectivity Raychem Cable Protection 1986693-6	14 AWG	30 AWG	Tin	9 A	UL94 V-0	11.66 mm	0.459 in	-40 °C	110 °C	Polyamide (PA) Nylon	6	Free Hanging (In-Line)	Plug Female Sockets	Green	2 mm˛	0.05 mm˛	300 V	3.5 mm	0.138 in	1	Copper Alloy	Side Stacking	6	Push-In Spring Screwless - Leg Spring
TE Connectivity Raychem Cable Protection 1-1986693-0	14 AWG	30 AWG	Tin	9 A	UL94 V-0	11.66 mm	0.459 in	-40 °C	110 °C	Polyamide (PA) Nylon	10	Free Hanging (In-Line)	Plug Female Sockets	Green	2 mm˛	0.05 mm˛	300 V	3.5 mm	0.138 in	1	Copper Alloy	Side Stacking	10	Push-In Spring Screwless - Leg Spring
