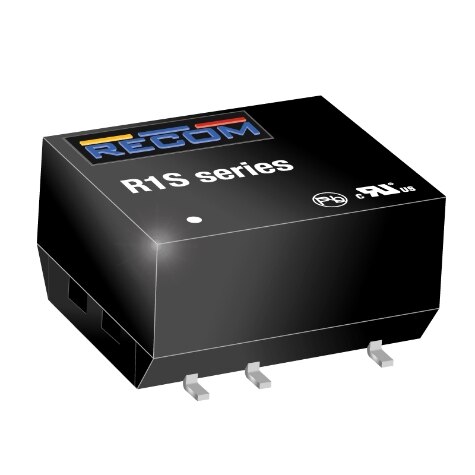

R1S Series
Manufacturer: Recom Power
Beta
⌘K
1W DC/DC-CONVERTER ECONOLINE SMD 1KV UNREG ROHS COMPLIANT: YES
| Part | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Type | Package / Case | Voltage - Isolation | Voltage - Output 1 | Efficiency | Applications | Mounting Type | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 16.5 V | -40 C | 100 °C | Isolated Module | 8-SMD Module | 1000 V | 9 V | 78 % | ITE (Commercial) | Surface Mount | 13.5 V | 111 mA | SCP | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | 1 |
Recom Power | 26.4 V | -40 C | 100 °C | Isolated Module | 12-SMD Module 10 Leads | 3000 V | 9 V | 78 % | ITE (Commercial) Medical | Surface Mount | 21.6 V | 111 mA | SCP | 10.7 mm | 15.2 mm | 0.28 " | 0.42 " | 7 mm | 0.6 " | 1 |
 Recom Power | 16.5 V | -40 C | 100 °C | Isolated Module | 12-SMD Module 10 Leads | 3000 V | 3.3 V | 75 % | ITE (Commercial) Medical | Surface Mount | 13.5 V | 303 mA | SCP | 10.7 mm | 15.2 mm | 0.28 " | 0.42 " | 7 mm | 0.6 " | 1 |
Recom Power | 5.5 V | -40 C | 100 °C | Isolated Module | 8-SMD Module | 1000 V | 12 V | 80 % | ITE (Commercial) | Surface Mount | 4.5 V | 84 mA | SCP | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | 1 |
Recom Power | 16.5 V | -40 C | 100 °C | Isolated Module | 12-SMD Module 10 Leads | 1000 V | 5 V | 78 % | ITE (Commercial) | Surface Mount | 13.5 V | 200 mA | SCP | 10.7 mm | 15.2 mm | 0.28 " | 0.42 " | 7 mm | 0.6 " | 1 |
Recom Power | 3.6 V | -40 C | 100 °C | Isolated Module | 8-SMD Module 5 Leads | 3000 V | 3.3 V | 75 % | ITE (Commercial) Medical | Surface Mount | 3 V | 303 mA | SCP | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | 1 |
Recom Power | 3.6 V | -40 C | 100 °C | Isolated Module | 12-SMD Module 10 Leads | 1000 V | 3.3 V | 75 % | ITE (Commercial) | Surface Mount | 3 V | 303 mA | SCP | 10.7 mm | 15.2 mm | 0.28 " | 0.42 " | 7 mm | 0.6 " | 1 |
 Recom Power | 5.5 V | -40 C | 100 °C | Isolated Module | 8-SMD Module 5 Leads | 1000 V | 24 V | 84 % | ITE (Commercial) | Surface Mount | 4.5 V | 42 mA | SCP | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | 1 |
Recom Power | 26.4 V | -40 C | 100 °C | Isolated Module | 8-SMD Module 5 Leads | 1000 V | 5 V | 78 % | ITE (Commercial) | Surface Mount | 21.6 V | 200 mA | SCP | 10.7 mm | 12.8 mm | 0.28 " | 0.42 " | 7 mm | 0.5 " | 1 |
 Recom Power | 26.4 V | -40 C | 100 °C | Isolated Module | 12-SMD Module 10 Leads | 3000 V | 5 V | 78 % | ITE (Commercial) Medical | Surface Mount | 21.6 V | 200 mA | SCP | 10.7 mm | 15.2 mm | 0.28 " | 0.42 " | 7 mm | 0.6 " | 1 |
