XGHB Series

Catalog

RFID TAG, 13.56 MHZ, 256 B, RECTANGULAR, EEPROM, OSISENSE XG SERIES

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Memory Type	Standards	Style	Size / Dimension [diameter]

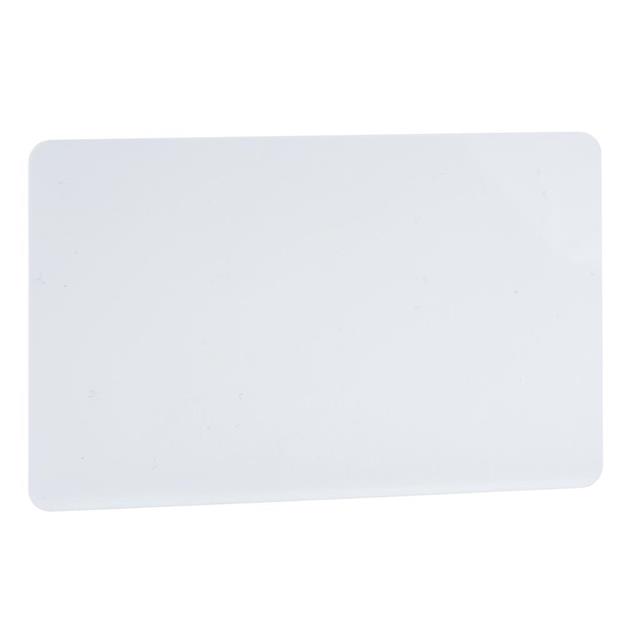

SCHNEIDER ELECTRIC XGHB90E340	85.5 mm	2.126 in	54 mm	3.366 "	Passive	50 °C	-25 °C	13.56 MHz	Read/Write	ISO 15693	Card
SCHNEIDER ELECTRIC XGHB440245	40 mm	1.575 "	40 mm	1.575 in	Passive	70 °C	-25 °C	13.56 MHz	Read/Write	ISO 15693	Encapsulated
SCHNEIDER ELECTRIC XGHB211345					Passive	70 °C	-25 °C	13.56 MHz	Read/Write	ISO 15693	Encapsulated
SCHNEIDER ELECTRIC XGHB440845	40 mm	1.575 "	40 mm	1.575 in	Passive	70 °C	-25 °C	13.56 MHz	Read/Write		Encapsulated

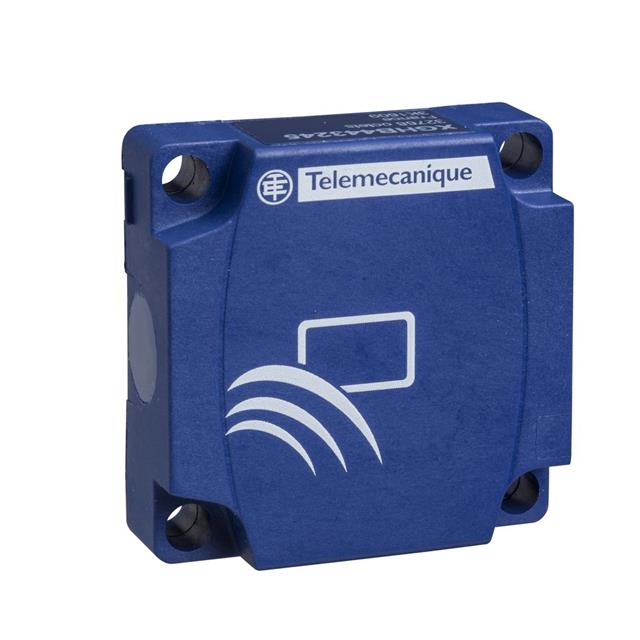

SCHNEIDER ELECTRIC XGHB441645	40 mm	1.575 "	40 mm	1.575 in	Passive	70 °C	-25 °C	13.56 MHz	Read/Write		Encapsulated
SCHNEIDER ELECTRIC XGHB443245	40 mm	1.575 "	40 mm	1.575 in	Passive	70 °C	-25 °C	13.56 MHz	Read/Write		Encapsulated

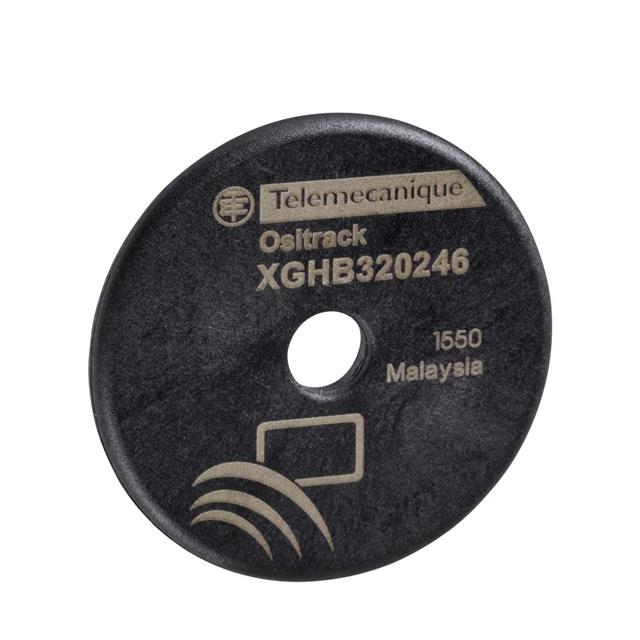

SCHNEIDER ELECTRIC XGHB320345				3 mm	Passive	85 °C	-25 °C	13.56 MHz	Read/Write	ISO 15693	Encapsulated	30 mm

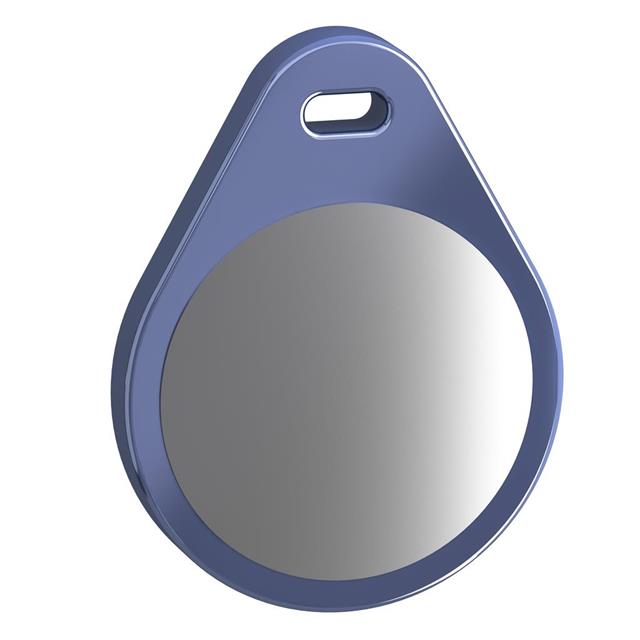

SCHNEIDER ELECTRIC XGHBPB3345	40 mm	1.22 in	31 mm	1.575 in	Passive	80 °C	-5 °C	13.56 MHz	Read/Write	ISO 15693	Key Fob

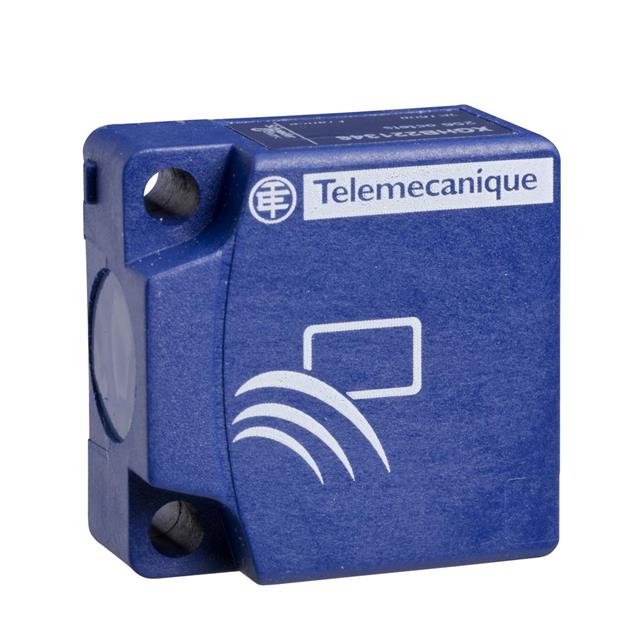

SCHNEIDER ELECTRIC XGHB221346	26 mm	1.024 in	26 mm	1.024 in	Passive	70 °C	-25 °C	13.56 MHz	Read/Write	ISO 15693	Encapsulated

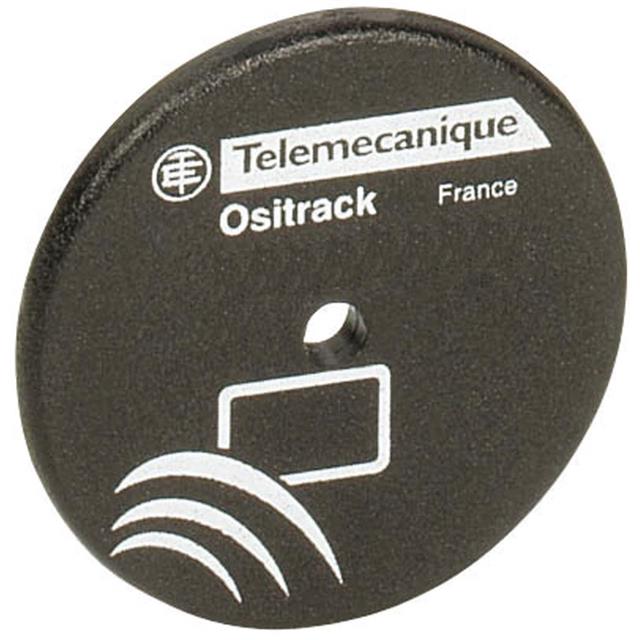

SCHNEIDER ELECTRIC XGHB520246					Passive	85 °C	-25 °C	13.56 MHz	Read/Write	ISO 15693	Encapsulated	50 mm
