21458-22 Series

Manufacturer: CNC Tech

Catalog

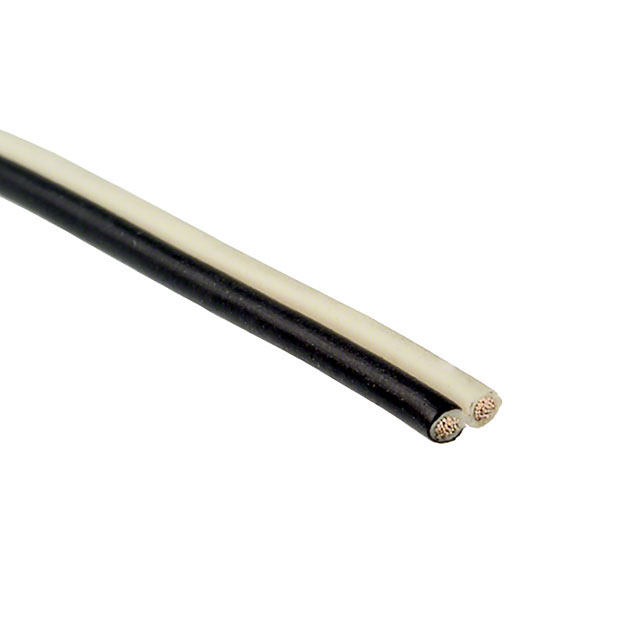

CABLE 2COND 22AWG BLK/WHITE 100'

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Length	Length	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Conductor Strand [custom]	Conductor Strand [diameter]	Voltage	Jacket Color	Length [x]	Length [x]	Cable Type	Wire Gauge	Number of Conductors	Jacket (Insulation) Material	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]
CNC Tech 21458-22-2-0500-0102-1-TS	0.126 in	3.2 mm	Copper Tinned	15.24 m 152.4 m	50 ft 500 ft	0.381 mm	0.015 in	17	0.0063 in	300 VDC	Black White	25 ft 100 ft	7.62 m 30.5 m	Multi-Conductor	22 AWG	2	Polyphenylene Ether (PPE)	UL Style 21458	-10 °C	80 °C
CNC Tech 21458-22-2-0500-0402-1-TS	0.118 in 0.126 in	3 mm 3.2 mm	Copper Tinned	15.24 m 152.4 m	50 ft 500 ft	0.381 mm	0.015 in	17	0.0063 in	300 VDC	Red White	25 ft	7.62 m	Multi-Conductor	22 AWG	2	Polyphenylene Ether (PPE)	UL Style 21458	-10 °C	80 °C	34	17

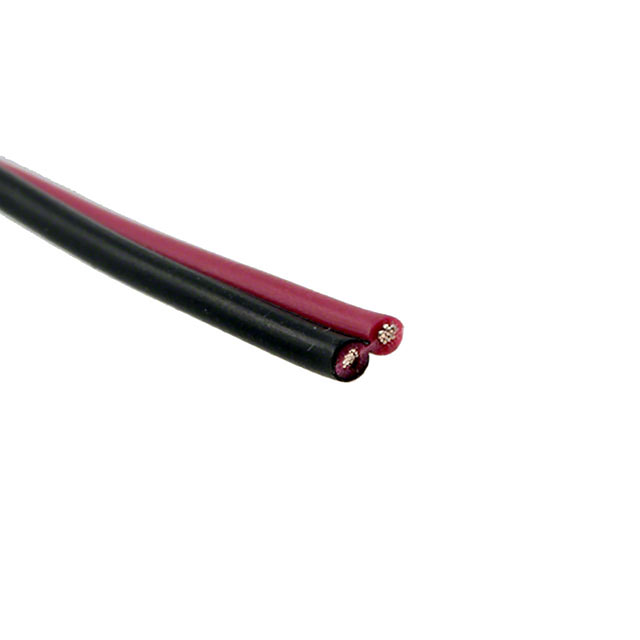

CNC Tech 21458-22-2-0500-0104-1-TS	0.126 in	3.2 mm	Copper Tinned	15.24 m 152.4 m	50 ft 500 ft	0.381 mm	0.015 in	17	0.0063 in	300 VDC	Black Red	25 ft 100 ft	7.62 m 30.5 m	Multi-Conductor	22 AWG	2	Polyphenylene Ether (PPE)	UL Style 21458	-10 °C	80 °C
