FTRA6171 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

OMNI PH PMT 617-7125MHZ WHT 5 DB

Part	Antenna Type	Ingress Protection	Termination	Height (Max) [z]	Height (Max) [z]	Applications	Gain	Frequency Group	VSWR	RF Family/Standard	Frequency (Center/Band)	Mounting Type	Power - Max [Max]	Frequency Range [Max]	Frequency Range [Min]	Number of Bands	Frequency Range
TE Connectivity AMP Connectors FTRA6171M5PW-001	Dome	IP67	N Type Female	96 mm	3.78 in	5G	4 dBi 4.2 dBi 4.5 dBic 5.5 dBi	Wide Band	1.5 2 2.5 2.7	Cellular	1.561 GHz 2.1975 GHz 3.75 GHz 5.2 GHz 6.5625 GHz 657.5 MHz 829 MHz	Panel Mount	100 W	1.695 GHz 2.7 GHz 4.2 GHz 6 GHz 7.125 GHz 698 MHz 960 MHz	1.427 GHz 1.695 GHz 3.3 GHz 4.4 GHz 6 GHz 617 MHz 698 MHz	7

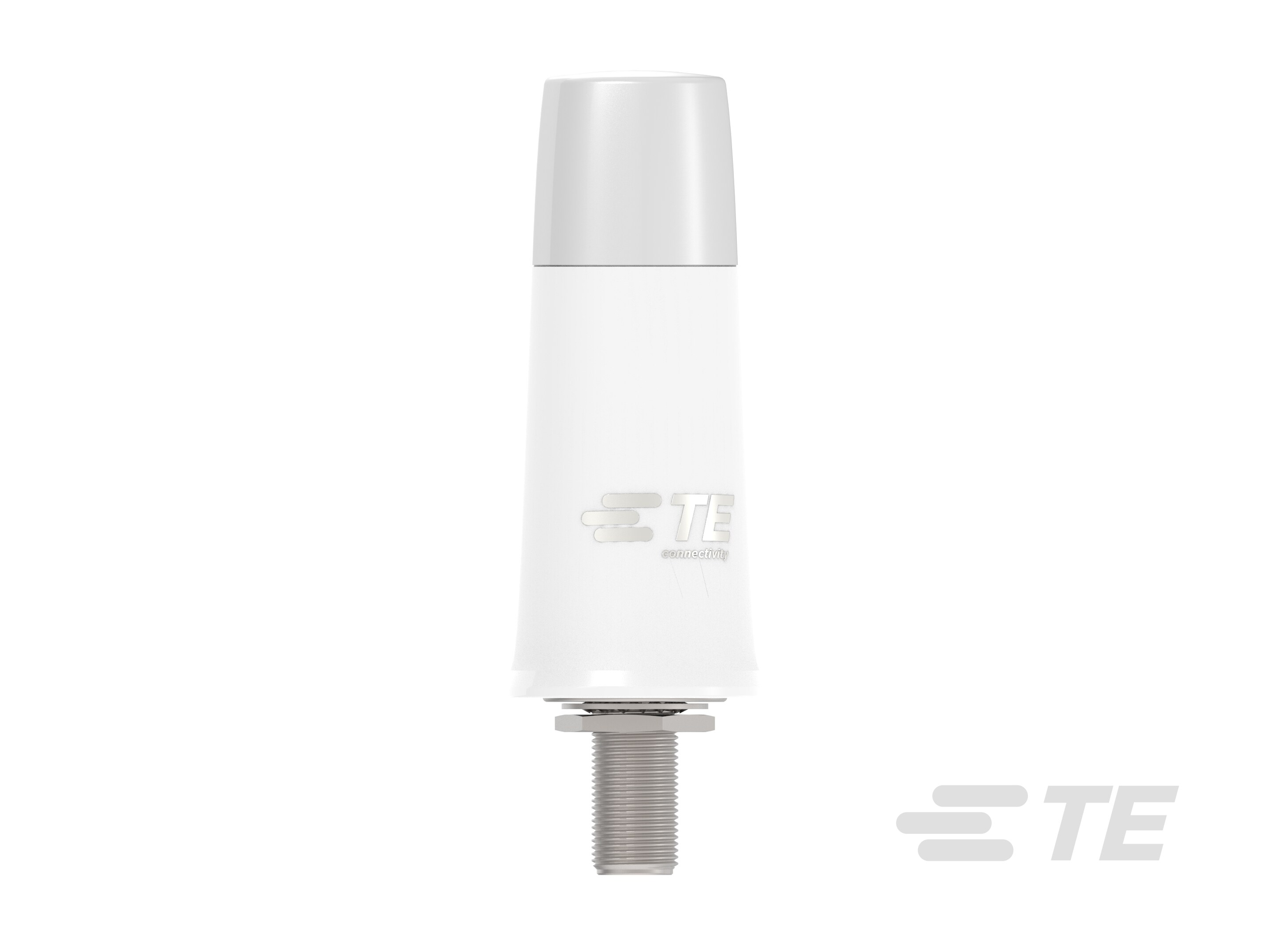

TE Connectivity AMP Connectors FTRA6171M6PWN-001	Dome	IP67	N Type Female	113.5 mm	4.469 in	5G	0.2 dBi 1.6 dBi 3.3 dBi 6.1 dBi 7.5 dBi 7.9 dBi 8.6 dBi	Wide Band	2 2.5 3.5	Cellular	1.561 GHz 2.1975 GHz 3.75 GHz 5.2 GHz 6.25 GHz 6.8125 GHz 788.5 MHz	Panel Mount				7	1.427 GHz 1.695 GHz 3.3 GHz 4.4 GHz 6 GHz 6.5 GHz 617 MHz
TE Connectivity AMP Connectors FTRA6171M6PWN-001	Dome	IP67	N Type Female	113.5 mm	4.469 in	5G	0.2 dBi 1.6 dBi 3.3 dBi 6.1 dBi 7.5 dBi 7.9 dBi 8.6 dBi	Wide Band	2 2.5 3.5	Cellular	1.561 GHz 2.1975 GHz 3.75 GHz 5.2 GHz 6.25 GHz 6.8125 GHz 788.5 MHz	Panel Mount				7	1.427 GHz 1.695 GHz 3.3 GHz 4.4 GHz 6 GHz 6.5 GHz 617 MHz
TE Connectivity AMP Connectors FTRA6171M6PBN-001	Dome	IP67	N Type Female	113.5 mm	4.469 in	5G	0.2 dBi 1.6 dBi 3.3 dBi 6.1 dBi 7.5 dBi 7.9 dBi 8.6 dBi	Wide Band	2 2.5 3.5	Cellular	1.561 GHz 2.1975 GHz 3.75 GHz 5.2 GHz 6.25 GHz 6.8125 GHz 788.5 MHz	Panel Mount				7	1.427 GHz 1.695 GHz 3.3 GHz 4.4 GHz 6 GHz 6.5 GHz 617 MHz
TE Connectivity AMP Connectors FTRA6171M5PB-001	Dome	IP67	N Type Female	96 mm	3.78 in	5G	4 dBi 4.2 dBi 4.5 dBic 5.5 dBi	Wide Band	1.5 2 2.5 2.7	Cellular	1.561 GHz 2.1975 GHz 3.75 GHz 5.2 GHz 6.5625 GHz 657.5 MHz 829 MHz	Panel Mount	100 W	1.695 GHz 2.7 GHz 4.2 GHz 6 GHz 7.125 GHz 698 MHz 960 MHz	1.427 GHz 1.695 GHz 3.3 GHz 4.4 GHz 6 GHz 617 MHz 698 MHz	7
TE Connectivity AMP Connectors FTRA6171M6PBN-001	Dome	IP67	N Type Female	113.5 mm	4.469 in	5G	0.2 dBi 1.6 dBi 3.3 dBi 6.1 dBi 7.5 dBi 7.9 dBi 8.6 dBi	Wide Band	2 2.5 3.5	Cellular	1.561 GHz 2.1975 GHz 3.75 GHz 5.2 GHz 6.25 GHz 6.8125 GHz 788.5 MHz	Panel Mount				7	1.427 GHz 1.695 GHz 3.3 GHz 4.4 GHz 6 GHz 6.5 GHz 617 MHz
TE Connectivity AMP Connectors FTRA6171M5PB-001	Dome	IP67	N Type Female	96 mm	3.78 in	5G	4 dBi 4.2 dBi 4.5 dBic 5.5 dBi	Wide Band	1.5 2 2.5 2.7	Cellular	1.561 GHz 2.1975 GHz 3.75 GHz 5.2 GHz 6.5625 GHz 657.5 MHz 829 MHz	Panel Mount	100 W	1.695 GHz 2.7 GHz 4.2 GHz 6 GHz 7.125 GHz 698 MHz 960 MHz	1.427 GHz 1.695 GHz 3.3 GHz 4.4 GHz 6 GHz 617 MHz 698 MHz	7
TE Connectivity AMP Connectors FTRA6171M5PW-001	Dome	IP67	N Type Female	96 mm	3.78 in	5G	4 dBi 4.2 dBi 4.5 dBic 5.5 dBi	Wide Band	1.5 2 2.5 2.7	Cellular	1.561 GHz 2.1975 GHz 3.75 GHz 5.2 GHz 6.5625 GHz 657.5 MHz 829 MHz	Panel Mount	100 W	1.695 GHz 2.7 GHz 4.2 GHz 6 GHz 7.125 GHz 698 MHz 960 MHz	1.427 GHz 1.695 GHz 3.3 GHz 4.4 GHz 6 GHz 617 MHz 698 MHz	7
