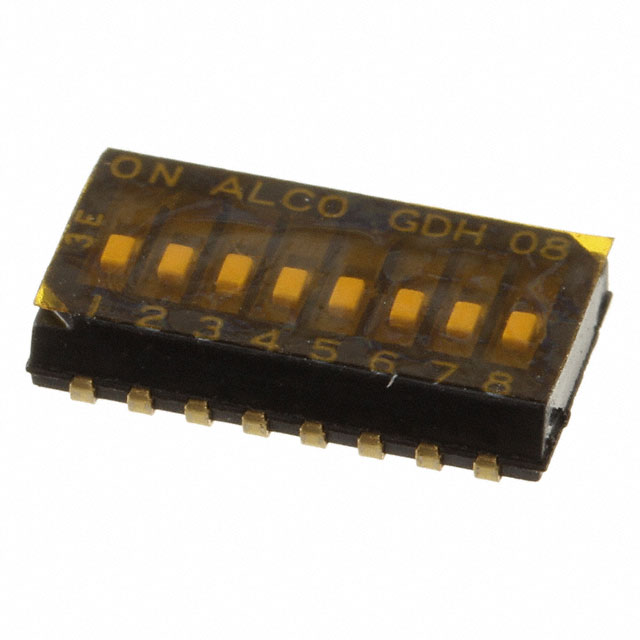

ALCOSWITCH DIP GDH Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Body Material	Mechanical Life	Electrical Life	Length	Length	Number of Positions	Features	Actuator Level	Circuit	Voltage Rating	Actuator Type	Height Above Board	Height Above Board	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Material	Mounting Type	Pitch	Pitch	Pitch	Contact Finish	Termination Style	Height Above Board [z]	Height Above Board [z]	Pitch
TE Connectivity AMP Connectors GDH08SA04	Polyphenylene Sulfide (PPS)	1000 Cycles	1000 Cycles	0.444 in	11.28 mm	8	Tape Seal	Flush Recessed	SPST	24 VDC	Slide (Standard)	0.093 in	2.35 mm	85 °C	-30 ░C	25 mA	Copper Alloy	Surface Mount	0.05 "	1.27 mm	Half	Gold	J Lead
TE Connectivity AMP Connectors 1571999-4	Polyphenylene Sulfide (PPS)	1000 Cycles	1000 Cycles	0.276 in	7 mm	2		Raised	SPST	24 VDC	Piano			85 °C	-30 ░C	25 mA	Copper Alloy	Right Angle Surface Mount		2.54 mm		Gold	Gull Wing	0.273 in	6.93 mm	0.1 "
TE Connectivity AMP Connectors 1571999-1						2		Raised	SPST	24 VDC	Piano			85 °C	-30 ░C	25 mA	Copper Alloy	Right Angle Through Hole		2.54 mm		Gold	PC Pin	0.287 in	7.3 mm	0.1 "
TE Connectivity AMP Connectors GDH04SATR04						4	Tape Seal	Flush Recessed	SPST	24 VDC	Slide (Standard)	0.093 in	2.35 mm	85 °C	-30 ░C	25 mA	Copper Alloy	Surface Mount	0.05 "	1.27 mm	Half	Gold	J Lead
TE Connectivity AMP Connectors 1571983-3						2	Tape Seal	Flush Recessed	SPST	24 VDC	Slide (Standard)		2.3 mm	85 °C	-30 ░C	25 mA	Copper Alloy	Surface Mount	0.05 "	1.27 mm	Half	Gold	Gull Wing	0.091 "
TE Connectivity AMP Connectors GDH06SA04						6	Tape Seal	Flush Recessed	SPST	24 VDC	Slide (Standard)	0.093 in	2.35 mm	85 °C	-30 ░C	25 mA	Copper Alloy	Surface Mount	0.05 "	1.27 mm	Half	Gold	J Lead
TE Connectivity AMP Connectors GDH08SATR04						8	Tape Seal	Flush Recessed	SPST	24 VDC	Slide (Standard)	0.093 in	2.35 mm	85 °C	-30 ░C	25 mA	Copper Alloy	Surface Mount	0.05 "	1.27 mm	Half	Gold	J Lead
TE Connectivity AMP Connectors 1-1571983-0	Polyphenylene Sulfide (PPS)	1000 Cycles	1000 Cycles	0.444 in	11.28 mm	8	Tape Seal	Flush Recessed	SPST	24 VDC	Slide (Standard)		2.3 mm	85 °C	-30 ░C	25 mA	Copper Alloy	Surface Mount	0.05 "	1.27 mm	Half	Gold	Gull Wing	0.091 "
TE Connectivity AMP Connectors 1571983-8						6	Tape Seal	Flush Recessed	SPST	24 VDC	Slide (Standard)		2.3 mm	85 °C	-30 ░C	25 mA	Copper Alloy	Surface Mount	0.05 "	1.27 mm	Half	Gold	Gull Wing	0.091 "
