MM08 Series
Manufacturer: SICK, Inc.
Beta
⌘K
SENSOR PROX 60MM IP67 CYLINDER
| Part | Shielding | Voltage - Supply [Min] | Voltage - Supply [Max] | Output Type | Output Type | Ingress Protection | Package / Case | Indicator | Response Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Material - Body | Sensing Distance | Sensing Distance | Frequency | Must Release | Actuator Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

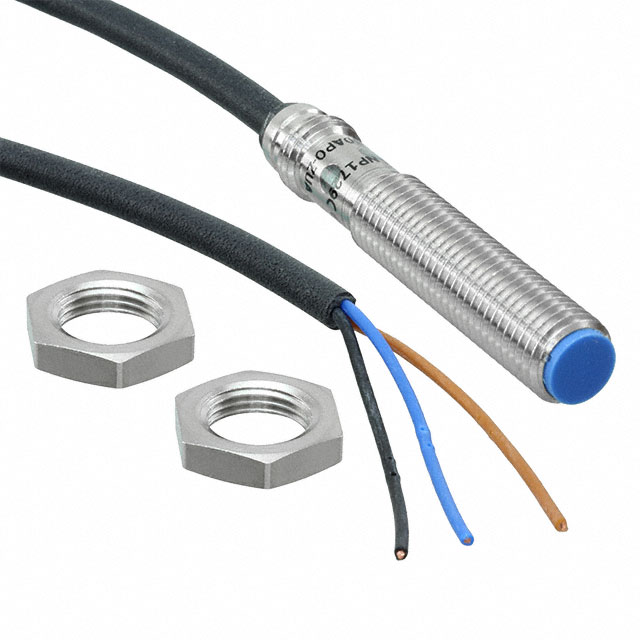

 SICK, Inc. | Unshielded | 10 VDC | 30 VDC | PNP-NO | 3 | IP67 | Cylinder Threaded - M8 | LED | 1 kHz | -25 °C | 75 ░C | Connector | Nickel-Plated Brass | 60 mm | 2.362 in | |||
 SICK, Inc. | 10 VDC | 30 VDC | Cylinder Threaded - M8 | -25 °C | 75 ░C | Connector | 1 kHz | 60 mm | Magnet | |||||||||
SICK, Inc. | 10 VDC | 30 VDC | NC | Cylinder Threaded - M8 | -25 °C | 75 ░C | Connector | 1 kHz | 60 mm | Magnet | ||||||||

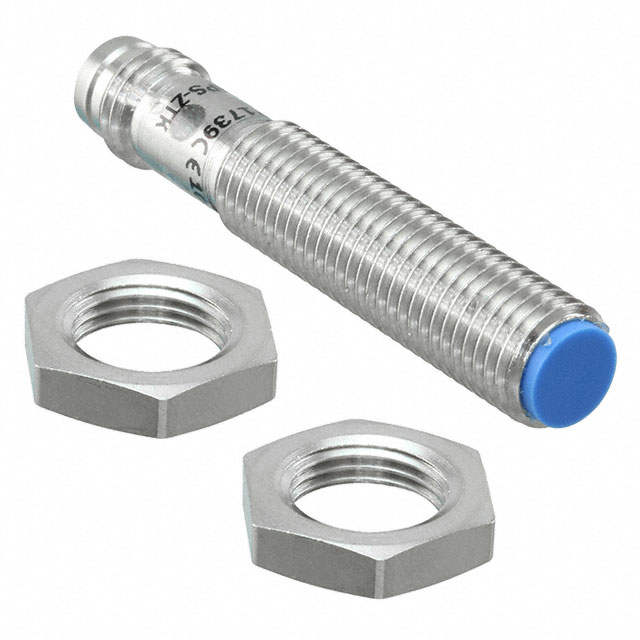

 SICK, Inc. | Unshielded | 10 VDC | 30 VDC | PNP-NC | 3 | IP67 | Cylinder Threaded - M8 | LED | 1 kHz | -25 °C | 75 ░C | Cable Leads | Nickel-Plated Brass | 60 mm | 2.362 in |
