FG Series

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - LEADED RAD 50V 1UF X5R 10% LS:2.5MM

...

Part	Temperature Coefficient	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Voltage - Rated	Package / Case	Lead Style	Lead Spacing	Lead Spacing	Applications	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

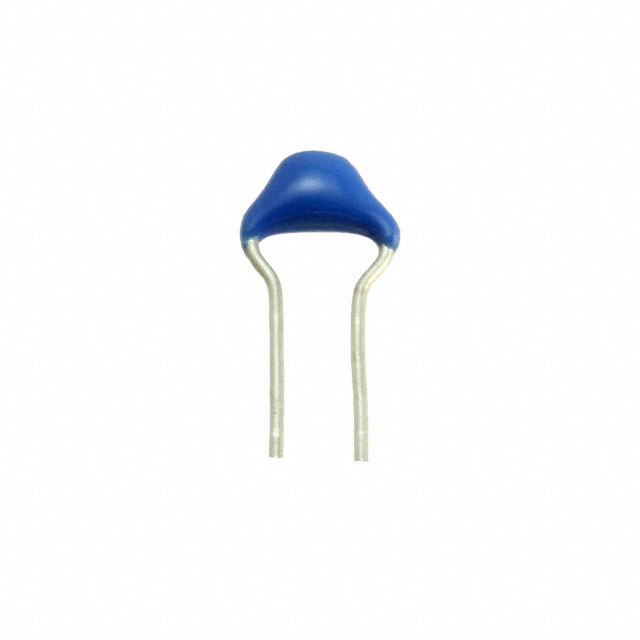

TDK Corporation FG18X5R1H105KRT00	X5R	10 %	-55 C	85 °C	0.098 in	2.5 mm	4 mm	0.157 in	Through Hole	0.217 "	5.5 mm	1 µF	50 VDC	Radial	Formed Leads	2.5 mm	0.098 in	General Purpose
TDK Corporation FG18X5R1E225KRT00	X5R	10 %	-55 C	85 °C	0.098 in	2.5 mm	4 mm	0.157 in	Through Hole	0.217 "	5.5 mm	2.2 µF	25 VDC	Radial	Formed Leads	2.5 mm	0.098 in	General Purpose

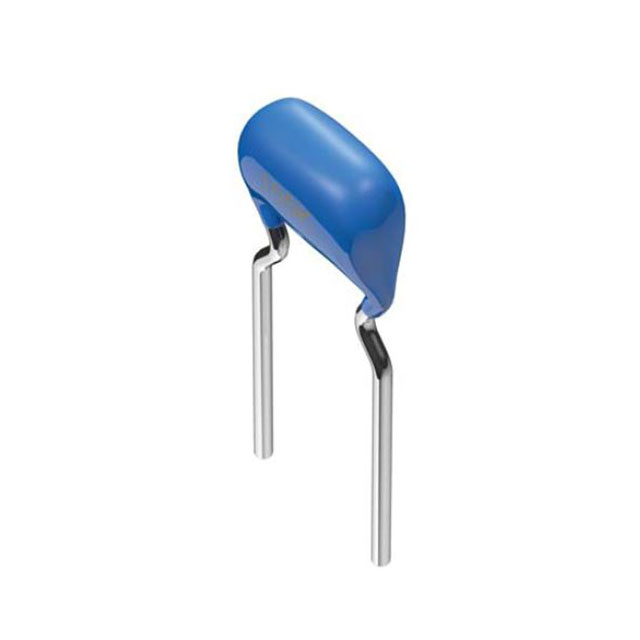

TDK Corporation FG20X7R2E224KNT06	X7R	10 %	-55 C	125 °C	0.157 "	4 mm	5.5 mm	0.217 in	Through Hole	0.276 in	7 mm	0.22 µF	250 V	Radial	Formed Leads - Kinked	5 mm	0.197 "	General Purpose
TDK Corporation FG26C0G2J103JNT06	C0G NP0	5 %	-55 C	125 °C	0.138 in	3.5 mm	5.5 mm	0.217 in	Through Hole	0.236 "		10000 pF	630 V	Radial	Formed Leads - Kinked	5 mm	0.197 "	General Purpose	6 mm
TDK Corporation FG18C0G2A070DNT06	C0G NP0	0.5 pF	-55 C	125 °C	0.098 in	2.5 mm	4 mm	0.157 in	Through Hole	0.217 "	5.5 mm	7 pF	100 V	Radial	Formed Leads	2.5 mm	0.098 in	General Purpose
TDK Corporation FG23X7S2A106KRT06	X7S	10 %	-55 C	125 °C	0.217 in	5.5 mm	8.5 mm	0.335 "	Through Hole			10 µF	100 V	Radial	Formed Leads - Kinked	5 mm	0.197 "	General Purpose		11 mm	0.433 in
TDK Corporation FG28C0G2A271JNT06	C0G NP0	5 %	-55 C	125 °C	0.098 in	2.5 mm	4 mm	0.157 in	Through Hole	0.217 "	5.5 mm	270 pF	100 V	Radial	Formed Leads - Kinked	5 mm	0.197 "	General Purpose
TDK Corporation FG28X7R1H334KRT06	X7R	10 %	-55 C	125 °C	0.098 in	2.5 mm	4 mm	0.157 in	Through Hole	0.217 "	5.5 mm	0.33 µF	50 VDC	Radial	Formed Leads - Kinked	5 mm	0.197 "	General Purpose
TDK Corporation FG18X5R1E106MRT06	X5R	20 %	-55 C	85 °C	0.098 in	2.5 mm	4 mm	0.157 in	Through Hole	0.217 "	5.5 mm	10 µF	25 VDC	Radial	Formed Leads	2.5 mm	0.098 in	General Purpose
TDK Corporation FG22C0G2J473JNT00	C0G NP0	5 %	-55 C	125 °C	0.177 "	4.5 mm	7.5 mm	0.295 "	Through Hole	0.335 "	8.5 mm		630 V	Radial	Formed Leads - Kinked	5 mm	0.197 "	General Purpose
